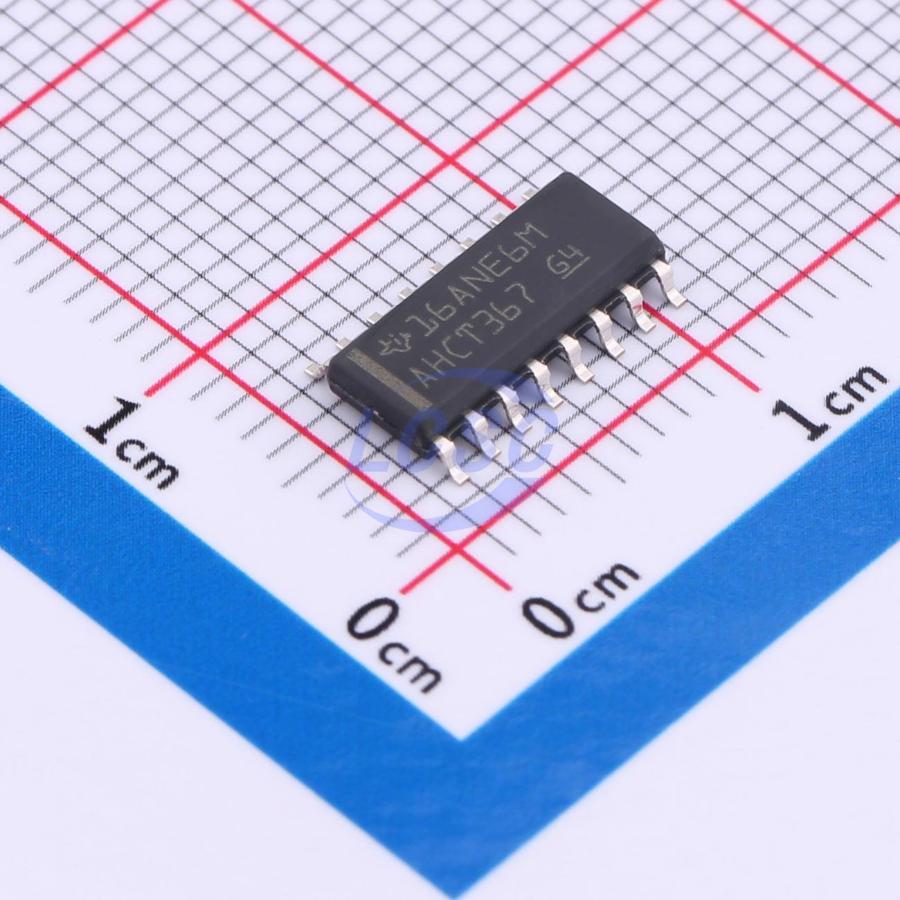

SN74AHCT367DR

4.5V~5.5V 2 3.5ns@5V,50pF SOIC-16 Buffers, Drivers, Receivers, Transceivers RoHS

SOIC-16ROHS3 CompliantActive

Hex Buffer and Line Driver with 3-State Output

Manufacturer: TI
Manufacturer part #: SN74AHCT367DR
Store part #: C544581
Package / case: SOIC-16
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,032 in stock

#C544581

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹79.05	₹79.05
10+	₹67.17	₹671.70
30+	₹58.97	₹1,769.10
100+	₹52.05	₹5,205.00
500+	₹49.89	₹24,945.00
1,000+	₹48.59	₹48,590.00

Quantity (min 1)

1 × ₹79.05

₹79.05

excl. GST

₹93.28 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SN74AHCT367DR

₹79.05 for 1 + GST

Specifications

Voltage - Supply: 4.5V~5.5V
Output Type: Tri-State
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 40uA
Function: Output enable;Level shifting;Edge rate controllable
Current - Output High(IOH): 8mA
Series: 74AHCT
Current - Output Low(IOL): 8mA
Number of Bits per Element: 2;4
Channel Type: Unidirectional
Number of Elements: 2
Propagation Delay: 3.5ns@5V,50pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.622 g

Overview

The SN74AHCT367 device is designed specifically to improve both the performance and density of 3- state memory address drivers, clock drivers, and bus- oriented receivers and transmitters.

Applications

Telecom Infrastructure
TVs
Set Top Boxes
Network Switches
Wireless Infrastructure
Electronic Points of Sale

Key features

Inputs are TTL- Voltage Compatible
True Outputs
Latch- Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22
2000- V Human- Body Model
200- V Machine Model
2000- V Charged- Device Model

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
CD74HCT367M96#C2675805TI · SOIC-16	TI	SOIC-16	40	₹73.96 · 40 in stock	View
74HCT368D,653#C547614Nexperia · SOP-16	Nexperia	SOP-16	On request	Price on request	Quote
SN74LS367ADR#C7655TI · SOIC-16	TI	SOIC-16	On request	Price on request	Quote
