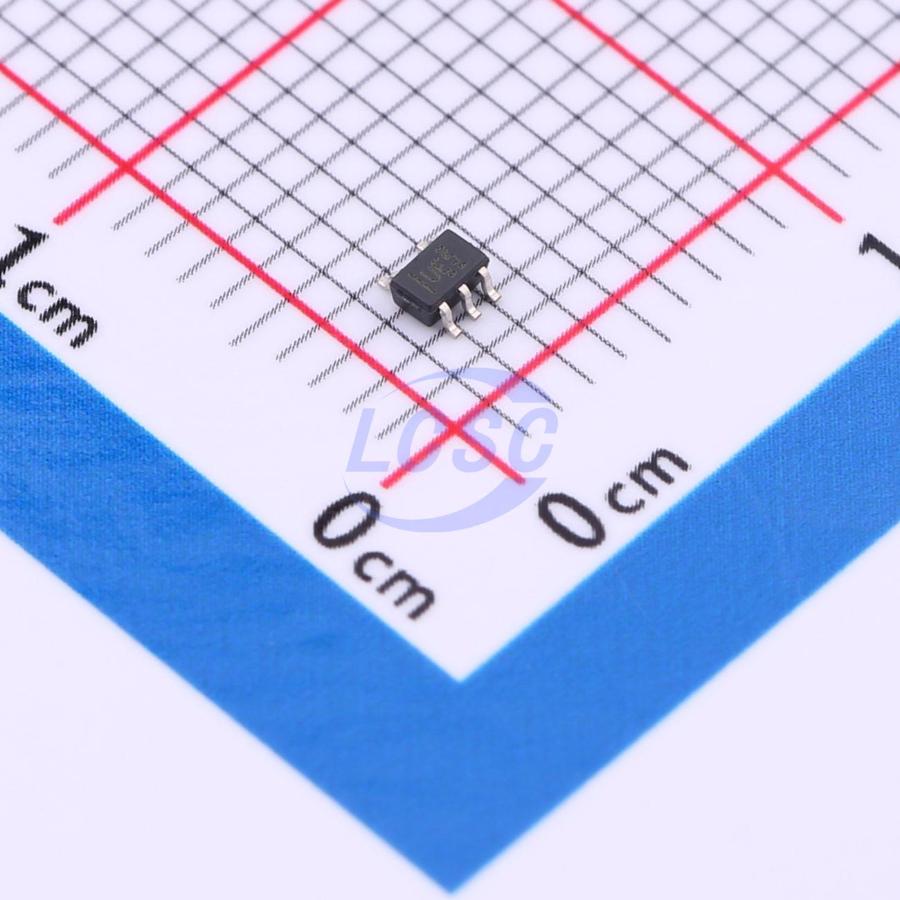

SN74AUC1G08DCKR

800mV~2.7V 2ns@2.5V,30pF 10uA SC-70-5 Gates and Inverters RoHS

SC-70-5ROHS3 CompliantActive

Single 2-Input Positive-AND Gate

Manufacturer: TI
Manufacturer part #: SN74AUC1G08DCKR
Store part #: C2863707
Package / case: SC-70-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,230 in stock

#C2863707

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
5+	₹38.62	₹193.10
50+	₹30.32	₹1,516.00
150+	₹26.27	₹3,940.50
500+	₹22.65	₹11,325.00
3,000+	₹21.66	₹64,980.00
6,000+	₹21.06	₹1,26,360.00

Quantity (min 5, multiples of 5)

5 × ₹38.62

₹193.10

excl. GST

₹227.86 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74AUC1G08DCKR

₹193.10 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Logic Family: 74AUC Series
Voltage - Supply: 800mV~2.7V
Output Logic Level - Low: 600mV
Propagation Delay: 2ns@2.5V,30pF
Features: Local shutdown mode;Rear drive protection
Input Logic Level - High: 1.7V
Operating Temperature: -40℃~+85℃
Output Logic Level - High: 1.8V
Quiescent Current(Iq): 10uA
Number of Channels: 1;2
Current - Output High(IOH): 9mA
Current - Output Low(IOL): 9mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.158 g

Overview

This single 2-input positive-AND gate is operational at 0.8 V to 2.7 V VCC, but is designed specifically for 1.65 V to 1.95 V VCC operation. The SN74AUC1G08 device performs the Boolean function Y = A • B or Y = A(overline) + B(overline) in positive logic. NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Applications

AV Receiver
Audio Dock: Portable
Blu-Ray Player and Home Theater
Embedded PC
MP3 Player/Recorder (Portable Audio)
Personal Digital Assistant (PDA)
Power: Telecom/Server AC/DC Supply: Single
Controller: Analog and Digital
Solid State Drive (SSD): Client and Enterprise
TV: LCD/Digital and High-Definition (HDTV)
Tablet: Enterprise
Video Analytics: Server
Wireless Headset, Keyboard, and Mouse

Key features

Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)
Available in the Texas Instruments NanoFree™ Package Optimized for 1.8-V Operation and Is 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation
Supports Partial-Power-Down Mode and Back Drive Protection
Sub-1-V Operable
Max tpd of 2.4 ns at 1.8 V
Low Power Consumption, 10-μA Max ICC
±8-mA Output Drive at 1.8 V
