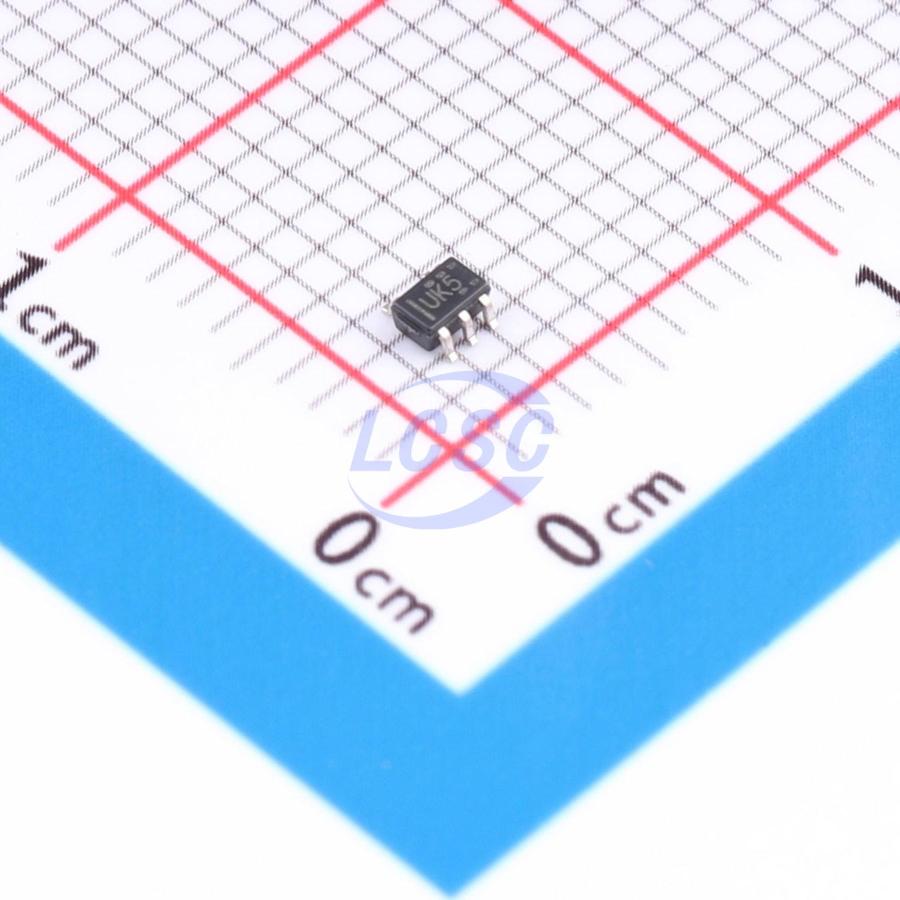

SN74AUC1G240DCKR

0.8V~2.7V 1 1 1ns@1.8V,15pF SC-70-5 Buffers, Drivers, Receivers, Transceivers RoHS

SC-70-5ROHS3 CompliantActive

Manufacturer: TI
Manufacturer part #: SN74AUC1G240DCKR
Store part #: C2675738
Package / case: SC-70-5
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

995 in stock

#C2675738

Stock & price checked 31 h ago

Quantity	Unit price	Pack price
5+	₹21.98	₹109.90
50+	₹21.42	₹1,071.00
150+	₹21.05	₹3,157.50
500+	₹20.67	₹10,335.00

Quantity (min 5, multiples of 5)

5 × ₹21.98

₹109.90

excl. GST

₹129.68 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74AUC1G240DCKR

₹109.90 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply: 0.8V~2.7V
Output Type: Tri-State
Operating Temperature: -40℃~+85℃
Quiescent Supply Current: 10uA
Function: Power-off isolation;Output enable
Current - Output High(IOH): 9mA
Series: 74AUC
Current - Output Low(IOL): 9mA
Number of Bits per Element: 1
Number of Elements: 1
Propagation Delay: 1ns@1.8V,15pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.153 g

Overview

The SN74AUC1G240 is a single-channel line driver with one three-state output. This bus buffer gate is specifically designed for a 1.65V to 1.95V VCC operating range but can operate across a VCC range of 0.8V to 2.7V. When the output enable (OE) input is high, the output is disabled. To ensure a high-impedance state during power-up or power-down, OE\ should be connected to VCC through a pullup resistor; the minimum value of this resistor is determined by the current-sinking capability of the driver. The device is fully specified for partial-power-down applications using Ioff. The Ioff circuit disables the output, thereby preventing damaging current backflow through the device when it is powered down.

Key features

Texas Instruments NanoFree™ package
Optimized for 1.8V operation with 3.6V I/O voltage tolerance for mixed-mode signal operation
Ioff supports partial power-down mode operation
Operable below 1V
Maximum tpd of 2.5ns (at 1.8V)
Low power consumption: 10μA maximum ICC
±8mA output drive (at 1.8V)
High-speed operation
Up to 350 MHz at 2.5V
Up to 300 MHz at 1.8V
Up to 250 MHz at 1.5V
Up to 100 MHz at 0.8V
Latch-up performance exceeds 100mA (per JESD 78 Class II)
ESD protection exceeds JESD 22 requirements
2000-V Human Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged Device Model (C101)
