TI
SN74LVC1G08DCKR1.65V~5.5V 3.6ns@3.3V 10uA SC-70-5 Gates and Inverters RoHS
From
₹7.06
3,30,040 in stock
TIDatasheet (PDF)

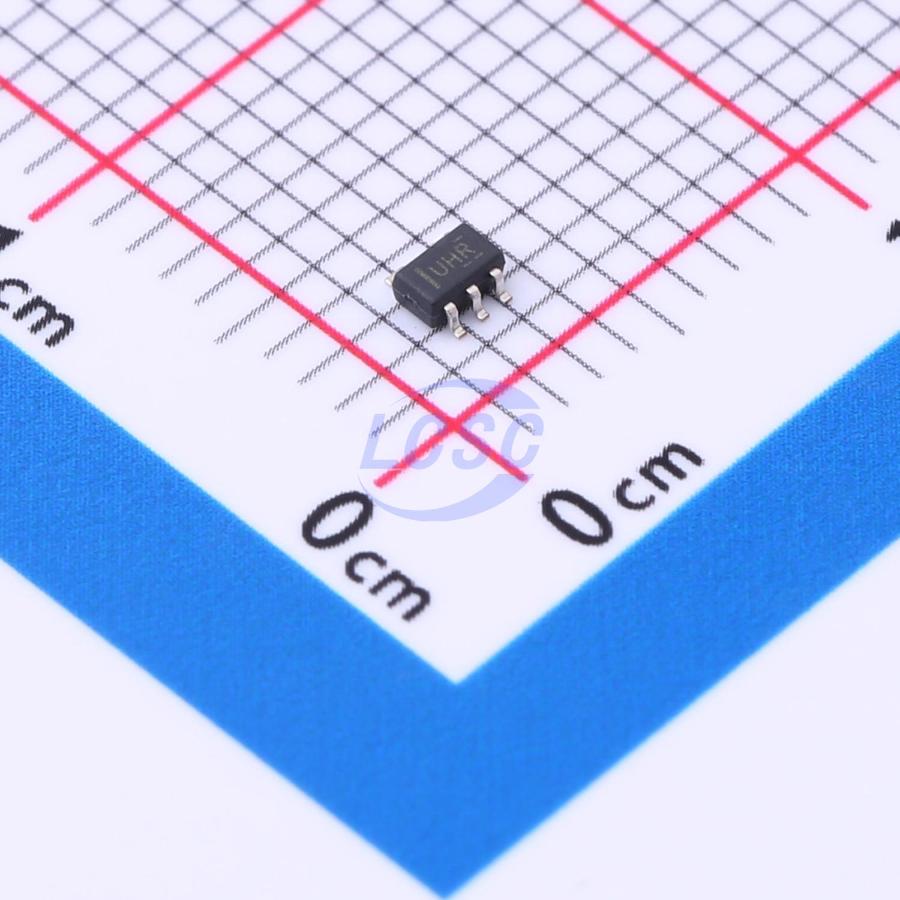

SN74AUC1G86DCKR
XOR Gate IC 1 Channel SC-70-5
SC-70-5ROHS3 CompliantActive
Single 2-input XOR gate
- Manufacturer
- TI
- Manufacturer part #
- SN74AUC1G86DCKR
- Store part #
- C2869047
- Package / case
- SC-70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,980 in stock
#C2869047
Stock & price checked 43 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.16 | ₹130.80 |
| 50+ | ₹20.53 | ₹1,026.50 |
| 150+ | ₹17.79 | ₹2,668.50 |
| 500+ | ₹15.35 | ₹7,675.00 |
| 3,000+ | ₹14.67 | ₹44,010.00 |
| 6,000+ | ₹14.28 | ₹85,680.00 |
5 × ₹26.16
₹130.80
excl. GST
₹154.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AUC1G86DCKR
₹130.80 for 5 + GST
Specifications
- Features
- Overvoltage-tolerant input;Local shutdown mode
- Input Logic Level - High
- 1.7V
- Logic Family
- 74AUC Series
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - Low
- 0V~700mV
- Output Logic Level - High
- 1.8V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 800mV~2.7V
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 9mA
- Output Logic Level - Low
- 600mV
- Propagation Delay
- 2ns@2.5V,30pF
- Current - Output Low(IOL)
- 9mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.02 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74AUC1G86DCKR-TP#C54561885TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,940 | ₹10.69 · 2,940 in stock | View |
