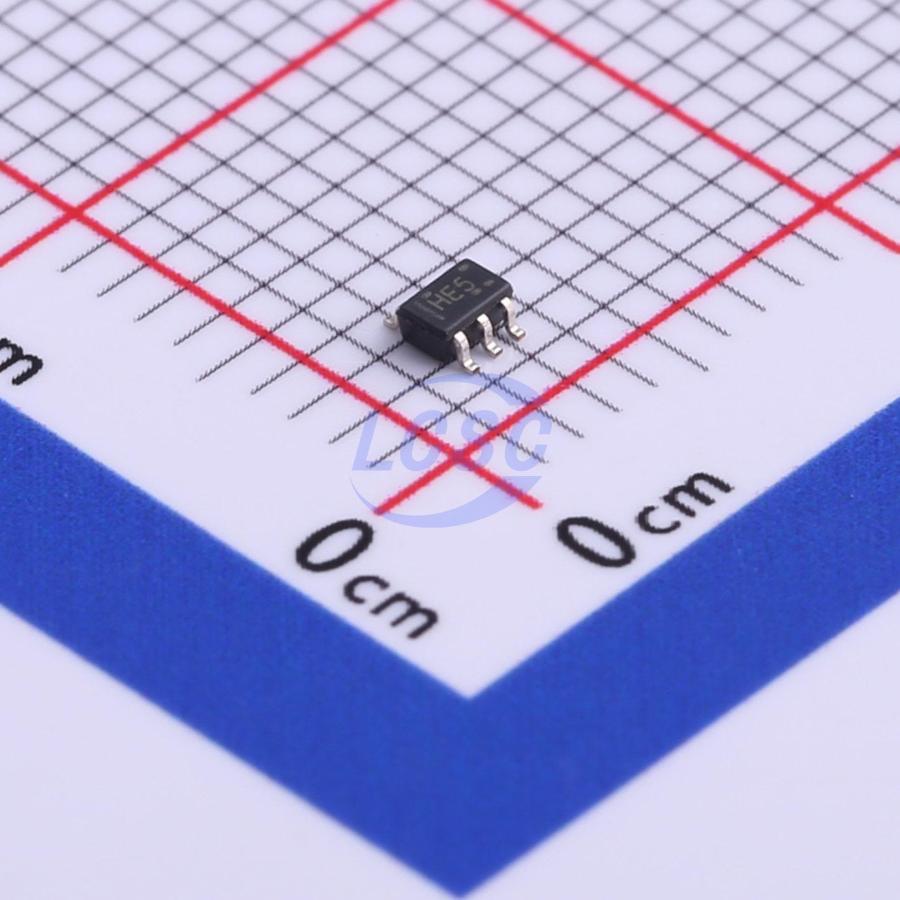

SN74AUP1G08DCKR

This single 2-input positive-AND gate is designed for 0.8 V to 3.6 V VCC operation and performs the Boolean function Y = A B or Y = A(overline) + B(overline) in positive logic.

Applications

• ATCA Solutions
• Active Noise Cancellation (ANC)
• Barcode Scanner
• Blood Pressure Monitor
• CPAP Machine
• Cable Solutions
• DLP 3D Machine Vision
• Hyperspectral Imaging
• Optical Networking
• Spectroscopy
• E-Book
• Embedded PC
• Field Transmitter: Temperature or Pressure Sensor
• Fingerprint Biometrics
• HVAC: Heating, Ventilating, and Air Conditioning
• Network-Attached Storage (NAS)
• Server Motherboard and PSU
• Software Defined Radio (SDR)
• TV: High-Definition (HDTV), LCD, and Digital Video Communications System
• Wireless Data Access Card, Headset, Keyboard, Mouse, and LAN Card
• X-ray: Baggage Scanner, Medical, and Dental

Key features

• Available in the Ultra Small 0.64 mm² Package (DPW) With 0.5 mm Pitch
• Low Static-Power Consumption: ICC = 0.9 μA Maximum
• Low Dynamic-Power Consumption: Cpd = 4.3 pF Typical at 3.3 V
• Low Input Capacitance: Ci = 1.5 pF Typical
• Low Noise: Overshoot and Undershoot < 10% of VCC
• Supports Live Insertion, Partial-Power-Down Mode, and Back Drive Protection
• Schmitt-Trigger Action Allows Slow Input Transition and Better Switching Noise Immunity at the Input (ΔYhys = 250 mV Typical at 3.3 V)
• Wide Operating VCC Range of 0.8 V to 3.6 V
• Optimized for 3.3-V Operation
• 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation
• Δfpd = 4.3 ns Maximum at 3.3 V
• Suitable for Point-to-Point Applications
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Performance Tested Per JESD 22: 2000-V Human-Body Model (A114-B, Class II), 1000-V Charged-Device Model (C101)
