TECH PUBLICDatasheet (PDF)

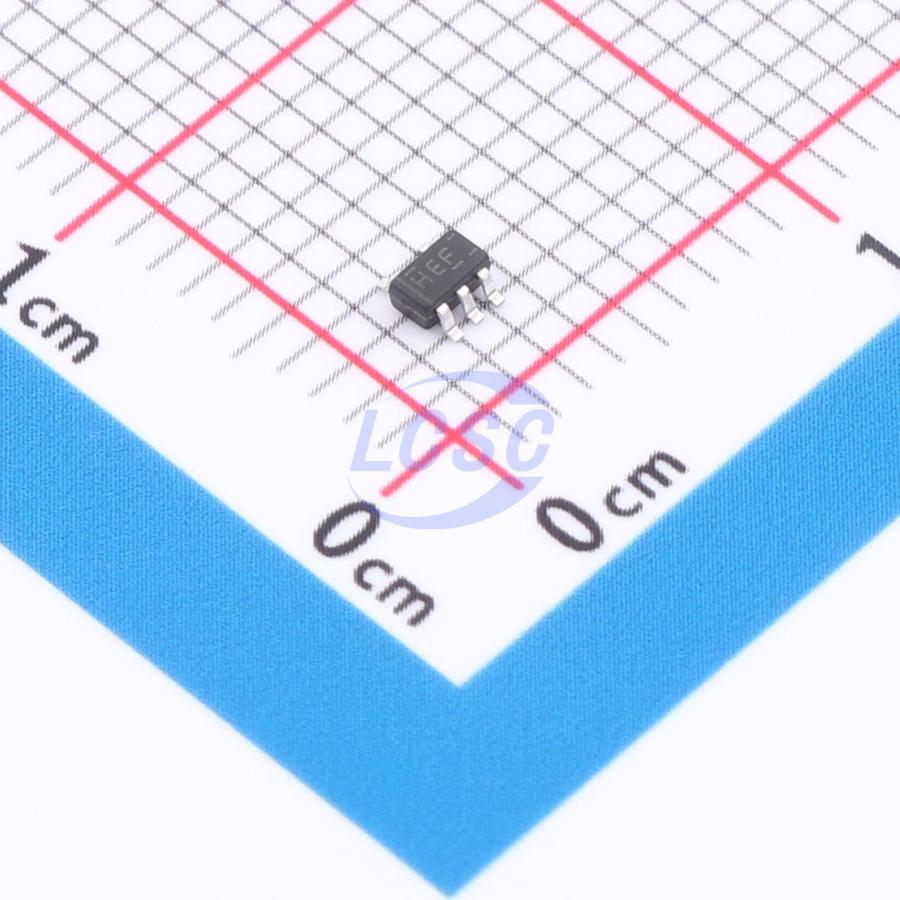

TP74AUP1G08C5
500nA 800mV~3.6V 4.7ns@3.3V,30pF SOT-353 Gates and Inverters
SOT-353RoHSActive
2-INPUT AND GATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74AUP1G08C5
- Store part #
- C48995590
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,800 in stock
#C48995590
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.24 | ₹62.40 |
| 100+ | ₹4.93 | ₹493.00 |
| 300+ | ₹4.29 | ₹1,287.00 |
| 3,000+ | ₹3.80 | ₹11,400.00 |
| 6,000+ | ₹3.40 | ₹20,400.00 |
| 9,000+ | ₹3.20 | ₹28,800.00 |
10 × ₹6.24
₹62.40
excl. GST
₹73.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP74AUP1G08C5
₹62.40 for 10 + GST
Specifications
- Features
- Local shutdown mode
- Logic Family
- 74AUP
- Input Logic Level - Low
- 700mV;900mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 1.6V;2V
- Output Logic Level - High
- 1.11V;1.32V;2.05V;1.9V;2.72V;2.6V
- Quiescent Current(Iq)
- 500nA
- Voltage - Supply
- 800mV~3.6V
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 1;2
- Propagation Delay
- 4.7ns@3.3V,30pF
- Output Logic Level - Low
- 310mV;440mV
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
The TP74AUP1G08 is a 2-input AND gate which provides the Function Y = A • B or Y = A(overline) + B(overline) in positive logic. This device ensures a very low static and dynamic power consumption across the entire VCC range from 0.8V to 3.6V.
Applications
- AV Receiver
- Audio Dock: Portable
- Blu-ray Player and Home Theater
- Embedded PC
- Personal Digital Assistant (PDA)
- Power: Telecom/Server AC/DC Supply: Single Controller: Analog and Digital
- Solid State Drive (SSD): Client and Enterprise
- Wireless Headset, Keyboard, and Mouse
Key features
- Wide supply voltage range from 0.8V to 3.6V
- Inputs accept voltages up to 3.6V
- I_OFF supports partial-power-down mode
- Low static power consumption; I_CC = 0.5μA (Max.)
- ESD Protection Exceeds JESD 22 - 2000-V Human-Body Model (A114 - A)
- 200-V Machine Model (A115 - A)
- 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74AUP1G08DCKR-TP#C48995543TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,780 | ₹5.25 · 2,780 in stock | View |
 | NC7SV08P5X-TP#C54561874TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,990 | ₹10.69 · 2,990 in stock | View |
