UMW

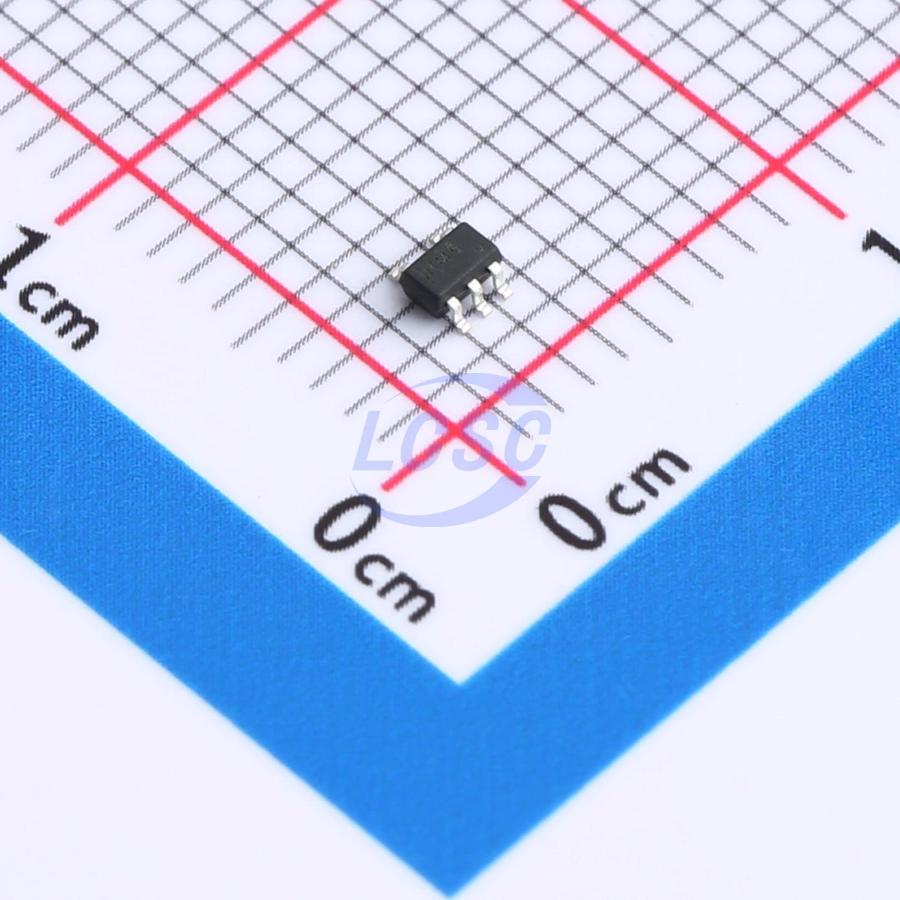

SN74AUP1G125DCKR(UMW)

0.8V~3.6V 1 1.9ns@3.3V,5pF SC-70-5 Buffers, Drivers, Receivers, Transceivers

SC-70-5RoHSActive

Single ULP Buffer with 3-State Output

Manufacturer: UMW
Manufacturer part #: SN74AUP1G125DCKR(UMW)
Store part #: C22396375
Package / case: SC-70-5
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,160 in stock

#C22396375

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹5.79	₹57.90
100+	₹4.58	₹458.00
300+	₹3.97	₹1,191.00
3,000+	₹3.52	₹10,560.00
6,000+	₹3.15	₹18,900.00
9,000+	₹2.98	₹26,820.00

Quantity (min 10, multiples of 10)

10 × ₹5.79

₹57.90

excl. GST

₹68.32 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74AUP1G125DCKR(UMW)

₹57.90 for 10 + GST

Specifications

Function: Output enable
Current - Output High(IOH): 4mA
Series: 74AUP
Voltage - Supply: 0.8V~3.6V
Output Type: Tri-State
Current - Output Low(IOL): 4mA
Channel Type: Unidirectional
Number of Elements: 1
Operating Temperature: -40℃~+85℃
Quiescent Supply Current: 700nA
Propagation Delay: 1.9ns@3.3V,5pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.036 g

Overview

The SN74AUP1G125 is a single buffer with three-state output from the ultra-low power series, operating at supply voltages from 0.8V to 3.6V. The device is fabricated using advanced CMOS technology to achieve ultra-high speed and high output drive capability.

Key features

Designed for 0.8V to 3.6V VCC operating voltage
Low quiescent current; Icc = 0.7μA (maximum)
4mA balanced sink and source output drive capability
Near-zero quiescent supply current, significantly reducing system power requirements
Lead-free, RoHS-compliant devices
Available in SC70-5, SOT23-5, or small DFN6 packages
Moisture Sensitivity Level 3 (applicable to SC70-5, SOT23-5, DFN6 packages)
