UMW

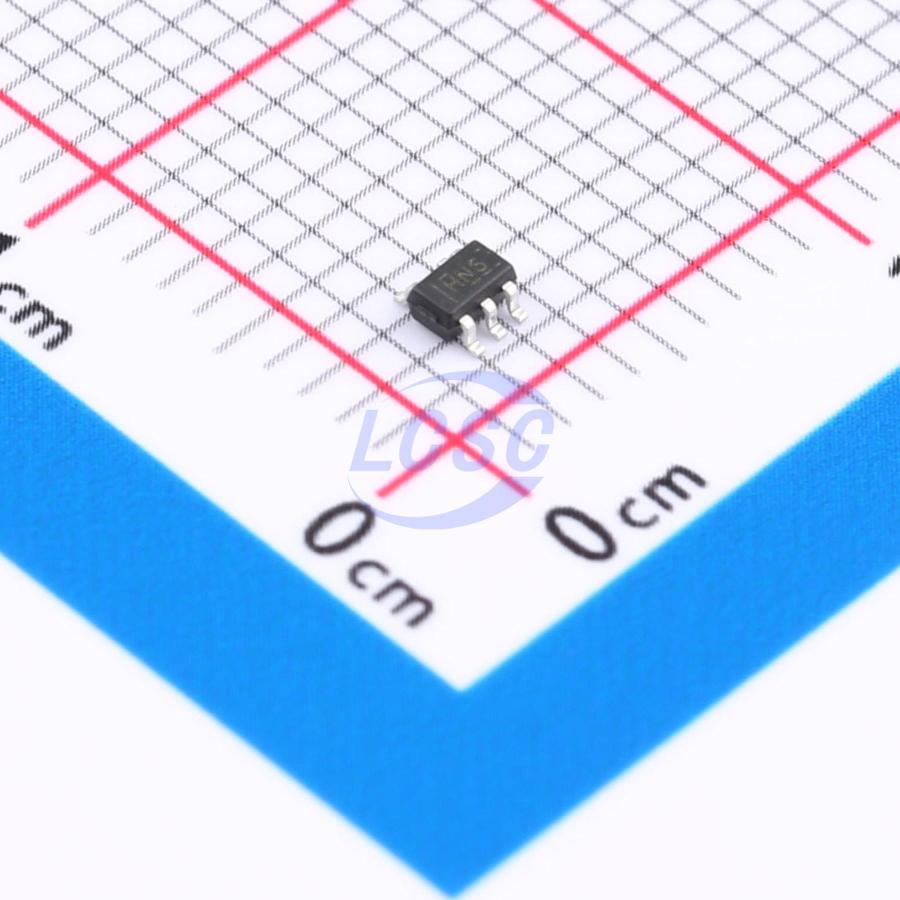

SN74AUP1G126DCKR(UMW)

800mV~3.6V 1 4.4ns@3.3V,5pF SC70-5 Buffers, Drivers, Receivers, Transceivers RoHS

SC70-5ROHS3 CompliantActive

Single-channel non-inverting three-state buffer

Manufacturer: UMW
Manufacturer part #: SN74AUP1G126DCKR(UMW)
Store part #: C18057300
Package / case: SC70-5
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,930 in stock

#C18057300

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
10+	₹5.90	₹59.00
100+	₹4.64	₹464.00
300+	₹4.01	₹1,203.00
3,000+	₹3.53	₹10,590.00
6,000+	₹3.16	₹18,960.00
9,000+	₹2.98	₹26,820.00

Quantity (min 10, multiples of 10)

10 × ₹5.90

₹59.00

excl. GST

₹69.62 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74AUP1G126DCKR(UMW)

₹59.00 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply: 800mV~3.6V
Output Type: Tri-State
Operating Temperature: -40℃~+85℃
Quiescent Supply Current: 700nA
Output Logic Level - High: 2.67V~2.95V;2.55V~2.92V
Function: Controllable output enable
Current - Output High(IOH): 4mA
Series: 74AUP
Output Logic Level - Low: 110mV~310mV;160mV~440mV
Current - Output Low(IOL): 4mA
Input Logic Level - High: 1.6V;2V
Input Logic Level -Low: 700mV;900mV
Number of Gates: 1
Propagation Delay: 4.4ns@3.3V,5pF
Inputs per Gates: 1

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.037 g

Overview

The SN74AUP1G126 is a single non-inverting buffer with 3-state output from the ultra-low power series, operating at supply voltages from 0.8V to 3.6V. The device is manufactured using advanced CMOS technology to achieve ultra-high speed and high output drive capability.

Key features

Designed for 0.8V to 3.6V Vcc operation
Low quiescent power consumption; Icc = 0.7μA (maximum)
4mA balanced output sink and source current capability
Near-zero quiescent supply current significantly reduces system power requirements
Lead-free and RoHS compliant
