TECH PUBLICDatasheet (PDF)

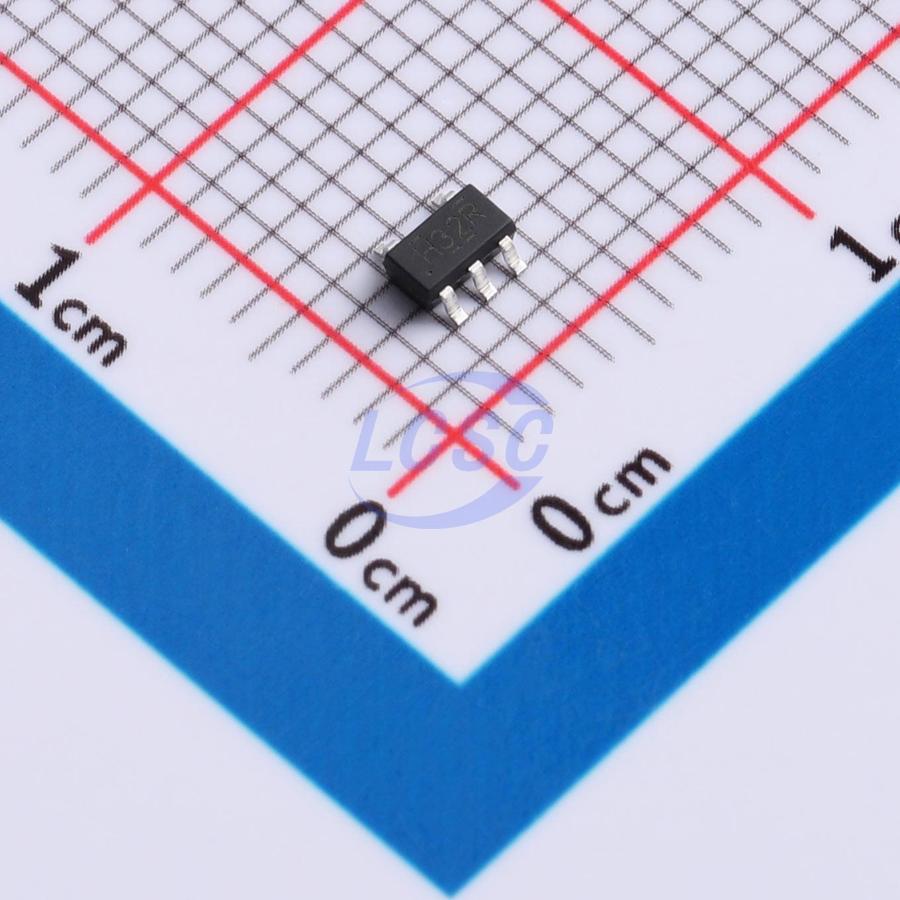

SN74AUP1G32DBVR-TP
500nA 800mV~3.6V 6.6ns@3.3V,30pF SOT-23-5 Gates and Inverters RoHS
SOT-23-5ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74AUP1G32DBVR-TP
- Store part #
- C49333181
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,560 in stock
#C49333181
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.02 | ₹60.20 |
| 100+ | ₹4.75 | ₹475.00 |
| 300+ | ₹4.13 | ₹1,239.00 |
| 3,000+ | ₹3.65 | ₹10,950.00 |
| 6,000+ | ₹3.28 | ₹19,680.00 |
| 9,000+ | ₹3.08 | ₹27,720.00 |
10 × ₹6.02
₹60.20
excl. GST
₹71.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AUP1G32DBVR-TP
₹60.20 for 10 + GST
Specifications
- Features
- Local shutdown mode
- Logic Family
- 74AUP
- Input Logic Level - Low
- 0V;700mV;900mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 800mV;1.6V;2V
- Output Logic Level - High
- 1.11V;1.32V;2.05V;1.9V;2.72V;2.6V
- Quiescent Current(Iq)
- 500nA
- Voltage - Supply
- 800mV~3.6V
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 2;1
- Propagation Delay
- 6.6ns@3.3V,30pF
- Output Logic Level - Low
- 100mV;310mV;440mV
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.1 g
Overview
SN74AUP1G32 is a single 2-input OR gate that implements the function Y = A + B or Y = Ā + B̄ in positive logic. The device ensures ultra-low static and dynamic power consumption across the entire VCC range of 0.8V to 3.6V.
Applications
- AV receivers
- Embedded PCs
- Personal digital assistants
- Solid-state drives
- Wireless peripherals
Key features
- Wide supply voltage range: 0.8V to 3.6V
- Inputs tolerant up to 3.6V
- I<sub>OFF</sub> supports partial power-down mode
- Low quiescent current; I_CC = 0.5μA (maximum)
- ESD protection exceeds JESD 22
- Human Body Model: 2000V (A114-A)
- Machine Model: 200V (A115-A)
- Charged Device Model: 1000V (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP74AUP1G32S5#C49333203TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,000 | ₹7.10 · 3,000 in stock | View |
