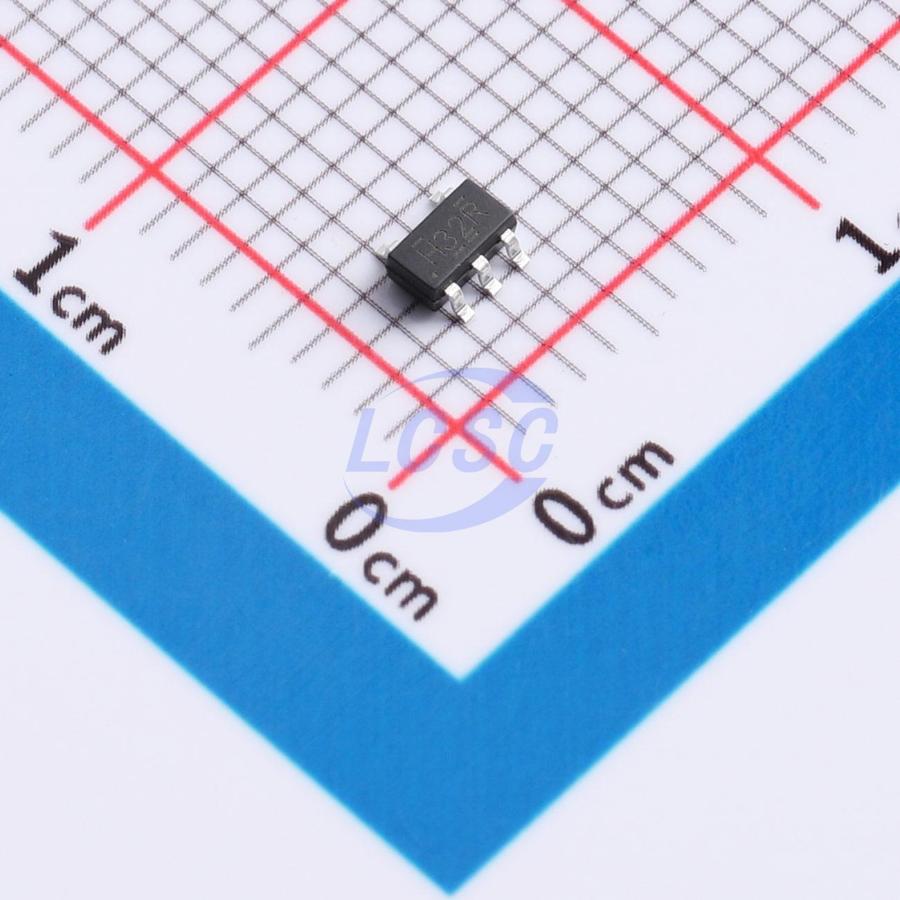

TP74AUP1G32S5
500nA 800mV~3.6V 7ns@3.3V,30pF SOT-23-5 Gates and Inverters RoHS
SOT-23-5ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74AUP1G32S5
- Store part #
- C49333203
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C49333203
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.10 | ₹71.00 |
| 100+ | ₹5.62 | ₹562.00 |
| 300+ | ₹4.88 | ₹1,464.00 |
| 3,000+ | ₹4.31 | ₹12,930.00 |
| 6,000+ | ₹3.88 | ₹23,280.00 |
| 9,000+ | ₹3.65 | ₹32,850.00 |
10 × ₹7.10
₹71.00
excl. GST
₹83.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP74AUP1G32S5
₹71.00 for 10 + GST
Specifications
- Features
- Local shutdown mode
- Logic Family
- 74AUP
- Input Logic Level - Low
- 700mV;900mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 1.6V;2V
- Output Logic Level - High
- 2.6V
- Quiescent Current(Iq)
- 500nA
- Voltage - Supply
- 800mV~3.6V
- Number of Channels
- 1;2
- Propagation Delay
- 7ns@3.3V,30pF
- Output Logic Level - Low
- 440mV
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.1 g
Overview
TP74AUP1G32 is a single 2-input OR gate that implements the function Y = A + B or Y = Ā + B̄ in positive logic. The device ensures ultra-low static and dynamic power consumption across the entire VCC range of 0.8V to 3.6V.
Applications
- Audio docking stations
- Blu-ray players and home theater systems
- Embedded PCs
- Personal digital assistants
- Solid-state drives
- Wireless headsets, keyboards, and mice
Key features
- Wide supply voltage range: 0.8V to 3.6V
- Inputs tolerant up to 3.6V
- I<sub>OFF</sub> supports partial power-down mode
- Low quiescent current; I_CC = 0.5μA (max)
- ESD protection exceeds JESD 22
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74AUP1G32DBVR-TP#C49333181TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,560 | ₹6.02 · 2,560 in stock | View |
