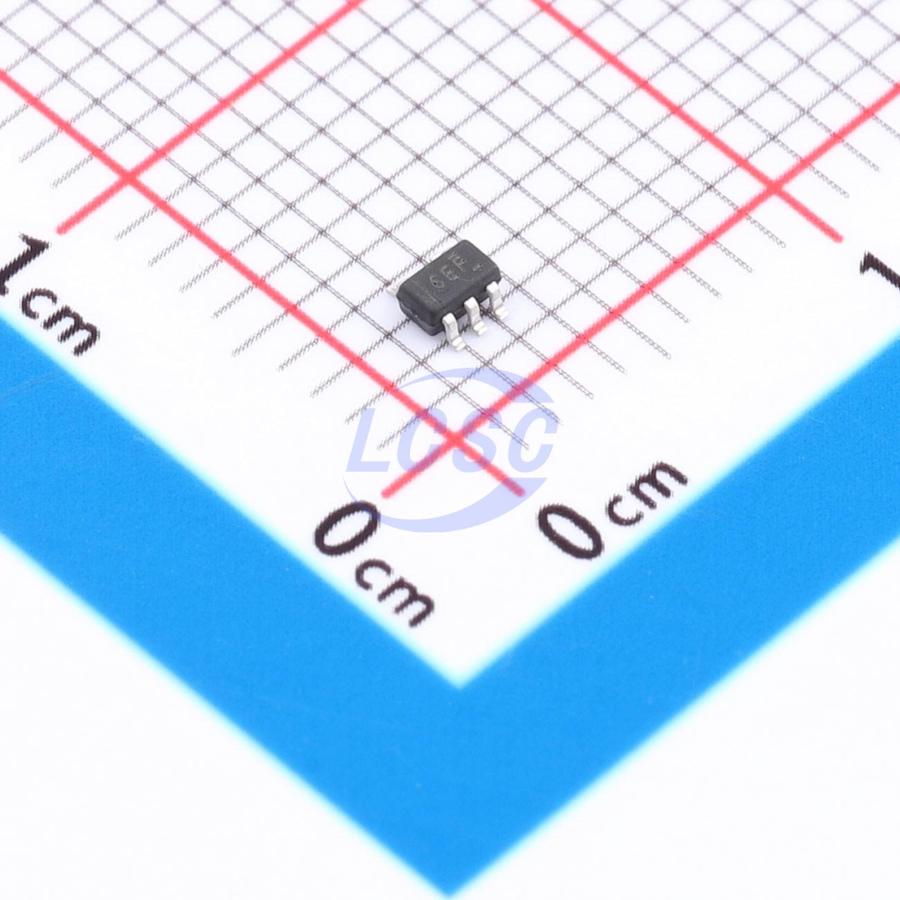

SN74AUP1T08DCKR-TP
Schmitt trigger 2.3V~3.6V 7ns@3.3V,30pF 1.2uA SOT-353 Gates and Inverters RoHS
SOT-353ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74AUP1T08DCKR-TP
- Store part #
- C51939606
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,855 in stock
#C51939606
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.36 | ₹66.80 |
| 50+ | ₹10.53 | ₹526.50 |
| 150+ | ₹9.10 | ₹1,365.00 |
| 500+ | ₹8.04 | ₹4,020.00 |
| 3,000+ | ₹7.18 | ₹21,540.00 |
| 6,000+ | ₹6.76 | ₹40,560.00 |
5 × ₹13.36
₹66.80
excl. GST
₹78.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AUP1T08DCKR-TP
₹66.80 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74AUP
- Voltage - Supply
- 2.3V~3.6V
- Propagation Delay
- 7ns@3.3V,30pF
- Output Logic Level - Low
- 440mV
- Features
- Local shutdown mode
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 2.6V
- Quiescent Current(Iq)
- 1.2uA
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
This device provides a single 2-input AND gate function. It ensures ultra-low static and dynamic power consumption across the entire VCC range of 2.3V to 3.6V. The device is designed for logic level translation applications, with input switching levels that accept 1.8V low-voltage CMOS signals while operating from a single 2.5V or 3.3V supply voltage. The wide supply voltage range ensures proper operation as the battery voltage drops from 3.6V to 2.3V. Schmitt-trigger inputs allow the circuit to tolerate slower input rise and fall times across the entire VCC range.
Applications
- AV receivers
- Audio docking stations
- Blu-ray players & home theater systems
- Embedded PCs
- Solid-state drives
Key features
- Wide supply voltage range: 2.3V to 3.6V
- Inputs accept voltages up to 3.6V
- I_OFF supports partial power-down mode
- Low quiescent current; I_CC = 1.5μA (maximum)
- ESD protection exceeds JESD 22: 2000V HBM, 200V MM, 1000V CDM
