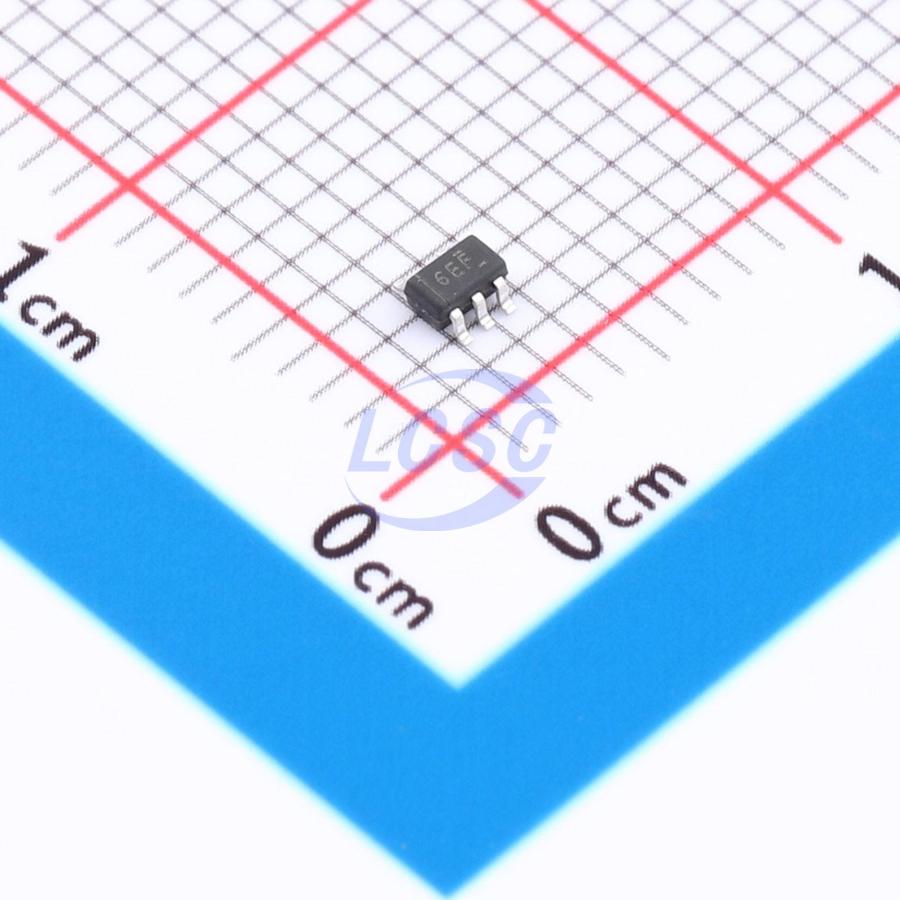

TP74AUP1T08C5
Schmitt trigger 2.3V~3.6V 6.9ns@3V~3.6V,30pF 1.5uA SOT-353 Gates and Inverters RoHS
SOT-353ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74AUP1T08C5
- Store part #
- C51939621
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C51939621
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.78 | ₹78.90 |
| 50+ | ₹12.41 | ₹620.50 |
| 150+ | ₹10.73 | ₹1,609.50 |
| 500+ | ₹9.46 | ₹4,730.00 |
| 3,000+ | ₹8.45 | ₹25,350.00 |
| 6,000+ | ₹7.95 | ₹47,700.00 |
5 × ₹15.78
₹78.90
excl. GST
₹93.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP74AUP1T08C5
₹78.90 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74AUP
- Voltage - Supply
- 2.3V~3.6V
- Propagation Delay
- 6.9ns@3V~3.6V,30pF
- Output Logic Level - Low
- 440mV
- Features
- Local shutdown mode
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 2.6V
- Quiescent Current(Iq)
- 1.5uA
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
The TP74AUP1T08 provides a single 2-input AND gate function. The device ensures ultra-low static and dynamic power consumption across the entire VCC range of 2.3V to 3.6V. Designed for logic level translation applications, its input switching levels accept 1.8V low-voltage CMOS signals while operating from a single 2.5V or 3.3V supply voltage. The wide supply voltage range ensures proper operation as battery voltage drops from 3.6V to 2.3V. Schmitt-trigger inputs allow the circuit to tolerate slower input rise and fall times across the entire VCC range.
Applications
- Audio/Video Receivers
- Audio Docking Stations
- Blu-ray Players & Home Theater Systems
- Embedded PCs
- Personal Digital Assistants
Key features
- Wide supply voltage range: 2.3V ~ 3.6V
- Input accepts voltages up to 3.6V
- IOFF supports partial power-down mode
- Low quiescent current; ICC = 1.5μA (Max.)
- ESD protection exceeds JESD 22: -2000-V HBM (A114-A), -200-V MM (A115-A), -1000-V CDM (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74AUP1T08DCKR-TP#C51939606TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 5,855 | ₹13.36 · 5,855 in stock | View |
