UMW

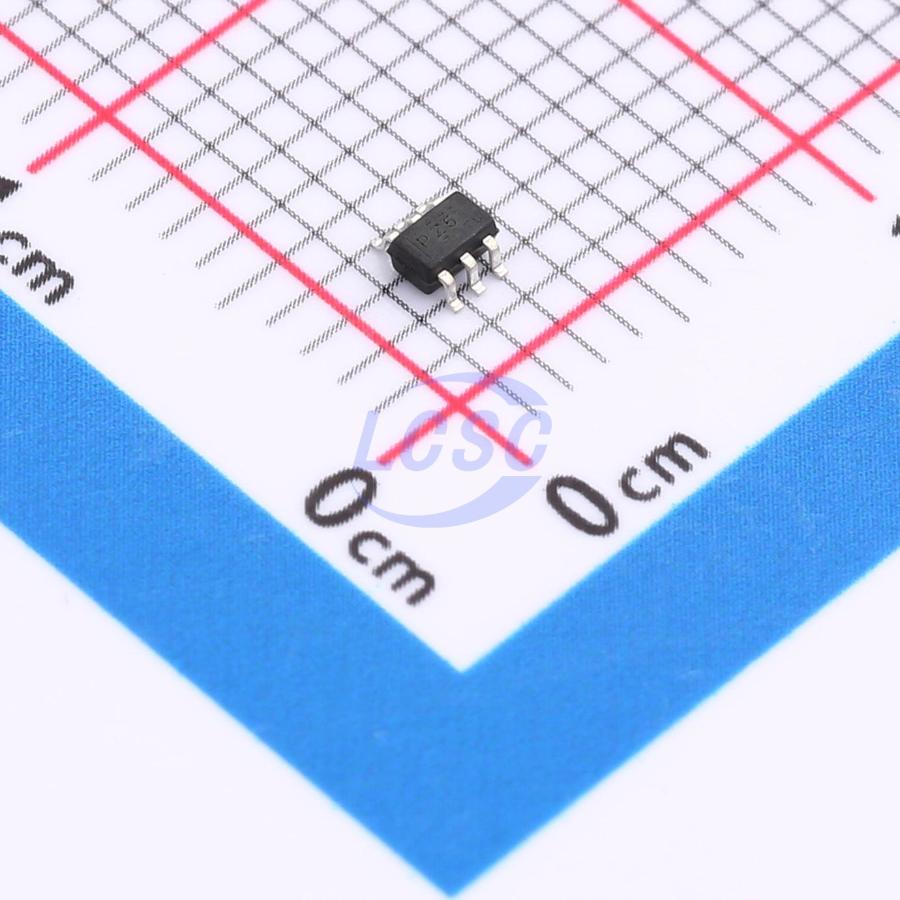

SN74AUP2G34DCKR(UMW)

0.8V~3.6V 1 2 2.2ns@3.3V,30pF SC-70-6 Buffers, Drivers, Receivers, Transceivers

SC-70-6RoHSActive

Dual Buffer

Manufacturer: UMW
Manufacturer part #: SN74AUP2G34DCKR(UMW)
Store part #: C22396371
Package / case: SC-70-6
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,070 in stock

#C22396371

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹6.76	₹67.60
100+	₹5.34	₹534.00
300+	₹4.63	₹1,389.00
3,000+	₹4.10	₹12,300.00
6,000+	₹3.68	₹22,080.00
9,000+	₹3.47	₹31,230.00

Quantity (min 10, multiples of 10)

10 × ₹6.76

₹67.60

excl. GST

₹79.77 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74AUP2G34DCKR(UMW)

₹67.60 for 10 + GST

Specifications

Current - Output High(IOH): 4mA
Series: 74AUP
Voltage - Supply: 0.8V~3.6V
Current - Output Low(IOL): 4mA
Number of Bits per Element: 1
Channel Type: Unidirectional
Number of Elements: 2
Operating Temperature: -40℃~+85℃
Quiescent Supply Current: 700nA
Propagation Delay: 2.2ns@3.3V,30pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.037 g

Overview

74AUP2G34 is a high-performance dual buffer operating over a voltage range of 0.8V to 3.6V. The device is fabricated using advanced CMOS technology, designed for ultra-high speed and high output drive capability.

Key features

Designed for 0.8V to 3.6V VCC operating voltage
Low quiescent power consumption; maximum quiescent current 0.7μA
4mA balanced sink and source output current capability
Near-zero quiescent supply current, significantly reducing system power consumption requirements
Lead-free, RoHS compliant
