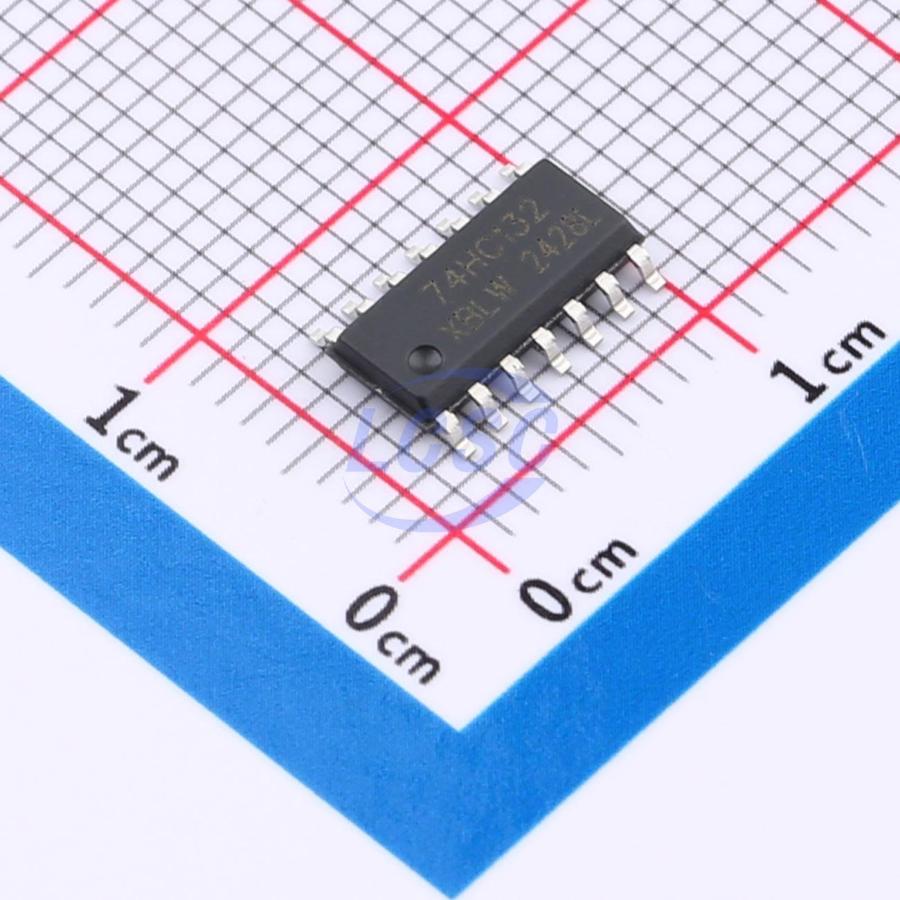

SN74HC132DTR(XBLW)
Schmitt trigger 2V~6V 13ns@4.5V,50pF 2uA SOP-14 Gates and Inverters RoHS
SOP-14ROHS CompliantActive
Quad 2-input Nand Schmitt Trigger
- Manufacturer
- XBLW
- Manufacturer part #
- SN74HC132DTR(XBLW)
- Store part #
- C42376980
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,405 in stock
#C42376980
Stock & price checked 34 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.89 | ₹94.45 |
| 50+ | ₹14.94 | ₹747.00 |
| 150+ | ₹12.95 | ₹1,942.50 |
| 500+ | ₹11.47 | ₹5,735.00 |
| 2,500+ | ₹10.28 | ₹25,700.00 |
| 5,000+ | ₹9.70 | ₹48,500.00 |
5 × ₹18.89
₹94.45
excl. GST
₹111.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HC132DTR(XBLW)
₹94.45 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;150mV~260mV;160mV~260mV
- Propagation Delay
- 13ns@4.5V,50pF
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V~2V;3.98V~4.32V;5.48V~5.81V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.26 g
Overview
The SN74HC132 is a quad 2-input NAND gate with Schmitt-trigger inputs. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. Schmitt trigger inputs transform slowly changing input signals into sharply defined jitter-free output signals.
Applications
- Alarm / tamper detect circuit
- S-R latch
Key features
- Buffered inputs
- Wide operating voltage range: 2 V to 6 V
- Low-power dissipation
- Specified from -40 ℃ to +125 ℃
- Packaging information: DIP-14/SOP-14/TSSOP-14
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC00DTR(XBLW)#C41361404XBLW · SOP-14 | XBLW | SOP-14 | 1,590 | ₹13.14 · 1,590 in stock | View |
