XBLW

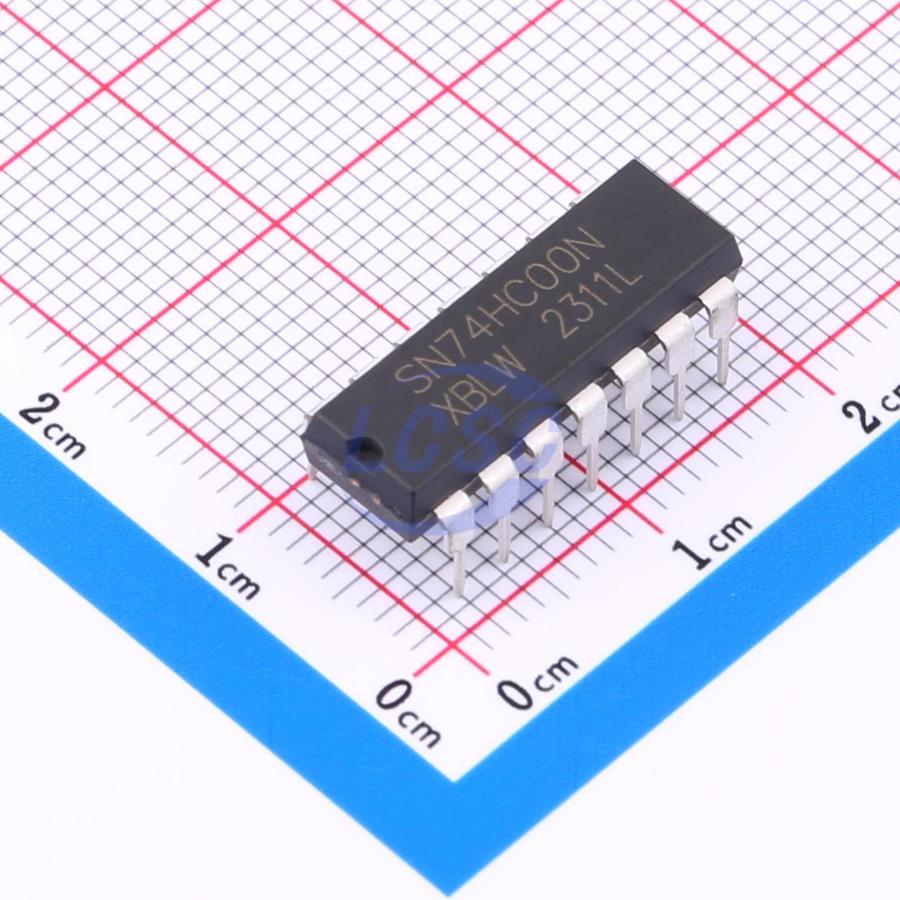

SN74HC00N(XBLW)

2uA 2V~6V 7ns DIP-14 Gates and Inverters RoHS

DIP-14ROHS CompliantActive

Quad 2-input Nand Gate

Manufacturer: XBLW
Manufacturer part #: SN74HC00N(XBLW)
Store part #: C18723495
Package / case: DIP-14
Category: Gates and Inverters
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,785 in stock

#C18723495

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
5+	₹21.29	₹106.45
50+	₹16.68	₹834.00
150+	₹14.71	₹2,206.50
500+	₹12.25	₹6,125.00
2,000+	₹11.15	₹22,300.00
5,000+	₹10.50	₹52,500.00

Quantity (min 5, multiples of 5)

5 × ₹21.29

₹106.45

excl. GST

₹125.61 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 25 per tube

SN74HC00N(XBLW)

₹106.45 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Logic Family: 74HC
Input Logic Level - High: 1.5V;3.15V;4.2V
Operating Temperature: -40℃~+105℃
Input Logic Level - Low: 2.1V
Output Logic Level - High: 4.5V
Quiescent Current(Iq): 2uA
Voltage - Supply: 2V~6V
Number of Channels: 4;2
Propagation Delay: 7ns
Output Logic Level - Low: 150mV
Current - Output Low(IOL): 4mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tube-packed
Standard pack: 25 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 1.639 g

Overview

The SN74HC00 is a quad 2- input NAND gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

Applications

Alarm / tamper detect circuit
S- R latch

Key features

Wide operating voltage range: 2 V to 6 V
Specified from -40℃ to +125℃
Packaging information: DIP14/SOP14/TSSOP14
