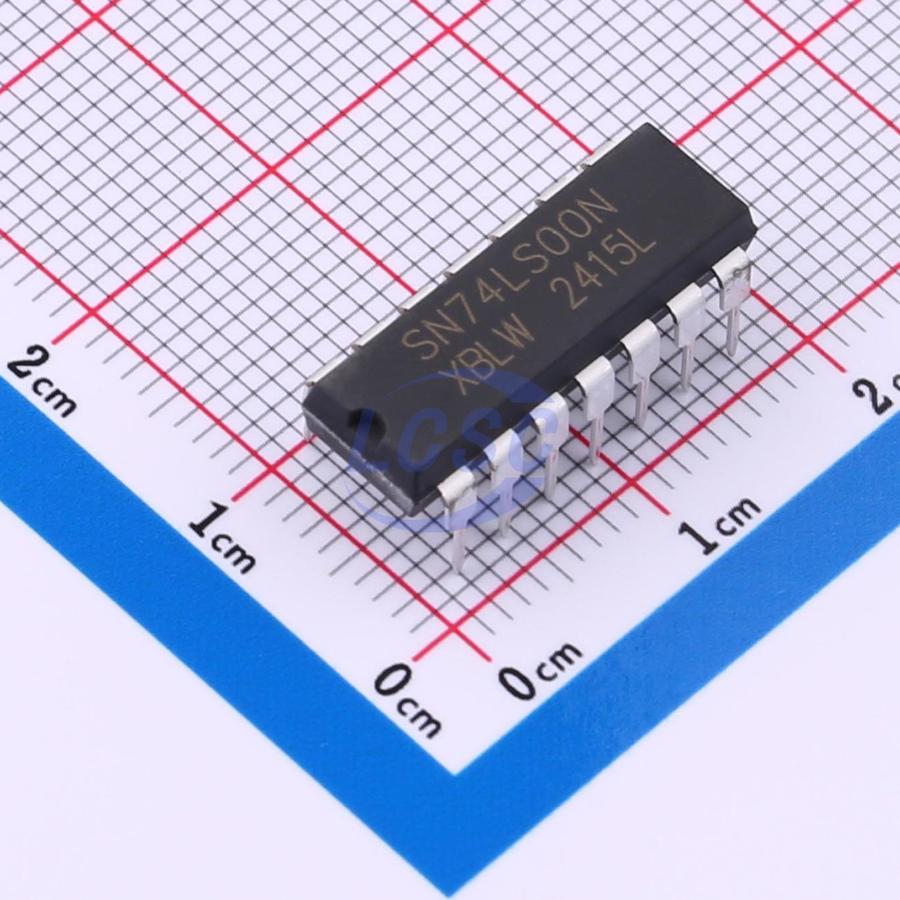

SN74LS00N(XBLW)
2uA 2V~6V 7ns@5V,15pF DIP-14 Gates and Inverters RoHS
DIP-14ROHS CompliantActive
Quad 2-input Nand Gate
- Manufacturer
- XBLW
- Manufacturer part #
- SN74LS00N(XBLW)
- Store part #
- C42395504
- Package / case
- DIP-14
- Category
- Gates and Inverters
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,910 in stock
#C42395504
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.35 | ₹111.75 |
| 50+ | ₹17.77 | ₹888.50 |
| 150+ | ₹15.81 | ₹2,371.50 |
| 500+ | ₹13.36 | ₹6,680.00 |
| 2,500+ | ₹12.28 | ₹30,700.00 |
| 5,000+ | ₹11.62 | ₹58,100.00 |
5 × ₹22.35
₹111.75
excl. GST
₹131.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 25 per tube
SN74LS00N(XBLW)
₹111.75 for 5 + GST
Specifications
- Logic Family
- 74LS
- Input Logic Level - High
- 3.2V
- Input Logic Level - Low
- 2.8V
- Operating Temperature
- -20℃~+85℃
- Output Logic Level - High
- 5.81V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Propagation Delay
- 7ns@5V,15pF
- Output Logic Level - Low
- 160mV
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.603 g
Overview
The SN74LSO0 is a quad 2-input NAND gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of V_CC
Applications
- Alarm / tamper detect circuit
- S-R latch
Key features
- Wide operating voltage range: 2 to 6 V
- Specified from -20℃ to +85℃
- Packaging information: DIP14/SOP14/TSSOP14
