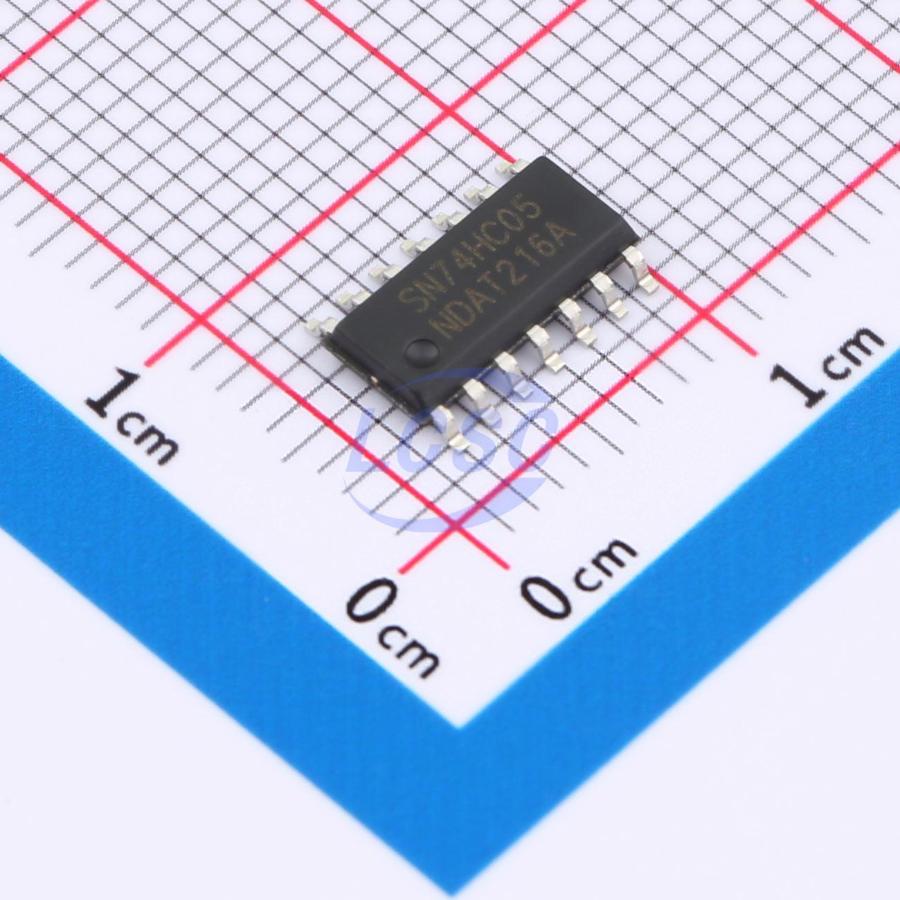

SN74HC05DR(LX)
StandardCMOS 2V~6V 8ns@6V,50pF 2uA 6 SOP-14 Gates and Inverters
SOP-14RoHSActive
Hex Inverter with Open-drain outputs
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74HC05DR(LX)
- Store part #
- C22436978
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,915 in stock
#C22436978
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.78 | ₹98.90 |
| 50+ | ₹15.85 | ₹792.50 |
| 150+ | ₹13.89 | ₹2,083.50 |
| 500+ | ₹12.41 | ₹6,205.00 |
| 2,500+ | ₹11.23 | ₹28,075.00 |
| 4,000+ | ₹10.65 | ₹42,600.00 |
5 × ₹19.78
₹98.90
excl. GST
₹116.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SN74HC05DR(LX)
₹98.90 for 5 + GST
Specifications
- output type
- Open-drain
- Input Type
- StandardCMOS
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;260mV
- Propagation Delay
- 8ns@6V,50pF
- Operating Temperature
- -40℃~+105℃
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.256 g
Overview
The SN74HC/HCT05 contains six inverters. The outputs of the SN74HC/HCT05 are open-drain and can be connected to other open-drain outputs to implement active-LOW wired-OR or active-HIGH wiredAND functions. The open-drain outputs require pull-up resistors to perform correctly.
Key features
- Input levels: For SN74HC05: CMOS level For SN74HCT05: TTL level
- Latch-up performance exceeds 100 mA per JESD 78 Class II level A
- Specified from -40°C to +125°C
- Packaging information: DIP14/SOP14/TSSOP14
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC06DR(LX)#C22436979lingxingic · SOP-14 | lingxingic | SOP-14 | 1,620 | ₹29.48 · 1,620 in stock | View |
