lingxingic

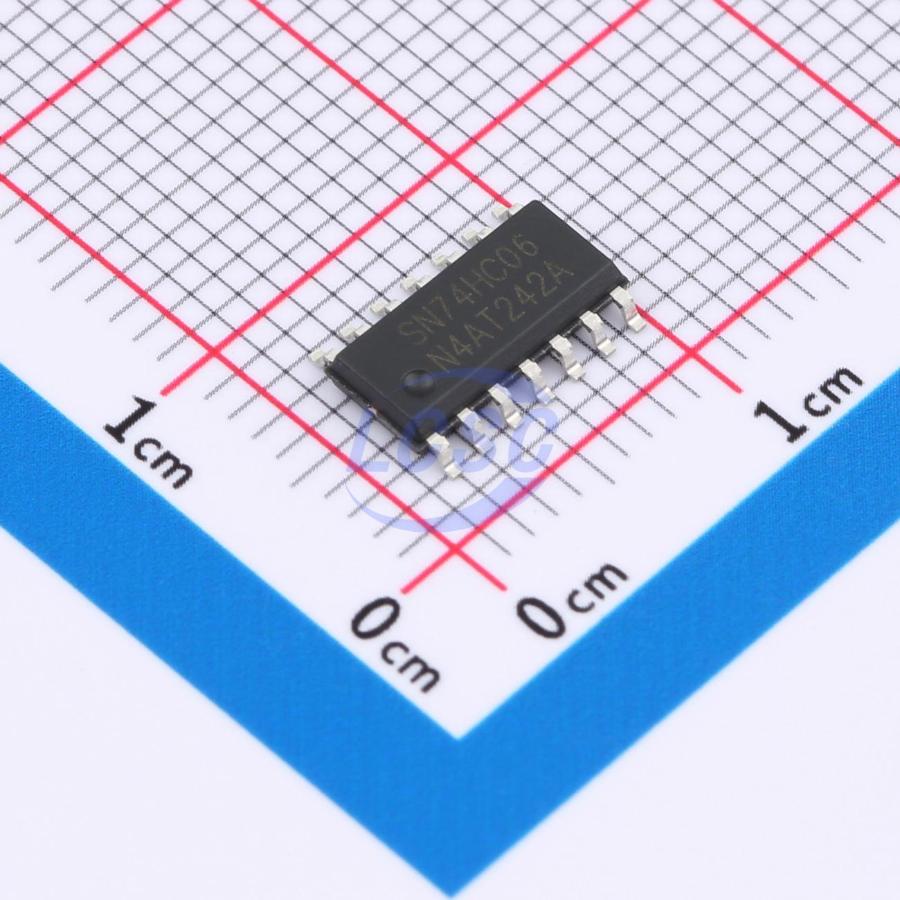

SN74HC06DR(LX)

StandardCMOS 2V~6V 16ns@6V,50pF 2uA 6 SOP-14 Gates and Inverters

SOP-14RoHSActive

Hex Inverter with Open-drain outputs

Manufacturer: lingxingic
Manufacturer part #: SN74HC06DR(LX)
Store part #: C22436979
Package / case: SOP-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,620 in stock

#C22436979

Stock & price checked 29 h ago

Quantity	Unit price	Pack price
5+	₹29.48	₹147.40
50+	₹22.86	₹1,143.00
150+	₹20.03	₹3,004.50
500+	₹16.50	₹8,250.00
2,500+	₹14.92	₹37,300.00
4,000+	₹13.98	₹55,920.00

Quantity (min 5, multiples of 5)

5 × ₹29.48

₹147.40

excl. GST

₹173.93 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

SN74HC06DR(LX)

₹147.40 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

output type: Open-drain
Input Type: StandardCMOS
Logic Family: 74HC
Voltage - Supply: 2V~6V
Output Logic Level - Low: 260mV
Propagation Delay: 16ns@6V,50pF
Input Logic Level - High: 1.5V~4.2V
Operating Temperature: -40℃~+125℃
Input Logic Level - Low: 500mV~1.8V
Quiescent Current(Iq): 2uA
Number of Channels: 6
Current - Output Low(IOL): 5.2mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.259 g

Overview

The SN74HC/HCT06 contains six inverters. The outputs of the SN74HC/HCT06 are open-drain and can be connected to other open-drain outputs to implement active-LOW wired-OR or active-HIGH wiredAND functions. The open-drain outputs require pull-up resistors to perform correctly.
