TIDatasheet (PDF)

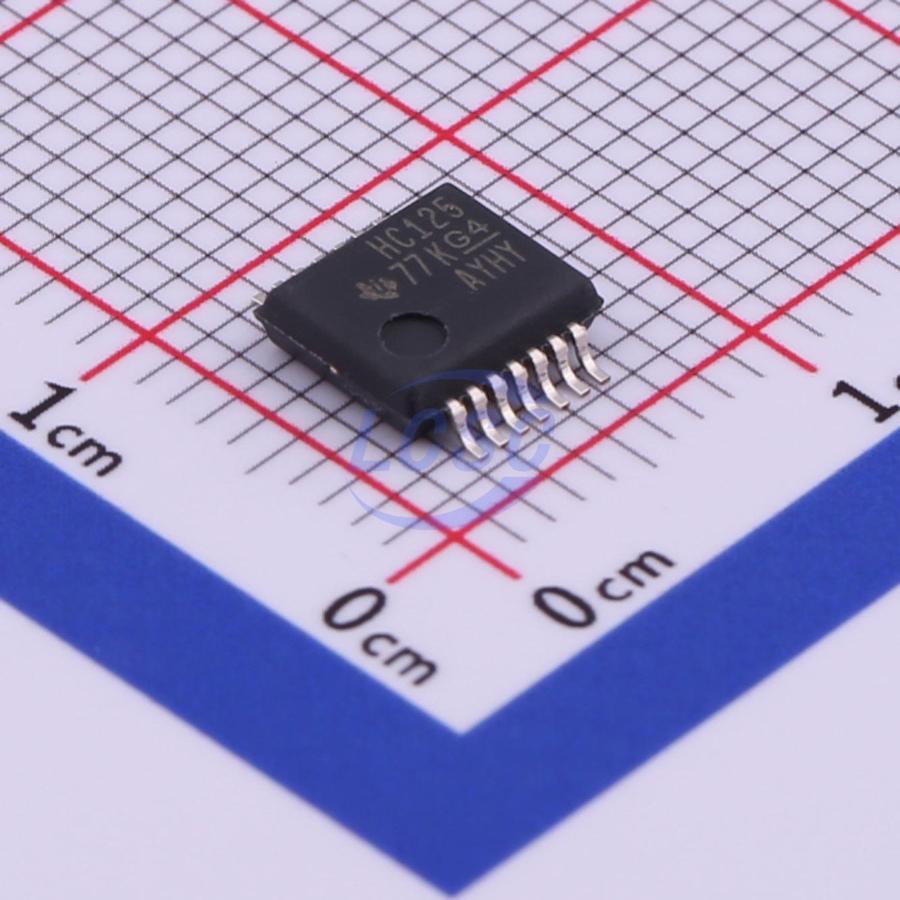

SN74HC125DBR
Buffer Tri-State Output SSOP-14-208mil
SSOP-14-208milROHS3 CompliantActive
Quadruple Bus Buffer Gates With 3-State Outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74HC125DBR
- Store part #
- C507233
- Package / case
- SSOP-14-208mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,080 in stock
#C507233
Stock & price checked 32 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.11 | ₹210.55 |
| 50+ | ₹33.06 | ₹1,653.00 |
| 150+ | ₹28.64 | ₹4,296.00 |
| 500+ | ₹24.70 | ₹12,350.00 |
| 2,000+ | ₹23.62 | ₹47,240.00 |
| 4,000+ | ₹22.97 | ₹91,880.00 |
5 × ₹42.11
₹210.55
excl. GST
₹248.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HC125DBR
₹210.55 for 5 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 7.8mA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 7.8mA
- Number of Bits per Element
- 1
- Channel Type
- Bidirectional
- Number of Elements
- 4
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 80uA
- Propagation Delay
- 14ns@4.5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.196 g
Overview
This device contains four independent buffers with three-state outputs. Each logic gate performs the Boolean function Y = A in positive logic.
Applications
- TV Set - Top Boxes and DVRs
- E - meters
- Smart Grids: Transmission Line Monitoring
- Printers and Computer Peripherals
- Building Security: Control Panels
- IP Phones
- Test and Measurement: Range Readers
- Smart Grids: Distribution Feeder Protection Relay
Key features
- Wide Operating Voltage Range of 2 V to 6 V
- High - Current 3 - State Outputs Interface Directly With System Bus or Can Drive Up to 15 LSTTL Loads
- Low Power Consumption, 80 μA Maximum ICC
- Typical Delta t_pd = 11 ns
- ±6 - mA Output Drive at 5 V
- Low Input Current of 1 μA Maximum
