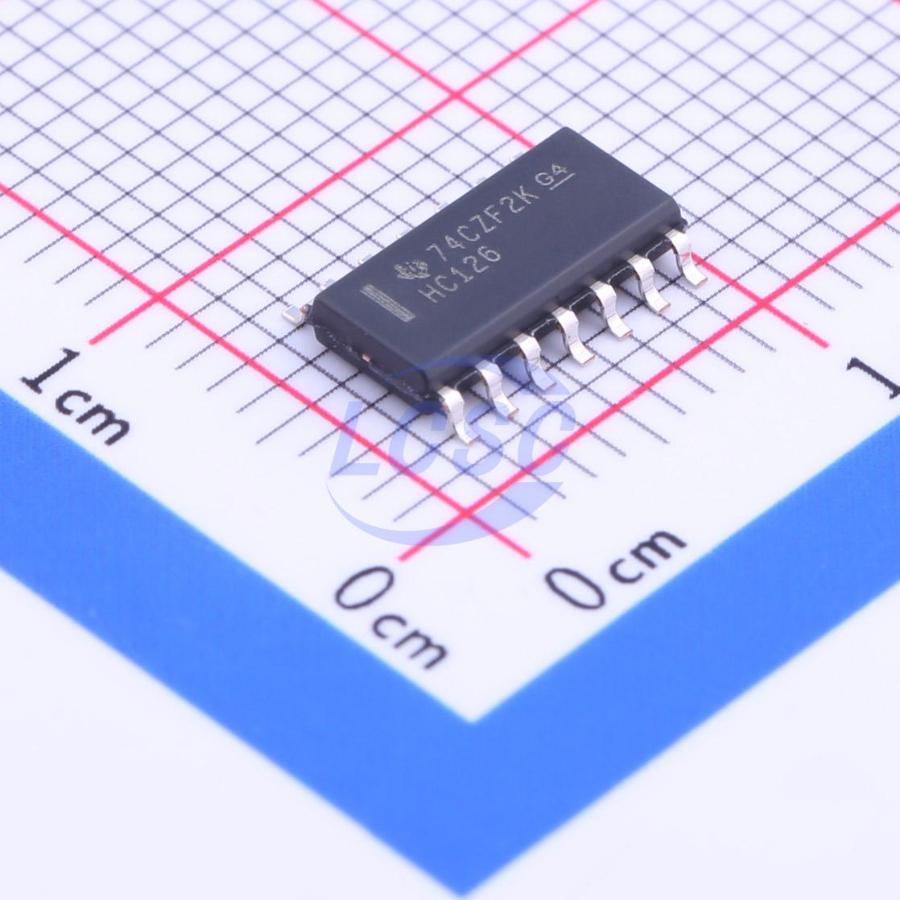

SN74HC126DR
2V~6V 1 4 24ns@4.5V,50pF SOIC-14 Buffers, Drivers, Receivers, Transceivers RoHS
SOIC-14ROHS3 CompliantActive
QUADRUPLE BUS BUFFER GATES WITH 3-STATE OUTPUTS
- Manufacturer
- TI
- Manufacturer part #
- SN74HC126DR
- Store part #
- C7644
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,140 in stock
#C7644
Stock & price checked 42 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.21 | ₹221.05 |
| 50+ | ₹34.90 | ₹1,745.00 |
| 150+ | ₹30.92 | ₹4,638.00 |
| 500+ | ₹25.93 | ₹12,965.00 |
| 2,500+ | ₹22.48 | ₹56,200.00 |
| 5,000+ | ₹21.15 | ₹1,05,750.00 |
5 × ₹44.21
₹221.05
excl. GST
₹260.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HC126DR
₹221.05 for 5 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 7.8mA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 7.8mA
- Number of Bits per Element
- 1
- Channel Type
- Bidirectional
- Number of Elements
- 4
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 80uA
- Propagation Delay
- 24ns@4.5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.264 g
Overview
These quadruple bus buffer gates feature independent line drivers with 3- state outputs. Each output is disabled when the associated output- enable (OE) input is low. To ensure the high- impedance state during power up or power down, OE should be tied to GND through a pullup resistor; the minimum value of the resistor is determined by the current- sourcing capability of the driver.
Applications
- System bus interface driver
Key features
- Wide Operating Voltage Range of 2 V to 6 V
- High- Current 3- State Outputs
- Interface Directly With System Bus or Can Drive Up To 15 LSTTL Loads
- Low Power Consumption, 80- μA Max ICC
- Typical tpd = 11 ns
- ±6- mA Output Drive at 5 V
- Low Input Current of 1 μA Max
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CD74HC125M96#C2675777TI · SOIC-14 | TI | SOIC-14 | 22 | ₹111.81 · 22 in stock | View |
 | AiP74HC126SA14.TR#C51940067Wuxi I-core Elec · SOP-14 | Wuxi I-core Elec | SOP-14 | 70 | ₹21.08 · 70 in stock | View |
