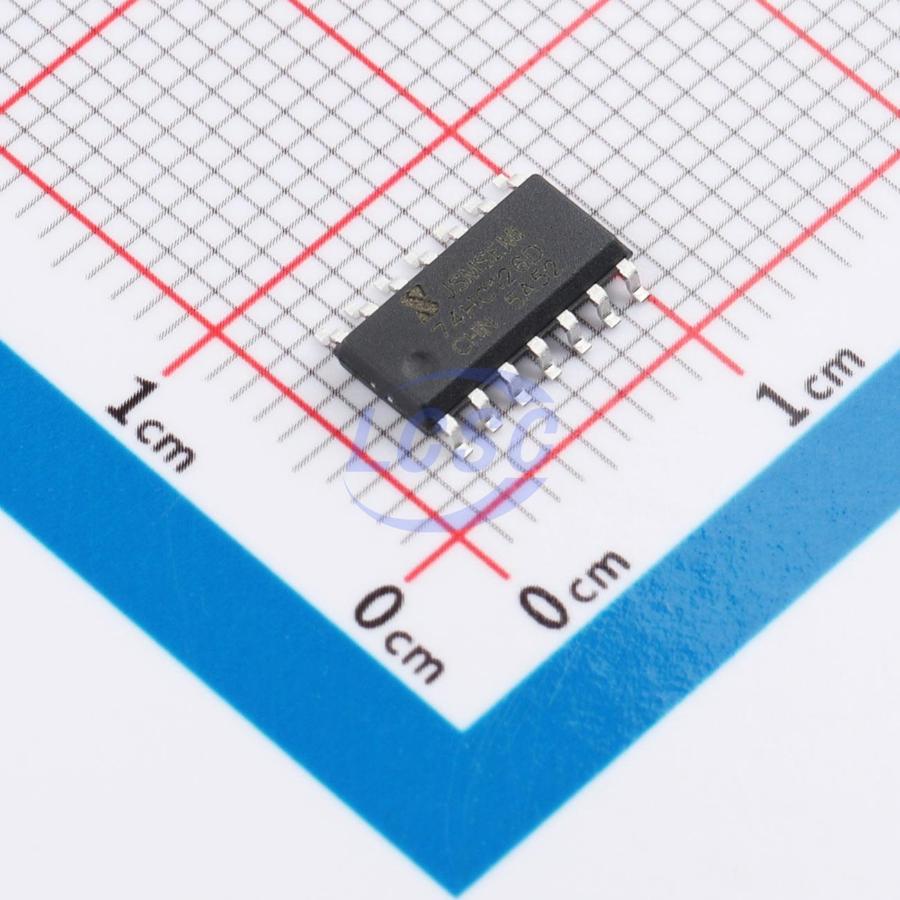

JSMSEMI

SN74HC126DR-JSM

2V~6V 4 11ns@4.5V,15pF SOP-14 Buffers, Drivers, Receivers, Transceivers RoHS

SOP-14ROHS CompliantActive

Manufacturer: JSMSEMI
Manufacturer part #: SN74HC126DR-JSM
Store part #: C53114347
Package / case: SOP-14
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,160 in stock

#C53114347

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹18.65	₹93.25
50+	₹14.86	₹743.00
150+	₹12.97	₹1,945.50
500+	₹11.54	₹5,770.00
2,500+	₹10.40	₹26,000.00
5,000+	₹9.83	₹49,150.00

Quantity (min 5, multiples of 5)

5 × ₹18.65

₹93.25

excl. GST

₹110.04 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SN74HC126DR-JSM

₹93.25 for 5 + GST

Specifications

Current - Output High(IOH): 35mA
Series: 74HC
Voltage - Supply: 2V~6V
Output Type: Tri-State
Current - Output Low(IOL): 35mA
Channel Type: Unidirectional
Number of Elements: 4
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 160uA
Propagation Delay: 11ns@4.5V,15pF

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.283 g

Overview

SN74HC126DR-JSM is a quadruple buffer/line driver with 3-state outputs controlled by the output-enable input (nOE). When nOE is low, the outputs are placed in a high-impedance state. Clamp diodes are integrated on the outputs, allowing input interfacing to voltages higher than ΔVCC through current-limiting resistors.
