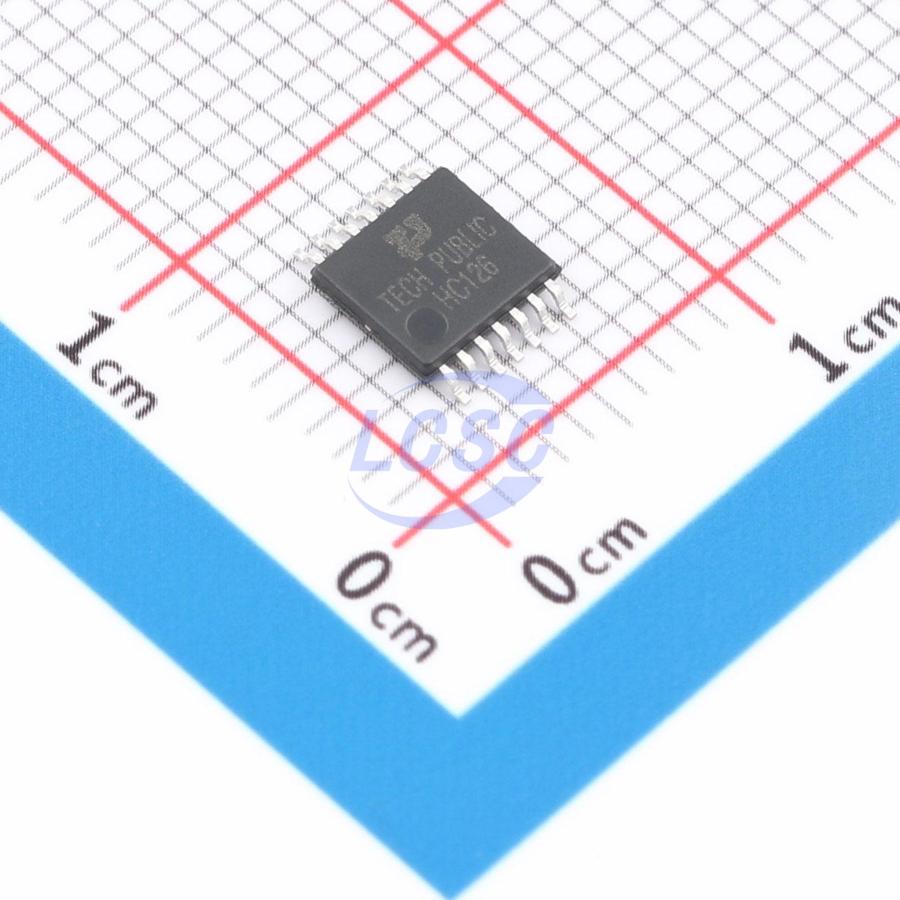

SN74HC126PWR-TP
Schmitt trigger 2V~6V 4 1 TSSOP-14 Buffers, Drivers, Receivers, Transceivers
TSSOP-14RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74HC126PWR-TP
- Store part #
- C54561937
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,490 in stock
#C54561937
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.98 | ₹164.90 |
| 50+ | ₹25.80 | ₹1,290.00 |
| 150+ | ₹22.72 | ₹3,408.00 |
| 500+ | ₹18.87 | ₹9,435.00 |
| 2,500+ | ₹17.16 | ₹42,900.00 |
| 5,000+ | ₹16.13 | ₹80,650.00 |
5 × ₹32.98
₹164.90
excl. GST
₹194.58 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HC126PWR-TP
₹164.90 for 5 + GST
Specifications
- Input type
- Schmitt trigger
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Number of Bits per Element
- 4
- Channel Type
- Unidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 10uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.192 g
Overview
This is a quad buffer/line driver with 3-state outputs controlled by an output enable input (nOE). When nOE is HIGH, the outputs are in a high-impedance off-state. The inputs can be driven by 3.3V or 5V devices. This feature allows these devices to be used as translators in mixed 3.3V and 5V environments. Schmitt-trigger action on all inputs enables the circuit to tolerate slower input rise and fall times.
Key features
- Wide supply voltage range: 2.0V to 6.0V
- CMOS low power consumption
- Overvoltage-tolerant inputs up to 6.0V
- Latch-up performance exceeds 250mA
- Direct TTL-level interface capability
- ESD protection: HBM ANSI/ESDA/JEDEC JS-003 Class A exceeds 6000V, CDM ANSI/ESDA/JEDEC JS-002 C3 exceeds 2000V
- I<sub>OFF</sub> circuitry enables partial power-down mode operation
- JEDEC standard compliant: JESD8-5 (2.3V to 2.7V), JESD8C (2.7V to 3.6V), JESD36 (4.5V to 5.5V)
- Package: TSSOP-14
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74HC126PW-TP#C54561791TECH PUBLIC · TSSOP-14 | TECH PUBLIC | TSSOP-14 | 2,395 | ₹27.31 · 2,395 in stock | View |
 | 74AHC125PW-TP#C54561784TECH PUBLIC · TSSOP-14 | TECH PUBLIC | TSSOP-14 | 2,660 | ₹38.23 · 2,660 in stock | View |
 | MC74VHC125DTR2G-TP#C54561869TECH PUBLIC · TSSOP-14 | TECH PUBLIC | TSSOP-14 | 205 | ₹40.96 · 205 in stock | View |
