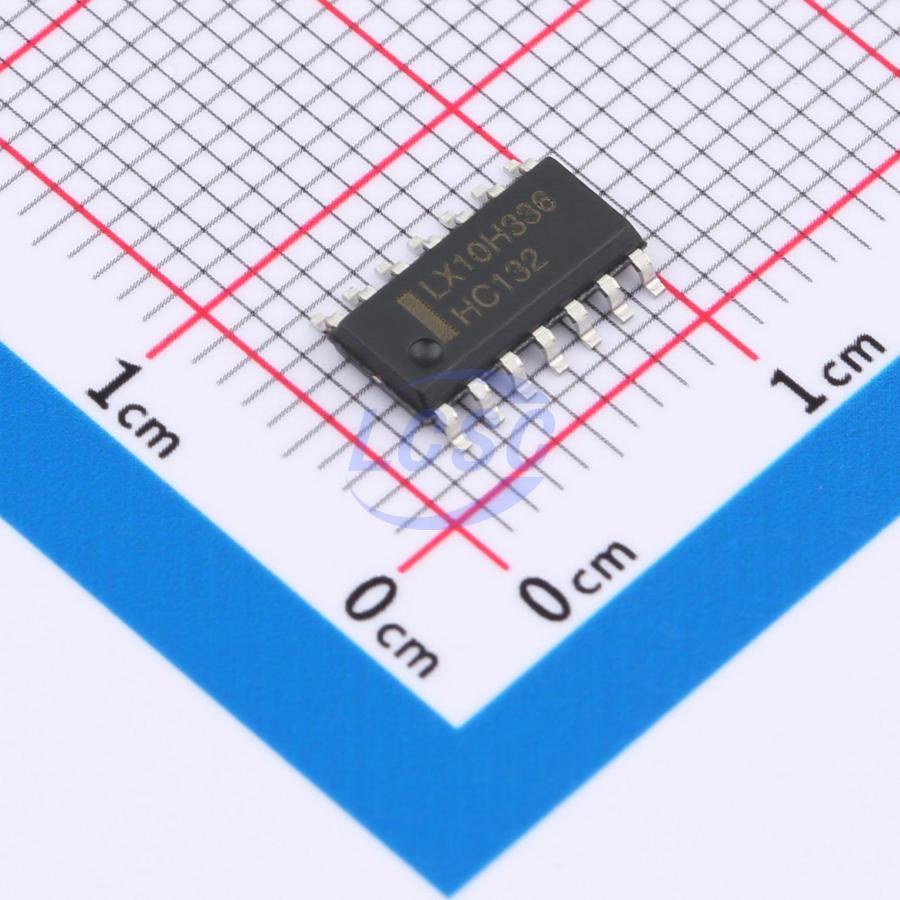

SN74HC132DR(LX)
NAND Gate IC 4 Channel SOP-14
SOP-14RoHSActive
SN74HC/HCT132 Quad 2-Input Schmitt NAND Gates
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74HC132DR(LX)
- Store part #
- C22436986
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,085 in stock
#C22436986
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.79 | ₹88.95 |
| 50+ | ₹14.37 | ₹718.50 |
| 150+ | ₹12.65 | ₹1,897.50 |
| 500+ | ₹11.35 | ₹5,675.00 |
| 2,500+ | ₹9.83 | ₹24,575.00 |
| 4,000+ | ₹9.31 | ₹37,240.00 |
5 × ₹17.79
₹88.95
excl. GST
₹104.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SN74HC132DR(LX)
₹88.95 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74HC Series
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 260mV
- Propagation Delay
- 21ns@6V,50pF
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 4.4V~4.5V;3.98V~4.32V;5.48V~5.81V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.216 g
Overview
The SN74HC/HCT132 is a quadruple 2-input NAND gate with Schmitt-trigger inputs. The inputs include clamping diodes, allowing input interfacing to voltages higher than VCC through current-limiting resistors. The Schmitt-trigger inputs convert slowly changing input signals into clean, bounce-free output signals. This product meets the requirements.
Key features
- SN74HC132: CMOS input levels
- SN74HCT132: TTL input levels
- Low power consumption
- Operating temperature range: -40°C ~ +125°C
- Package options: DIP14, SOP14, TSSOP14
