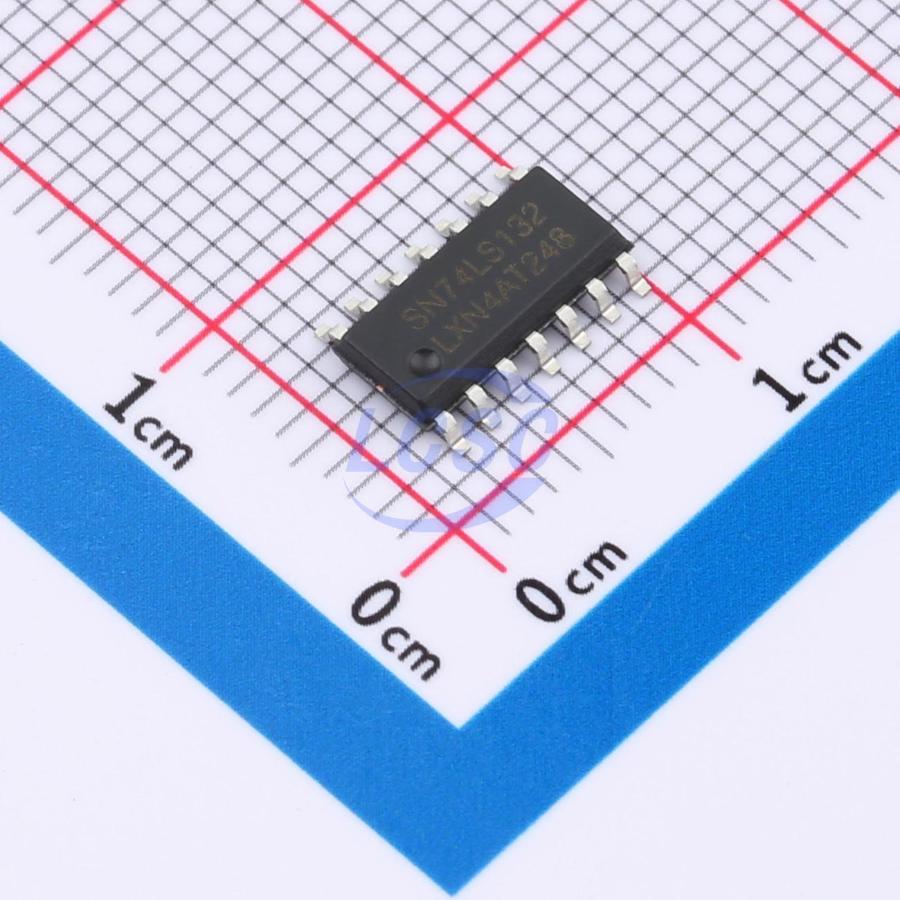

SN74LS132DR(LX)
NAND Gate IC 4 Channel SOP-14
SOP-14RoHSActive
Quad 2-Input Schmitt NAND Gates
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74LS132DR(LX)
- Store part #
- C22384795
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,360 in stock
#C22384795
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.40 | ₹187.00 |
| 50+ | ₹29.01 | ₹1,450.50 |
| 150+ | ₹25.43 | ₹3,814.50 |
| 500+ | ₹20.94 | ₹10,470.00 |
| 2,500+ | ₹18.96 | ₹47,400.00 |
| 5,000+ | ₹17.75 | ₹88,750.00 |
5 × ₹37.40
₹187.00
excl. GST
₹220.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74LS132DR(LX)
₹187.00 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74LS Series
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 21ns@6V
- Output Logic Level - Low
- 100mV~260mV
- Input Logic Level - High
- 700mV~1.5V;1.7V~3.15V;2.1V~4.2V
- Input Logic Level - Low
- 300mV~1V;900mV~2.2V;1.2V~3V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V~5.9V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.258 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC132DR(LX)#C22436986lingxingic · SOP-14 | lingxingic | SOP-14 | 4,085 | ₹17.79 · 4,085 in stock | View |
 | SN74LS00DR(LX)#C22374088lingxingic · SOP-14 | lingxingic | SOP-14 | 380 | ₹22.29 · 380 in stock | View |
 | SN74LS01DR(LX)#C22449648lingxingic · SOP-14 | lingxingic | SOP-14 | 105 | ₹46.98 · 105 in stock | View |
 | SN74HC01DR(LX)#C22449647lingxingic · SOP-14 | lingxingic | SOP-14 | 390 | ₹41.42 · 390 in stock | View |
 | SN74HC00DR(LX)#C22436971lingxingic · SOP-14 | lingxingic | SOP-14 | 2,840 | ₹12.95 · 2,840 in stock | View |
