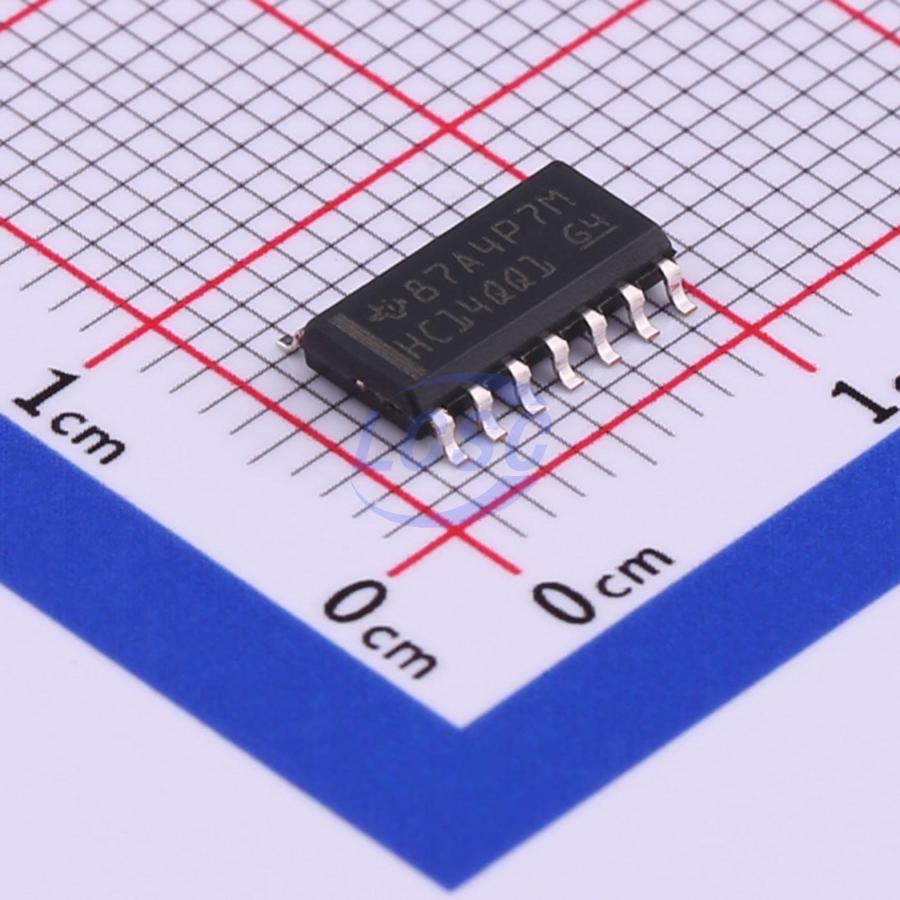

SN74HC14QDRQ1
Schmitt trigger 2V~6V 21ns@6V,50pF 2uA 6 SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
Automotive Hex Inverters with Schmitt-Trigger Inputs
- Manufacturer
- TI
- Manufacturer part #
- SN74HC14QDRQ1
- Store part #
- C507235
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,149 in stock
#C507235
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹78.18 | ₹78.18 |
| 10+ | ₹66.96 | ₹669.60 |
| 30+ | ₹58.97 | ₹1,769.10 |
| 100+ | ₹52.48 | ₹5,248.00 |
| 500+ | ₹50.33 | ₹25,165.00 |
| 1,000+ | ₹49.03 | ₹49,030.00 |
1 × ₹78.18
₹78.18
excl. GST
₹92.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HC14QDRQ1
₹78.18 for 1 + GST
Specifications
- output type
- Push-pull
- Input Type
- Schmitt trigger
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 21ns@6V,50pF
- Features
- Noise suppression function
- Input Logic Level - Low
- 300mV~1.2V
- Input Logic Level - High
- 1.5V~4.2V
- Operating Temperature
- -40℃~+125℃
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 6
- Current - Output High(IOH)
- 5.2mA
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.34 g
Overview
This device contains six independent inverters with Schmitt-trigger inputs. Each gate performs the Boolean function Y = A(overline) in positive logic.
Applications
- Synchronize inverted clock inputs
- Debounce a switch
- Invert a digital signal
Key features
- AEC-Q100 Qualified for automotive applications: Device temperature grade 1: -40℃ to +125℃, TA
- Schmitt-trigger inputs allow for slow or noisy input signals
- Positive and negative input clamp diodes
- Wide operating voltage range: 2V to 6V
- Supports fanout up to 10 LSTTL loads
- Significant power reduction compared to LSTTL logic ICs
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SN74HC14QDRG4Q1#C2866606TI · SOIC-14 | TI | SOIC-14 | 1 | ₹98.97 · 1 in stock | View | |
 | 74HC14D-Q100,118#C546588Nexperia · SOP-14 | Nexperia | SOP-14 | 7,455 | ₹35.03 · 7,455 in stock | View |
 | 74HC14D,653#C5605Nexperia · SOIC-14 | Nexperia | SOIC-14 | 1,59,610 | ₹13.67 · 1,59,610 in stock | View |
 | AiP74HC14SA14.TR#C5139325Wuxi I-core Elec · SOP-14 | Wuxi I-core Elec | SOP-14 | 7,505 | ₹19.32 · 7,505 in stock | View |
 | 74HC14S14-13#C130461DIODES · SOIC-14 | DIODES | SOIC-14 | 10,355 | ₹29.65 · 10,355 in stock | View |
