74HC14S14-13
Schmitt trigger 2V~6V 21ns@6V,50pF 20uA 6 SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive

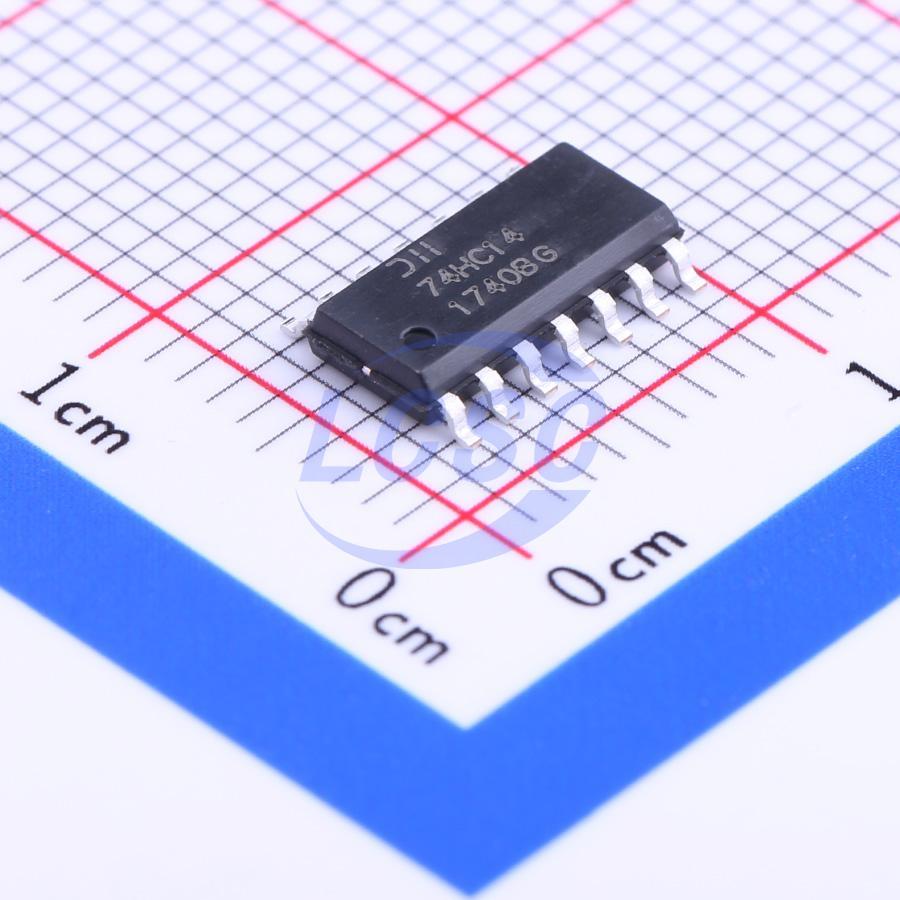

HEX INVERTER WITH SCHMITT TRIGGER INPUTS
- Manufacturer
- DIODES
- Manufacturer part #
- 74HC14S14-13
- Store part #
- C130461
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,350 in stock
#C130461
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.70 | ₹138.50 |
| 50+ | ₹21.79 | ₹1,089.50 |
| 150+ | ₹19.26 | ₹2,889.00 |
| 500+ | ₹16.10 | ₹8,050.00 |
| 2,500+ | ₹14.69 | ₹36,725.00 |
| 5,000+ | ₹13.85 | ₹69,250.00 |
5 × ₹27.70
₹138.50
excl. GST
₹163.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC14S14-13
₹138.50 for 5 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74HC
- Input Type
- Schmitt trigger
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 21ns@6V,50pF
- Features
- Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 300mV~1.2V
- Input Logic Level - High
- 1.5V~4.2V
- Output Logic Level - High
- 3.84V
- Quiescent Current(Iq)
- 20uA
- Number of Channels
- 6
- Current - Output High(IOH)
- 5.2mA
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.459 g
Overview
The 74HC14 provides provides six independent Schmitt trigger input inverters with standard push - pull outputs. The device is designed for operation with a power supply range of 2.0V to 6.0V. The gates perform the Boolean function: Y = A(overline)
Applications
- General Purpose Logic
- PCs, Networking, Notebooks, Netbooks
- Computer Peripherals, Hard Drives, CD/DVD ROM
- TV, DVD, DVR, Set Top Box
Key features
- Wide Supply Voltage Range from 2.0V to 6.0V
- Sinks or Sources 4mA at VCC = 4.5V
- CMOS Low Power Consumption
- Schmitt Trigger Action at All Inputs
- ESD Protection Exceeds JESD 22 200 - V Machine Model (A115 - A) 2000 - V Human Body Model (A114 - A) Exceeds 1000 - V Charged Device Model (C101C)
- Range of Package Options SO - 14 and TSSOP - 14
- Totally Lead - Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
