XBLW

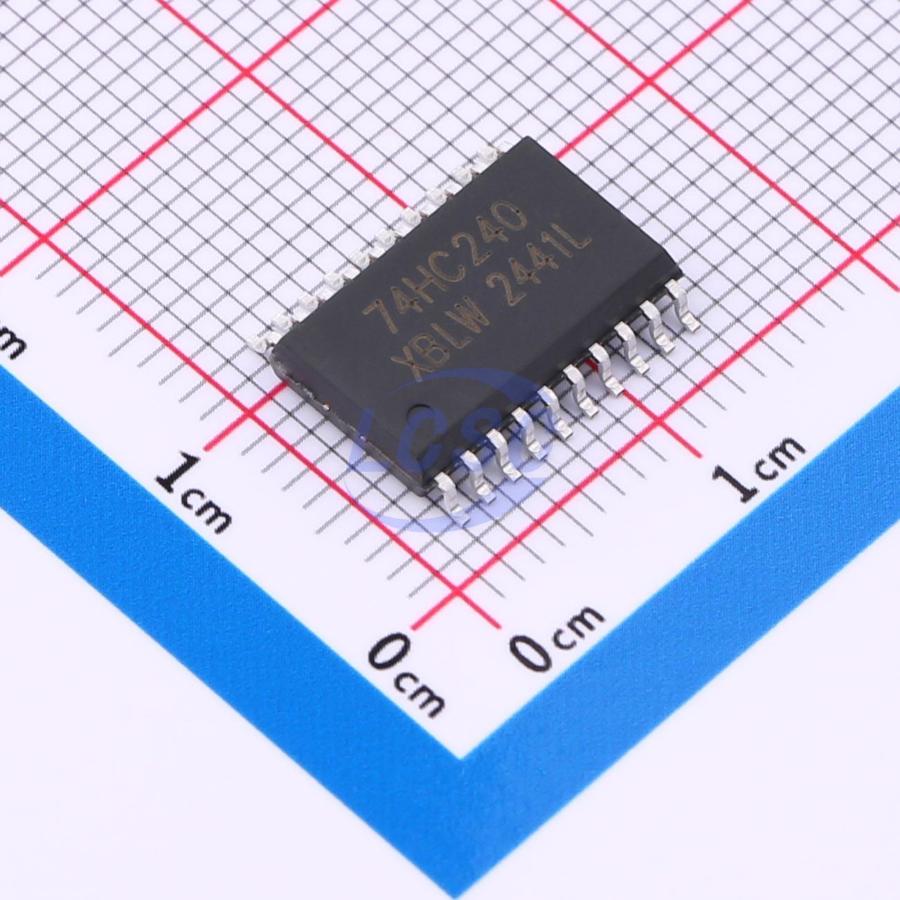

SN74HC240DTR(XBLW)

2V~6V 8 2 9ns@5V,15pF SOP-20 Buffers, Drivers, Receivers, Transceivers RoHS

SOP-20ROHS CompliantActive

Octal Buffers and Line Drivers With 3-State Outputs

Manufacturer: XBLW
Manufacturer part #: SN74HC240DTR(XBLW)
Store part #: C42395515
Package / case: SOP-20
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,410 in stock

#C42395515

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹32.45	₹162.25
50+	₹25.38	₹1,269.00
150+	₹22.35	₹3,352.50
500+	₹18.56	₹9,280.00
2,000+	₹16.87	₹33,740.00
4,000+	₹15.86	₹63,440.00

Quantity (min 5, multiples of 5)

5 × ₹32.45

₹162.25

excl. GST

₹191.46 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

SN74HC240DTR(XBLW)

₹162.25 for 5 + GST

Specifications

Function: Output enable
Series: 74HC
Voltage - Supply: 2V~6V
Output Type: Tri-State
Number of Bits per Element: 8
Channel Type: Unidirectional
Operating Temperature: -40℃~+105℃
Number of Elements: 2
Quiescent Supply Current: 8uA
Propagation Delay: 9ns@5V,15pF

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.764 g

Overview

The SN74HC240 is an 8-bit inverting buffer/line driver with 3-state outputs. The device can be used as two 4-bit buffers or one 8-bit buffer. The device features two output enables (1OE and 2OE), each controlling four of the 3-state outputs. A HIGH on nOE causes the outputs to assume a high-impedance OFF-state. Inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of Vcc
