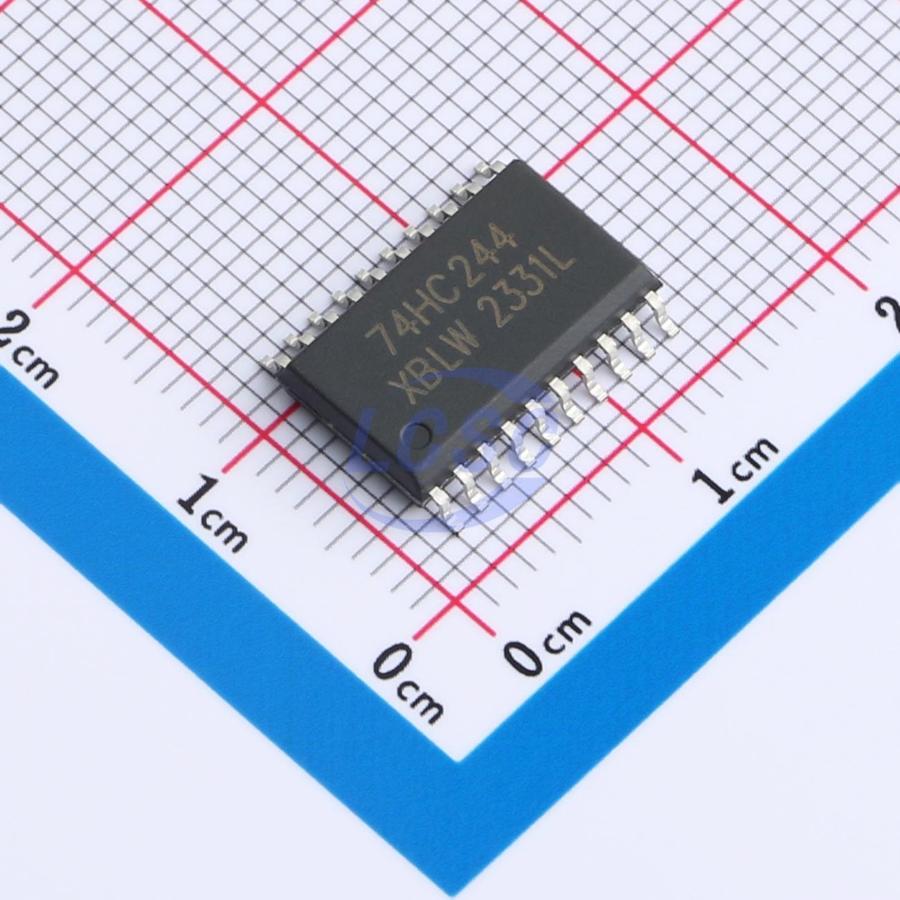

SN74HC244DTR(XBLW)
2V~6V 4 2 11ns@4.5V,50pF SOP-20 Buffers, Drivers, Receivers, Transceivers RoHS
SOP-20ROHS CompliantActive
Octal Buffer/Line Driver; 3-state
- Manufacturer
- XBLW
- Manufacturer part #
- SN74HC244DTR(XBLW)
- Store part #
- C18723515
- Package / case
- SOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,335 in stock
#C18723515
Stock & price checked 38 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.84 | ₹109.20 |
| 50+ | ₹16.93 | ₹846.50 |
| 150+ | ₹14.83 | ₹2,224.50 |
| 500+ | ₹12.20 | ₹6,100.00 |
| 2,000+ | ₹11.03 | ₹22,060.00 |
| 4,000+ | ₹10.33 | ₹41,320.00 |
5 × ₹21.84
₹109.20
excl. GST
₹128.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HC244DTR(XBLW)
₹109.20 for 5 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 20uA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 4mA
- Number of Bits per Element
- 4
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+105℃
- Quiescent Supply Current
- 8uA
- Propagation Delay
- 11ns@4.5V,50pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.756 g
Overview
The SN74HC244 is a 8-bit buffer/line driver with 3-state outputs. The device can be used as two 4-bit buffers or one 8-bit buffer. The device features two output enables (1OE and 2OE), each controlling four of the 3-state outputs. A HIGH on nOE causes the outputs to assume a high-impedance OFF-state. Inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Key features
- Octal bus interface
- Non-inverting 3-state outputs
- Specified from -40℃ to +125℃
- Packaging information: DIP-20/SOP-20/TSSOP-20/SOIC-20-208mil
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LS240DTR(XBLW)#C54525279XBLW · SOP-20 | XBLW | SOP-20 | 230 | ₹42.40 · 230 in stock | View |
 | SN74LS244DTR(XBLW)#C54525280XBLW · SOP-20 | XBLW | SOP-20 | 496 | ₹56.35 · 496 in stock | View |
