lingxingic

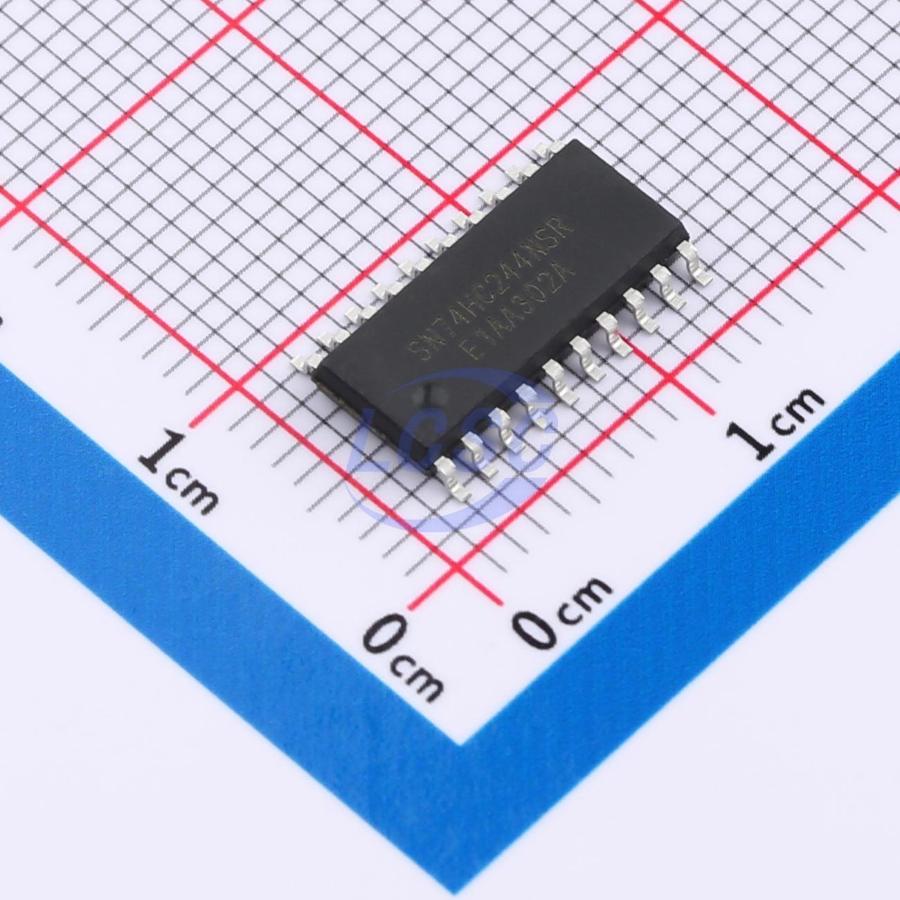

SN74HC244NSR(LX)

Buffer Driver 2 Element 4 Bit per Element Tri-State Output SOIC-20-208mil

SOIC-20-208milRoHSActive

8-channel buffer/line driver with three-state control

Manufacturer: lingxingic
Manufacturer part #: SN74HC244NSR(LX)
Store part #: C22374047
Package / case: SOIC-20-208mil
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,350 in stock

#C22374047

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹35.67	₹178.35
50+	₹28.34	₹1,417.00
150+	₹25.19	₹3,778.50
500+	₹19.82	₹9,910.00
2,000+	₹18.07	₹36,140.00
4,000+	₹17.03	₹68,120.00

Quantity (min 5, multiples of 5)

5 × ₹35.67

₹178.35

excl. GST

₹210.45 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

SN74HC244NSR(LX)

₹178.35 for 5 + GST

Specifications

Function: Output enable
Current - Output High(IOH): 7.8mA
Series: 74HC
Voltage - Supply: 2V~6V
Output Type: Tri-State
Current - Output Low(IOL): 7.8mA
Number of Bits per Element: 4
Channel Type: Unidirectional
Number of Elements: 2
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 8uA
Propagation Delay: 11ns@4.5V,50pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.561 g

Overview

The SN74HC/HCT244 is an 8-bit buffer/line driver with 3-state outputs. The device can be used as two 4-bit buffers or one 8-bit buffer. It features two output enable inputs (1OE and 2OE), each controlling four of the 3-state outputs. A HIGH on nOE causes the outputs to assume a high-impedance state. Input clamping diodes are provided, allowing current-limiting resistors to be used for interfacing inputs to voltages exceeding VCC.
