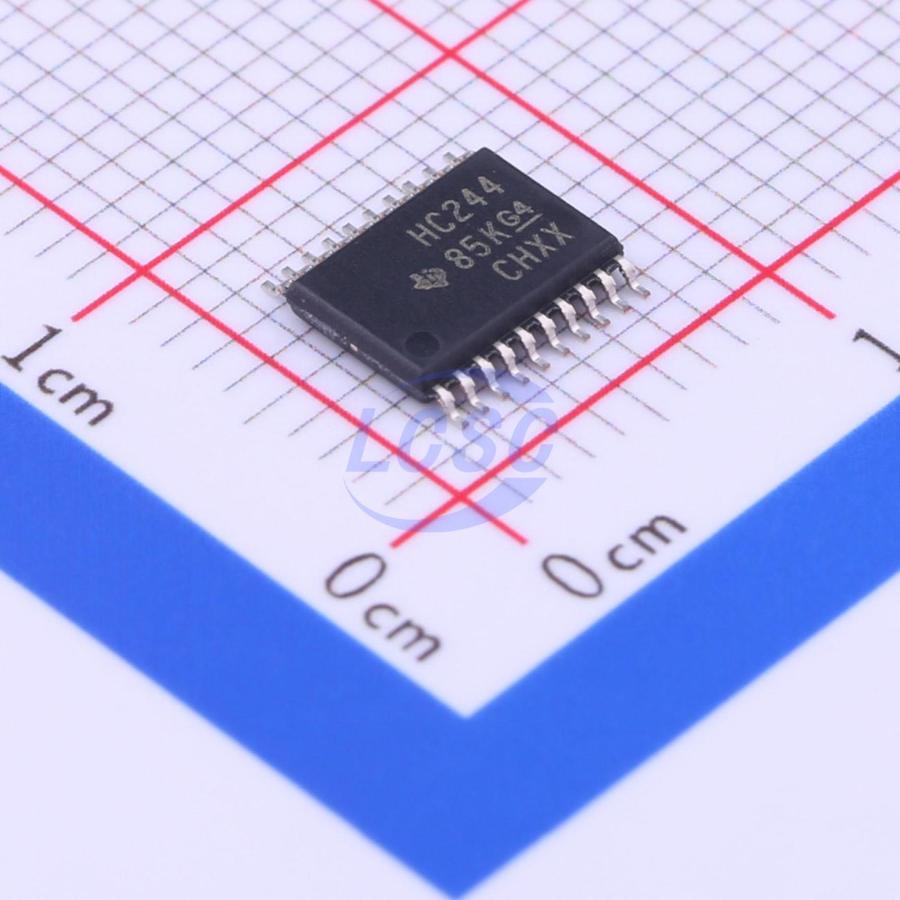

SN74HC244PWR
2V~6V 4 2 20ns@6V,50pF TSSOP-20 Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-20ROHS3 CompliantActive
OCTAL BUFFERS AND LINE DRIVERS WITH 3-STATE OUTPUTS
- Manufacturer
- TI
- Manufacturer part #
- SN74HC244PWR
- Store part #
- C6835
- Package / case
- TSSOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16,045 in stock
#C6835
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.31 | ₹236.55 |
| 50+ | ₹37.11 | ₹1,855.50 |
| 150+ | ₹32.14 | ₹4,821.00 |
| 500+ | ₹27.69 | ₹13,845.00 |
| 2,000+ | ₹26.47 | ₹52,940.00 |
| 4,000+ | ₹25.75 | ₹1,03,000.00 |
5 × ₹47.31
₹236.55
excl. GST
₹279.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HC244PWR
₹236.55 for 5 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 7.8mA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 7.8mA
- Number of Bits per Element
- 4
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 80uA
- Propagation Delay
- 20ns@6V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.334 g
Overview
These octal buffers and line drivers are designed specifically to improve both the performance and density of 3- state memory address drivers, clock drivers, and bus- oriented receivers and transmitters. The 'HC244 devices are organized as two 4- bit buffers/drivers with separate output- enable (OE) inputs. When OE is low, the device passes noninverted data from the A inputs to the Y outputs. When OE is high, the outputs are in the high- impedance state.
Applications
- Memory address driving
- Clock driving
- Bus-oriented receivers
- Bus-oriented transmitters
Key features
- Wide Operating Voltage Range of 2 V to 6 V
- High- Current Outputs Drive Up To 15 LSTTL Loads
- 3- State Outputs Drive Bus Lines or Buffer Memory Address Registers
- Low Power Consumption, 80- μA Max Icc
- Typical tₚd = 11 ns
- ±6- mA Output Drive at 5 V
- Low Input Current of 1 μA Max
