TIDatasheet (PDF)

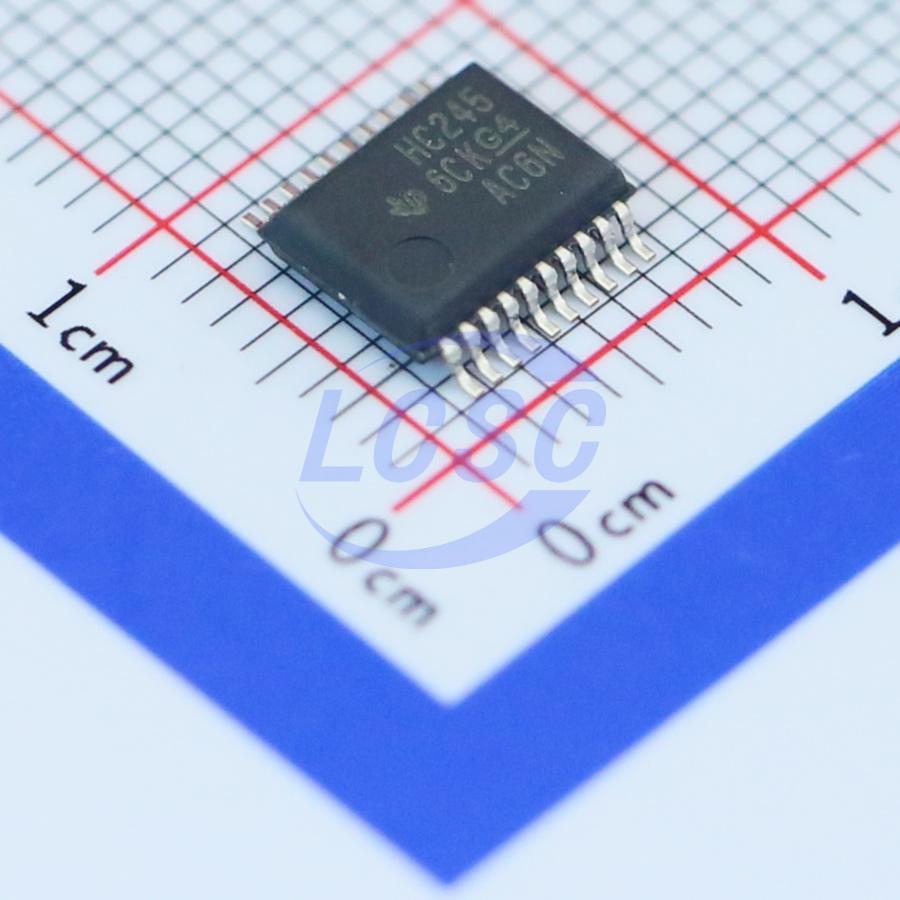

SN74HC245DBR
2V~6V 8 1 21ns@4.5V,50pF SSOP-20-208mil Buffers, Drivers, Receivers, Transceivers RoHS
SSOP-20-208milROHS3 CompliantActive
OCTAL BUSTRANSCEIVERS WITH 3-STATE OUTPUTS
- Manufacturer
- TI
- Manufacturer part #
- SN74HC245DBR
- Store part #
- C8161
- Package / case
- SSOP-20-208mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,387 in stock
#C8161
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹69.74 | ₹69.74 |
| 10+ | ₹52.89 | ₹528.90 |
| 30+ | ₹45.78 | ₹1,373.40 |
| 100+ | ₹36.70 | ₹3,670.00 |
| 500+ | ₹32.82 | ₹16,410.00 |
| 1,000+ | ₹30.23 | ₹30,230.00 |
1 × ₹69.74
₹69.74
excl. GST
₹82.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HC245DBR
₹69.74 for 1 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 7.8mA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 7.8mA
- Number of Bits per Element
- 8
- Channel Type
- Bidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 80uA
- Propagation Delay
- 21ns@4.5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.346 g
Overview
These octal bus transceivers are designed for asynchronous two-way communication between data buses. The control-function implementation minimizes external timing requirements. The devices allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so that the buses are effectively isolated.
Applications
- Asynchronous bidirectional communication between data buses
Key features
- Wide Operating Voltage Range of 2 V to 6 V
- High-Current 3-State Outputs Drive Bus Lines Directly or Up To 15 LSTTL Loads
- Low Power Consumption, 80- μA Max Icc
- Typical tpd = 12 ns
- ± 6 - mA Output Drive at 5 V
- Low Input Current of 1 μA Max
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LV245ADBR#C2675667TI · SSOP-20-208mil | TI | SSOP-20-208mil | 659 | ₹78.61 · 659 in stock | View |
| SN74HC245ADB#C3587373TI · SSOP-20 | TI | SSOP-20 | On request | Price on request | Quote | |
| 74HC245DB/C118#C3587198Nexperia · SSOP-20 | Nexperia | SSOP-20 | On request | Price on request | Quote | |
| 74HC245DB653#C3587585Nexperia · SSOP-20 | Nexperia | SSOP-20 | On request | Price on request | Quote | |
 | 74HC245DB,118#C80002Nexperia · SSOP-20-208mil | Nexperia | SSOP-20-208mil | On request | Price on request | Quote |
