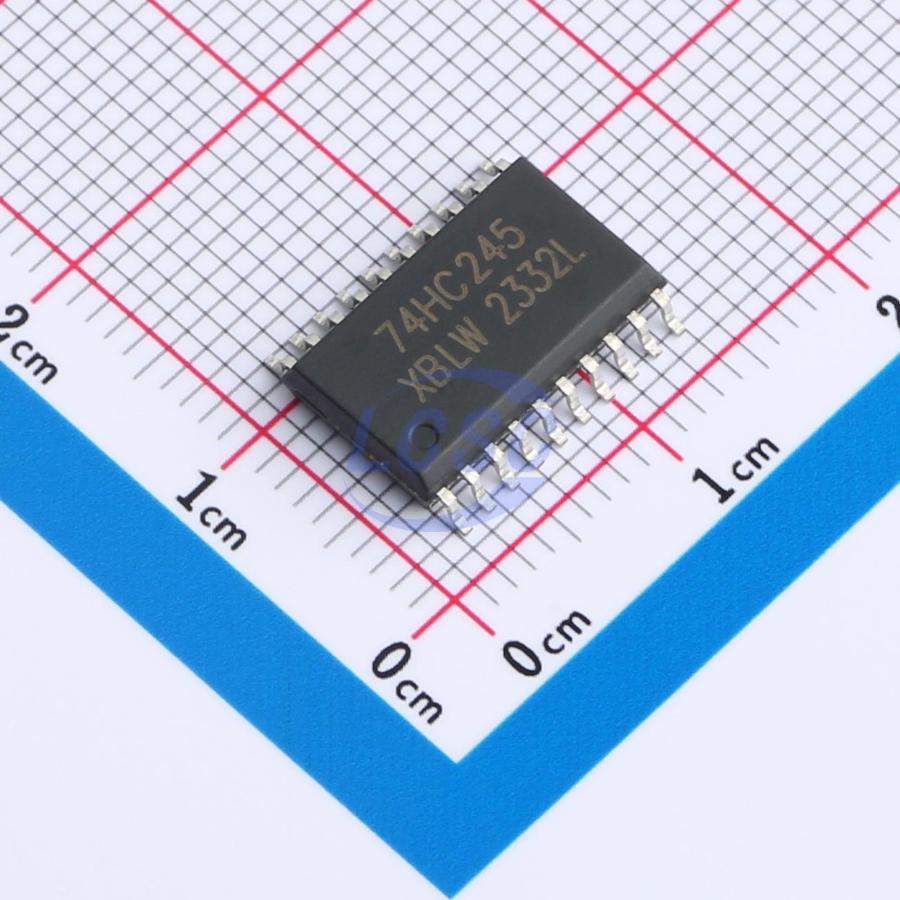

SN74HC245DTR(XBLW)
2V~6V 8 1 9ns@4.5V,15pF SOP-20 Buffers, Drivers, Receivers, Transceivers RoHS
SOP-20ROHS CompliantActive
Octal Bus Transceiver; 3-state
- Manufacturer
- XBLW
- Manufacturer part #
- SN74HC245DTR(XBLW)
- Store part #
- C18723517
- Package / case
- SOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17,240 in stock
#C18723517
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.54 | ₹107.70 |
| 50+ | ₹16.88 | ₹844.00 |
| 150+ | ₹14.88 | ₹2,232.00 |
| 500+ | ₹12.40 | ₹6,200.00 |
| 2,000+ | ₹11.29 | ₹22,580.00 |
| 4,000+ | ₹10.62 | ₹42,480.00 |
5 × ₹21.54
₹107.70
excl. GST
₹127.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HC245DTR(XBLW)
₹107.70 for 5 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 20uA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 6mA
- Number of Bits per Element
- 8
- Channel Type
- Bidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+105℃
- Quiescent Supply Current
- 8uA
- Propagation Delay
- 9ns@4.5V,15pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.771 g
Overview
The SN74HC245 is a 8-bit transceiver with 3-state outputs. The device features an output enable (OE (overline)) and send/receive (DIR) for direction control. A HIGH on OE causes the outputs to assume a high-impedance OFF-state. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of Vcc
Key features
- Octal bidirectional bus interface
- Non-inverting 3-state outputs
- Specified from -40 ℃ to +125 ℃
- Packaging information: DIP-20/SOP-20/TSSOP-20/SOIC-20-208mil
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LS245DTR(XBLW)#C54525281XBLW · SOP-20 | XBLW | SOP-20 | 961 | ₹56.35 · 961 in stock | View |
