TIDatasheet (PDF)

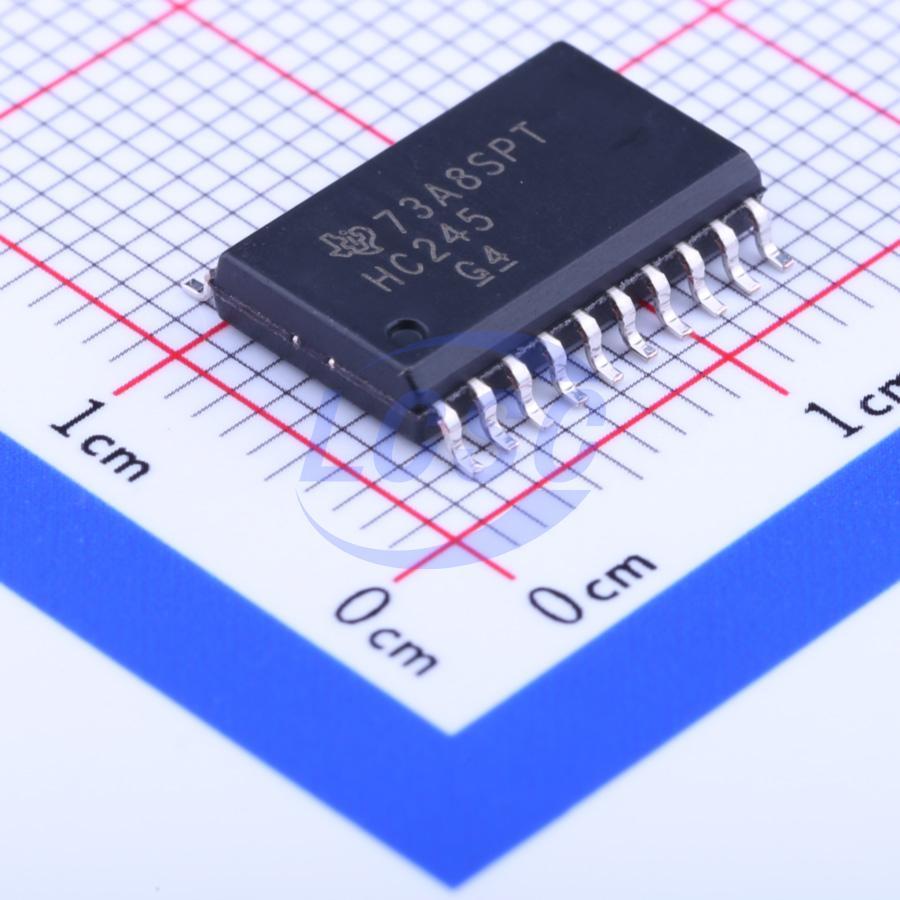

SN74HC245DWR
2V~6V 8 1 21ns@4.5V,50pF SOIC-20-300mil Buffers, Drivers, Receivers, Transceivers RoHS
SOIC-20-300milROHS3 CompliantActive
OCTAL BUSTRANSCEIVERS WITH 3-STATE OUTPUTS
- Manufacturer
- TI
- Manufacturer part #
- SN74HC245DWR
- Store part #
- C10093
- Package / case
- SOIC-20-300mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
21,115 in stock
#C10093
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹54.43 | ₹272.15 |
| 50+ | ₹43.00 | ₹2,150.00 |
| 150+ | ₹38.10 | ₹5,715.00 |
| 500+ | ₹29.66 | ₹14,830.00 |
| 2,000+ | ₹26.94 | ₹53,880.00 |
| 4,000+ | ₹25.30 | ₹1,01,200.00 |
5 × ₹54.43
₹272.15
excl. GST
₹321.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HC245DWR
₹272.15 for 5 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 7.8mA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 7.8mA
- Number of Bits per Element
- 8
- Channel Type
- Bidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 80uA
- Propagation Delay
- 21ns@4.5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.747 g
Overview
These octal bus transceivers are designed for asynchronous two-way communication between data buses. The control-function implementation minimizes external timing requirements. The devices allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so that the buses are effectively isolated.
Applications
- Asynchronous bidirectional communication between data buses
Key features
- Wide Operating Voltage Range of 2 V to 6 V
- High-Current 3-State Outputs Drive Bus Lines Directly or Up To 15 LSTTL Loads
- Low Power Consumption, 80-μA Max ICC
- Typical tpd = 12 ns
- ±6-mA Output Drive at 5 V
- Low Input Current of 1 μA Max
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC245DW#C354405TI · SOIC-20 | TI | SOIC-20 | 10 | ₹39.25 · 10 in stock | View |
 | SN74HC640NSR#C2675899TI · SO-20-300mil | TI | SO-20-300mil | 3 | ₹339.50 · 3 in stock | View |
 | MM74HC244WMX#C5624onsemi · SOIC-20-300mil | onsemi | SOIC-20-300mil | 83 | ₹139.74 · 83 in stock | View |
 | 74HC245BM/TR#C7432199HGSEMI · SOP-20-300mil | HGSEMI | SOP-20-300mil | 1,180 | ₹27.86 · 1,180 in stock | View |
 | SN74HC245D (LX)#C22374050lingxingic · SOP-20-300mil | lingxingic | SOP-20-300mil | 55 | ₹19.13 · 55 in stock | View |
