JSMSEMI

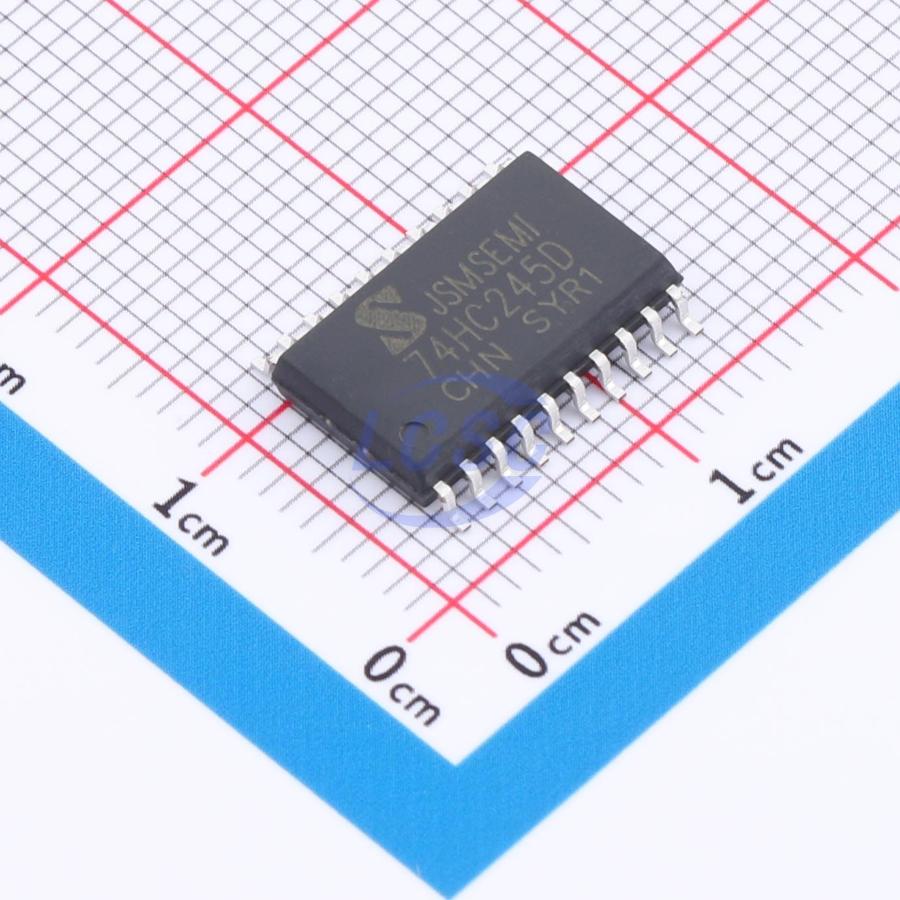

SN74HC245DWR-JSM

2V~6V 8 1 9ns@4.5V,50pF SOP-20-300mil Buffers, Drivers, Receivers, Transceivers RoHS

SOP-20-300milROHS CompliantActive

Manufacturer: JSMSEMI
Manufacturer part #: SN74HC245DWR-JSM
Store part #: C53436292
Package / case: SOP-20-300mil
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,530 in stock

#C53436292

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹23.32	₹116.60
50+	₹18.46	₹923.00
150+	₹16.37	₹2,455.50
500+	₹13.76	₹6,880.00
2,000+	₹12.59	₹25,180.00
4,000+	₹11.91	₹47,640.00

Quantity (min 5, multiples of 5)

5 × ₹23.32

₹116.60

excl. GST

₹137.59 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,000 per reel

SN74HC245DWR-JSM

₹116.60 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Series: 74HC
Voltage - Supply: 2V~6V
Output Type: Tri-State
Number of Bits per Element: 8
Channel Type: Bidirectional
Operating Temperature: -40℃~+125℃
Number of Elements: 1
Quiescent Supply Current: 8uA
Propagation Delay: 9ns@4.5V,50pF

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.851 g

Overview

The 74HC/HCT245 is an 8-bit bus transceiver circuit with 3-state control. It features an output enable port OE and a direction select port DIR for controlling transmit/receive operation. When OE is HIGH, the outputs are disabled in a high-impedance state. The inputs include built-in clamp diodes, allowing the input interface to be connected to voltages exceeding Vcc through current-limiting resistors.
