XBLW

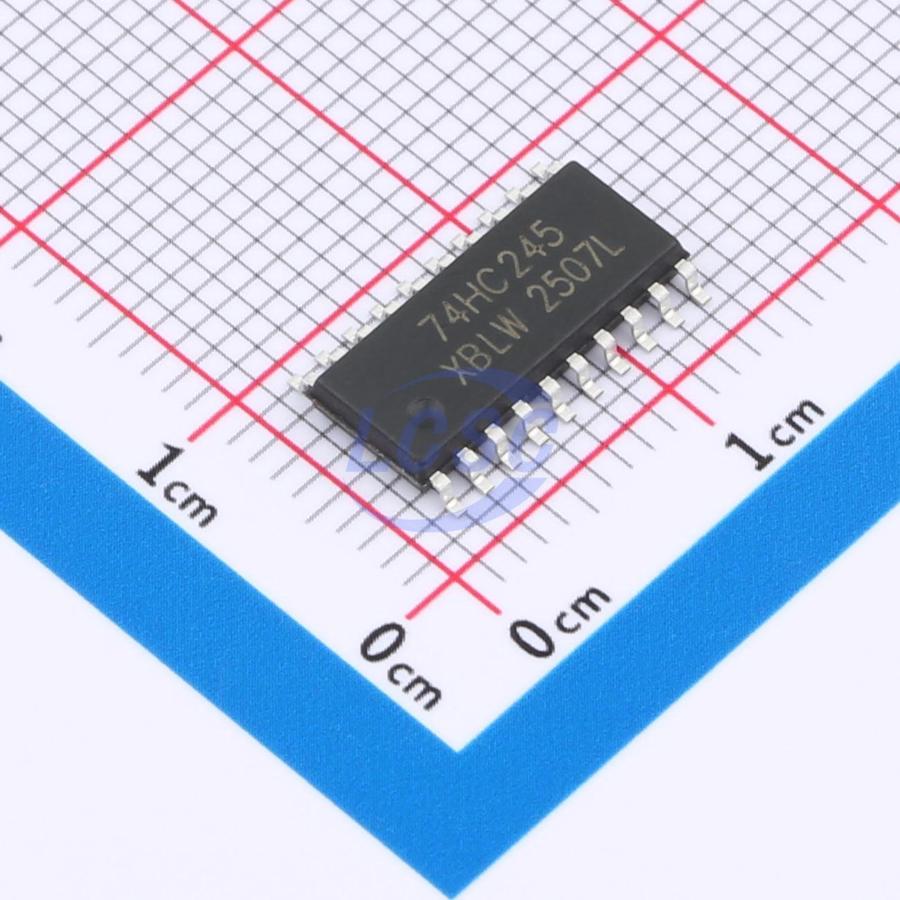

SN74HC245NSDTR(XBLW)

2V~6V 8 1 9ns@4.5V,15pF SOIC-20-208mil Buffers, Drivers, Receivers, Transceivers RoHS

SOIC-20-208milROHS CompliantActive

Octal Bus Transceiver; 3-state

Manufacturer: XBLW
Manufacturer part #: SN74HC245NSDTR(XBLW)
Store part #: C47021206
Package / case: SOIC-20-208mil
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,830 in stock

#C47021206

Stock & price checked 22 h ago

Quantity	Unit price	Pack price
5+	₹38.96	₹194.80
50+	₹30.55	₹1,527.50
150+	₹26.94	₹4,041.00
500+	₹22.44	₹11,220.00
2,000+	₹20.43	₹40,860.00
4,000+	₹19.22	₹76,880.00

Quantity (min 5, multiples of 5)

5 × ₹38.96

₹194.80

excl. GST

₹229.86 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

SN74HC245NSDTR(XBLW)

₹194.80 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Function: Output enable
Current - Output High(IOH): 6mA
Series: 74HC Series
Voltage - Supply: 2V~6V
Output Type: Tri-State
Current - Output Low(IOL): 6mA
Number of Bits per Element: 8
Channel Type: Bidirectional
Operating Temperature: -40℃~+125℃
Number of Elements: 1
Quiescent Supply Current: 8uA
Propagation Delay: 9ns@4.5V,15pF

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.504 g

Overview

The SN74HC245 is a 8-bit transceiver with 3-state outputs. The device features an output enable (OE (overline)) and send/receive (DIR) for direction control. A HIGH on OE causes the outputs to assume a high-impedance OFF-state. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of Vcc
