lingxingic

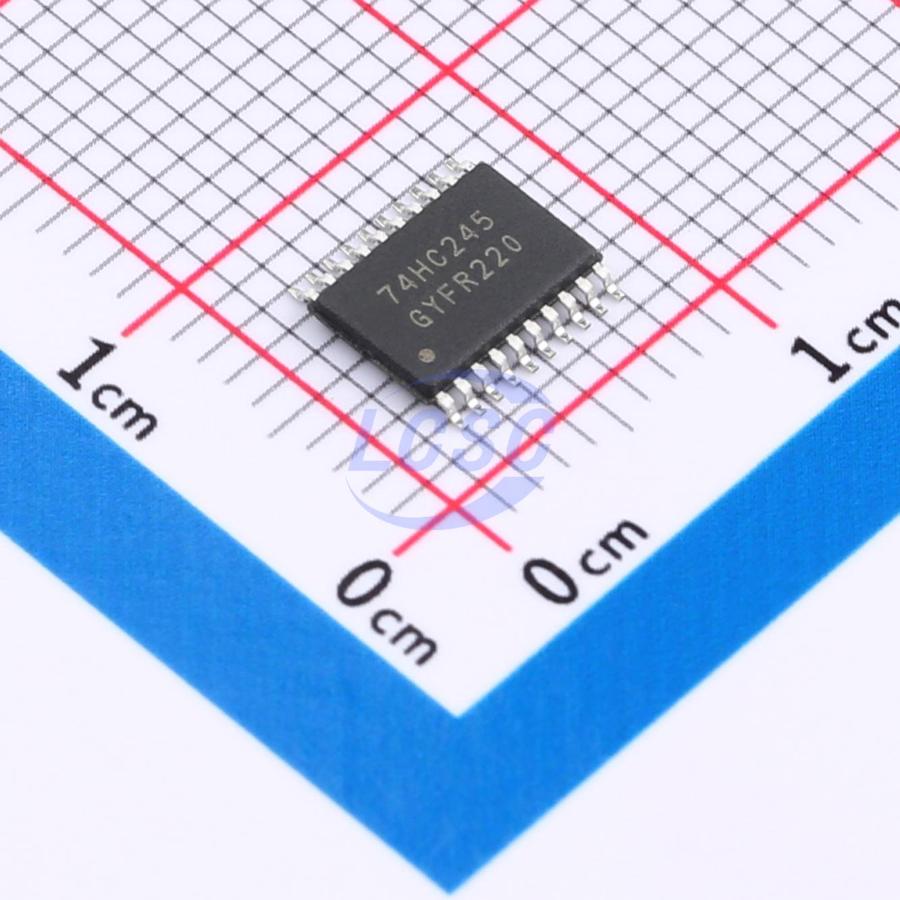

SN74HC245PW(LX)

Transceiver 1 Element 8 Bit per Element Tri-State Output TSSOP-20

TSSOP-20RoHSActive

8-channel bus transceiver with three-state control

Manufacturer: lingxingic
Manufacturer part #: SN74HC245PW(LX)
Store part #: C22374053
Package / case: TSSOP-20
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

26,615 in stock

#C22374053

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹15.98	₹79.90
50+	₹12.91	₹645.50
150+	₹11.36	₹1,704.00
500+	₹10.21	₹5,105.00
2,500+	₹8.67	₹21,675.00
4,000+	₹8.20	₹32,800.00

Quantity (min 5, multiples of 5)

5 × ₹15.98

₹79.90

excl. GST

₹94.28 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

SN74HC245PW(LX)

₹79.90 for 5 + GST

Specifications

Function: Output enable
Current - Output High(IOH): 7.8mA
Series: 74HC
Voltage - Supply: 2V~6V
Output Type: Tri-State
Current - Output Low(IOL): 7.8mA
Number of Bits per Element: 8
Channel Type: Bidirectional
Operating Temperature: -40℃~+125℃
Number of Elements: 1
Quiescent Supply Current: 8uA
Propagation Delay: 9ns@4.5V,15pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.195 g

Overview

The SN74HC/HCT245 is an 8-bit bus transceiver with 3-state outputs. The device features an output enable pin OE and a direction control pin DIR for transmit/receive selection. When OE is high, the outputs enter a high-impedance off state. Input clamp diodes are built in, allowing the input interface to be connected to voltages exceeding VCC through current-limiting resistors.
