lingxingicDatasheet (PDF)

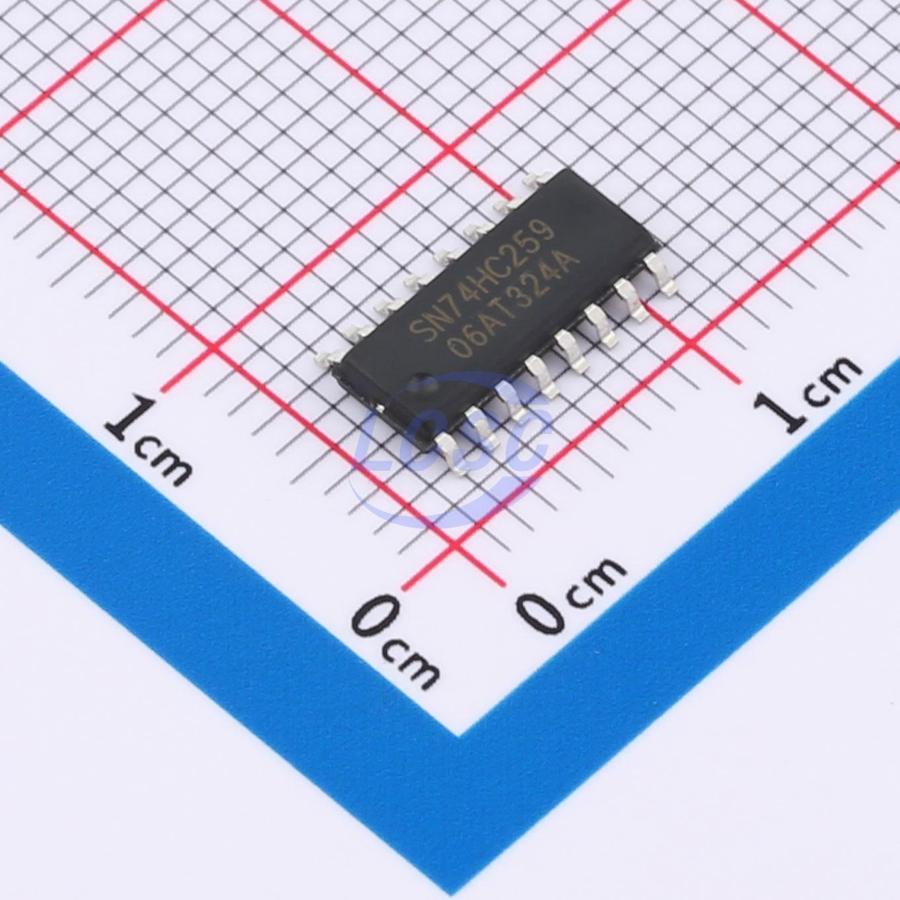

SN74HC259DR(LX)
2V~6V 8 18ns SOP-16 Buffers, Drivers, Receivers, Transceivers
SOP-16RoHSActive
8-bit addressable latch
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74HC259DR(LX)
- Store part #
- C32710652
- Package / case
- SOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,980 in stock
#C32710652
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.40 | ₹92.00 |
| 50+ | ₹16.07 | ₹803.50 |
| 150+ | ₹15.07 | ₹2,260.50 |
| 500+ | ₹13.83 | ₹6,915.00 |
| 2,500+ | ₹13.27 | ₹33,175.00 |
| 4,000+ | ₹12.94 | ₹51,760.00 |
5 × ₹18.40
₹92.00
excl. GST
₹108.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SN74HC259DR(LX)
₹92.00 for 5 + GST
Specifications
- Current - Output High(IOH)
- 5.2mA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Current - Output Low(IOL)
- 5.2mA
- Operating Temperature
- -40℃~+125℃
- Setup Time
- 16ns
- Number of Gates
- 8
- Quiescent Supply Current
- 8uA
- Hold Time
- 0ns
- Propagation Delay
- 18ns
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.269 g
Overview
The SN74HC/HCT259 is an 8-bit addressable latch. The device features four modes of operation. In the addressable latch mode, data on the D input is written into the latch addressed by the inputs A0 to A3. The addressed latch will follow the data input, non-addressed latches will retain their previous states. In memory mode, all latches retain their previous states and are unaffected by the data or address inputs. In the 3-to-8 decoding or demultiplexing mode, the addressed output follows the D input and all other outputs are LOW. In the reset mode, all outputs are forced LOW and unaffected by the data or address inputs. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Key features
- Input levels: For SN74HC259: CMOS level For SN74HCT259: TTL level
- Combined demultiplexer and 8-bit latch
- Serial-to-parallel capability
- Output from each storage bit available
- Random (addressable) data entry
- Easily expandable
- Common reset input
- Useful as a 3-to-8 active HIGH decoder
- Specified from -40℃ to +125℃
- Packaging information: DIP16/SOP16/TSSOP16
