XBLWDatasheet (PDF)

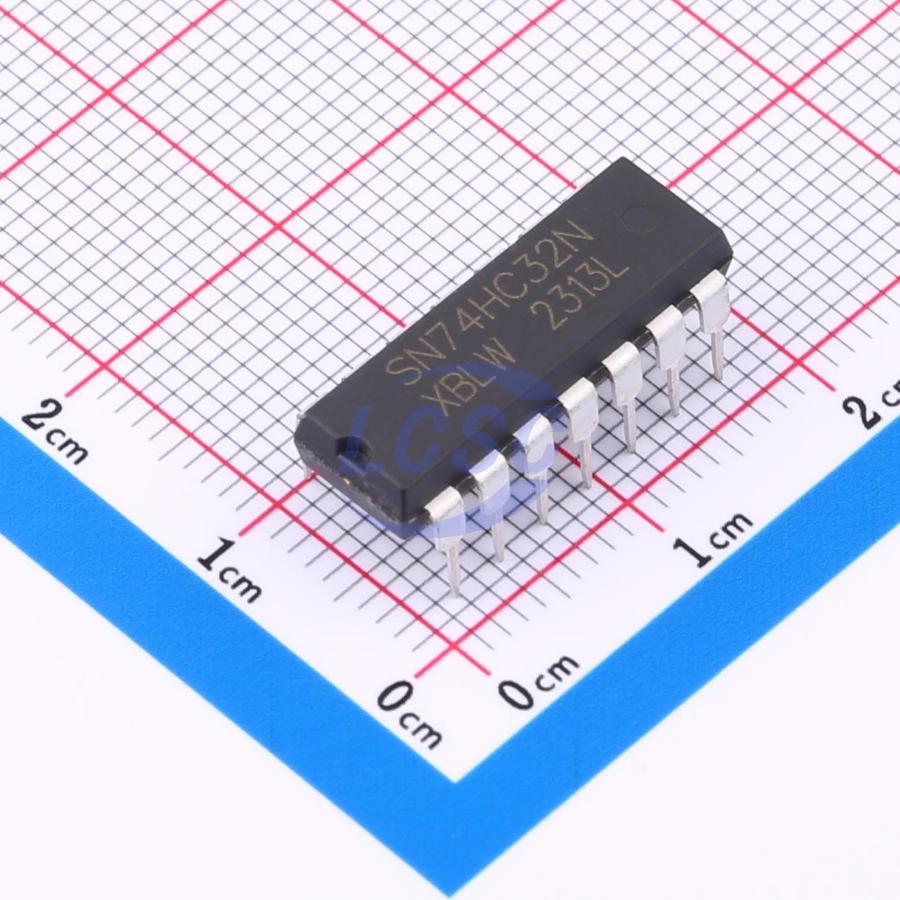

SN74HC32N(XBLW)
2uA 2V~6V 6ns DIP-14 Gates and Inverters RoHS
DIP-14ROHS CompliantActive
Quad 2-input Or Gate
- Manufacturer
- XBLW
- Manufacturer part #
- SN74HC32N(XBLW)
- Store part #
- C18723522
- Package / case
- DIP-14
- Category
- Gates and Inverters
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,080 in stock
#C18723522
Stock & price checked 20 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.21 | ₹111.05 |
| 50+ | ₹17.41 | ₹870.50 |
| 150+ | ₹15.36 | ₹2,304.00 |
| 500+ | ₹12.79 | ₹6,395.00 |
| 2,000+ | ₹11.64 | ₹23,280.00 |
| 5,000+ | ₹10.97 | ₹54,850.00 |
5 × ₹22.21
₹111.05
excl. GST
₹131.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 25 per tube
SN74HC32N(XBLW)
₹111.05 for 5 + GST
Specifications
- Features
- Overvoltage-tolerant input
- Logic Family
- 74HC
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Operating Temperature
- -40℃~+105℃
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Output Logic Level - High
- 4.32V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 2V~6V
- Number of Channels
- 4;2
- Current - Output High(IOH)
- 5.2mA
- Output Logic Level - Low
- 100mV
- Propagation Delay
- 6ns
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.616 g
Overview
The SN74HC32 is a quad 2- input OR gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Applications
- User fewer inputs to monitor error signals
- Combine active- low enable signals
Key features
- Buffered inputs
- Wide operating voltage range: 2 V to 6 V
- Specified from - 40℃ to +125℃
- Packaging information: DIP- 14/SOP- 14/TSSOP- 14
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LS32N(XBLW)#C42395512XBLW · DIP-14 | XBLW | DIP-14 | 2,660 | ₹25.38 · 2,660 in stock | View |
