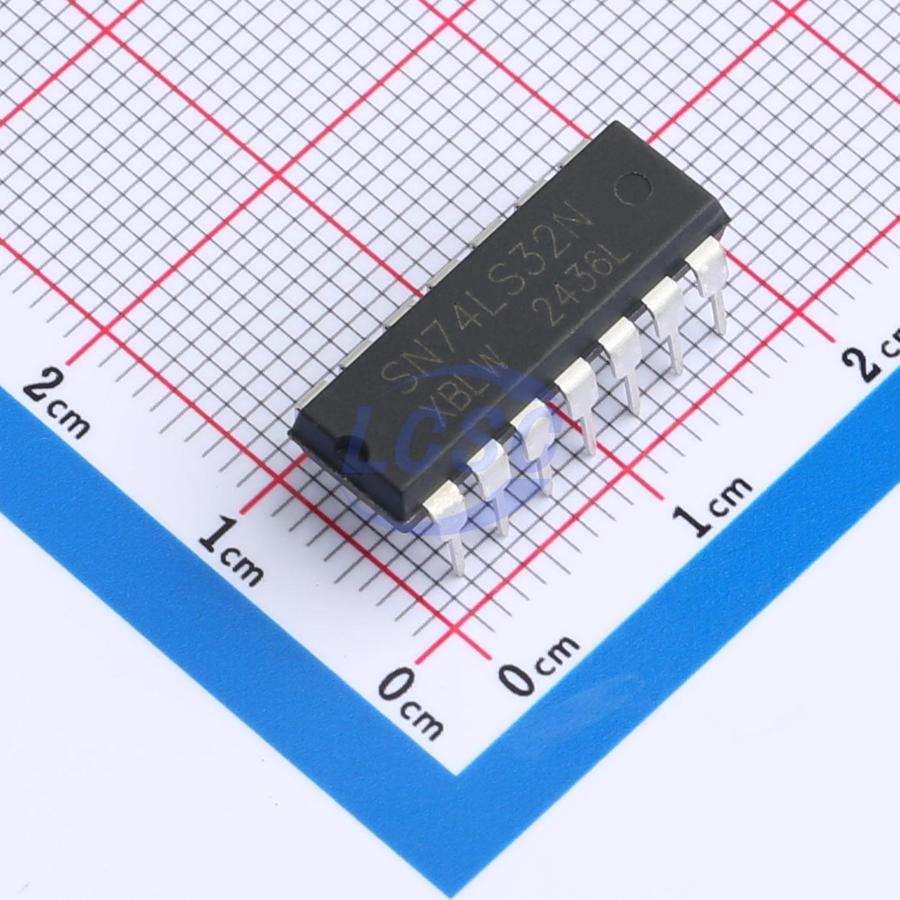

SN74LS32N(XBLW)
2uA 2V~6V 6ns@5V,15pF DIP-14 Gates and Inverters RoHS
DIP-14ROHS CompliantActive
Quad 2-input Or Gate
- Manufacturer
- XBLW
- Manufacturer part #
- SN74LS32N(XBLW)
- Store part #
- C42395512
- Package / case
- DIP-14
- Category
- Gates and Inverters
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,695 in stock
#C42395512
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.38 | ₹126.90 |
| 50+ | ₹19.92 | ₹996.00 |
| 150+ | ₹17.58 | ₹2,637.00 |
| 500+ | ₹14.67 | ₹7,335.00 |
| 2,500+ | ₹13.38 | ₹33,450.00 |
| 5,000+ | ₹12.59 | ₹62,950.00 |
5 × ₹25.38
₹126.90
excl. GST
₹149.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 25 per tube
SN74LS32N(XBLW)
₹126.90 for 5 + GST
Specifications
- Logic Family
- 74LS
- Input Logic Level - Low
- 1.8V
- Input Logic Level - High
- 4.2V
- Operating Temperature
- -20℃~+85℃
- Output Logic Level - High
- 5.34V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Propagation Delay
- 6ns@5V,15pF
- Output Logic Level - Low
- 330mV
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.614 g
Overview
The SN74LS32 is a quad 2-input OR gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of V_CC.
Applications
- User fewer inputs to monitor error signals
- Combine active-low enable signals
Key features
- Buffered inputs
- Wide operating voltage range: 2 V to 6 V
- Specified from -20°C to +85°C
- Packaging information: DIP-14/SOP-14/TSSOP-14
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC32N(XBLW)#C18723522XBLW · DIP-14 | XBLW | DIP-14 | 1,090 | ₹22.21 · 1,090 in stock | View |
