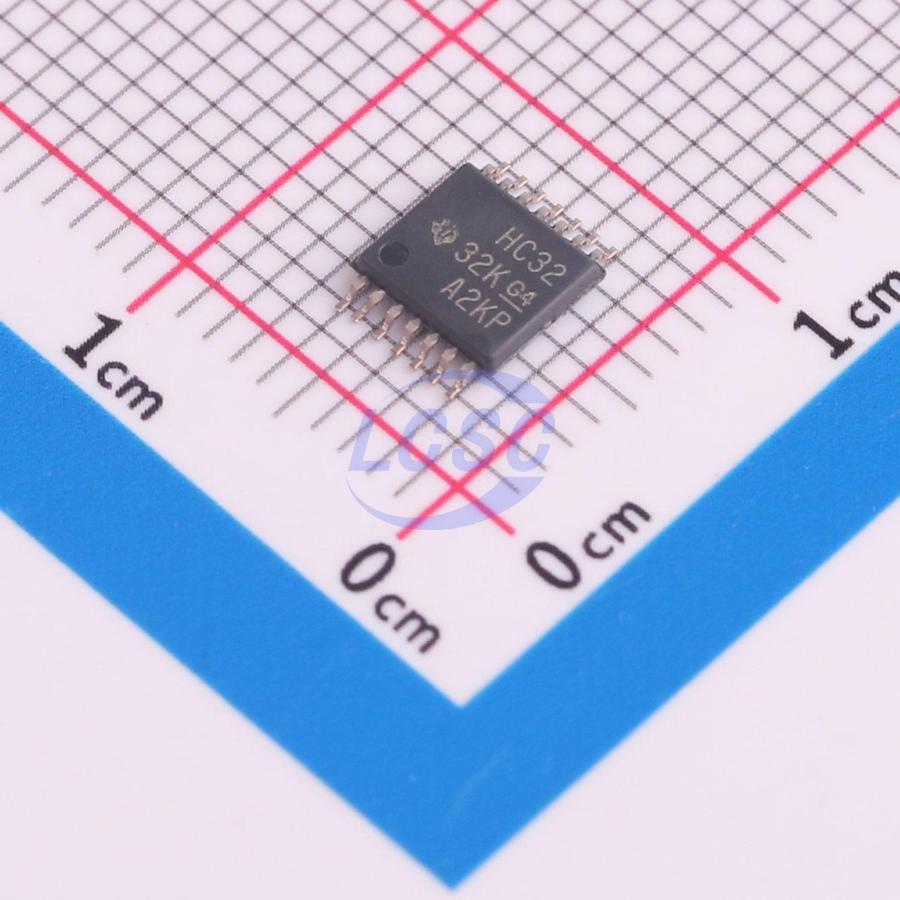

SN74HC32PWR
2uA 2V~6V 17ns@6V,50pF TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive
QUADRUPLE 2-INPUT POSITIVE-OR GATES
- Manufacturer
- TI
- Manufacturer part #
- SN74HC32PWR
- Store part #
- C6840
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,960 in stock
#C6840
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹52.39 | ₹261.95 |
| 50+ | ₹42.80 | ₹2,140.00 |
| 150+ | ₹38.68 | ₹5,802.00 |
| 500+ | ₹33.56 | ₹16,780.00 |
| 2,000+ | ₹29.42 | ₹58,840.00 |
| 4,000+ | ₹28.05 | ₹1,12,200.00 |
5 × ₹52.39
₹261.95
excl. GST
₹309.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HC32PWR
₹261.95 for 5 + GST
Specifications
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Operating Temperature
- -40℃~+85℃
- Logic Family
- 74HC Series
- Output Logic Level - High
- 1.9V~1.998V;4.4V~4.499V;5.9V~5.999V;3.84V;5.34V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 100mV;330mV
- Propagation Delay
- 17ns@6V,50pF
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.204 g
Overview
The 'HC32 devices contain four independent 2- input OR gates. They perform the Boolean function Y = A(overline) • B(overline) or Y = A + B in positive logic.
Key features
- Wide operating voltage range: 2V~6V
- Output drives up to 10 LSTTL loads
- Low power consumption, max supply current Icc = 20μA
- Typical propagation delay tpd = 8ns
- Output drive current ±4mA at 5V
- Max input current = 1μA
- Absolute maximum ratings: supply voltage range -0.5V~7V, input clamp current ±20mA, output clamp current ±20mA, continuous output current ±25mA, continuous current through VCC or GND ±50mA, storage temperature range -65℃~150℃
- Thermal resistance by package: D package 86℃/W, DB package 96℃/W, N package 80℃/W, NS package 76℃/W, PW package 113℃/W
- All unused inputs must be tied to VCC or GND for proper device operation
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| 74HC32PW-Q100,118#C546866Nexperia · TSSOP-14 | Nexperia | TSSOP-14 | 2,000 | ₹34.72 · 2,000 in stock | View | |
 | HG74HC32MT/TR#C53374709HGSEMI · TSSOP-14 | HGSEMI | TSSOP-14 | 2,015 | ₹15.24 · 2,015 in stock | View |
 | 74HC32PW,118#C282335Nexperia · TSSOP-14 | Nexperia | TSSOP-14 | 42,055 | ₹20.59 · 42,055 in stock | View |
 | 74HC32T14-13#C842435DIODES · TSSOP-14 | DIODES | TSSOP-14 | 335 | ₹21.83 · 335 in stock | View |
| SN74HCS32QPWRQ1#C2872372TI · TSSOP-14 | TI | TSSOP-14 | On request | ₹150.81 · 0 in stock | View | |
