TIDatasheet (PDF)

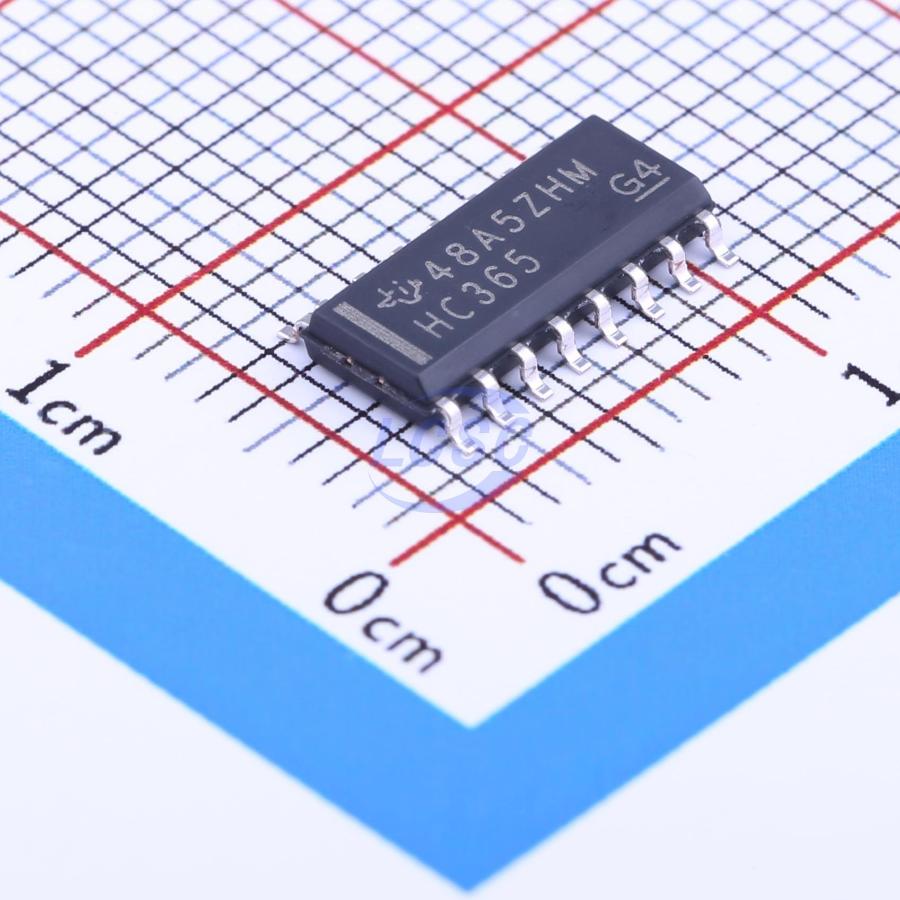

SN74HC365DR
Buffer Driver 1 Element 6 Bit per Element Tri-State Output SOIC-16
SOIC-16ROHS3 CompliantActive
HEX BUFFERS AND LINE DRIVERS WITH 3-STATE OUTPUTS
- Manufacturer
- TI
- Manufacturer part #
- SN74HC365DR
- Store part #
- C6841
- Package / case
- SOIC-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,925 in stock
#C6841
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹64.24 | ₹321.20 |
| 50+ | ₹50.88 | ₹2,544.00 |
| 150+ | ₹45.17 | ₹6,775.50 |
| 500+ | ₹35.87 | ₹17,935.00 |
| 2,500+ | ₹32.69 | ₹81,725.00 |
| 5,000+ | ₹30.79 | ₹1,53,950.00 |
5 × ₹64.24
₹321.20
excl. GST
₹379.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HC365DR
₹321.20 for 5 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 7.8mA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 7.8mA
- Number of Bits per Element
- 6
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 80uA
- Propagation Delay
- 19ns@4.5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.296 g
Overview
These hex buffers and line drivers are designed to improve the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented transceivers. The HC365 device contains six independent buffers/drivers with dual gated output-enable (OE1 and OE2) inputs. When both OE1 and OE2 are LOW, the device propagates noninverting data from the A inputs to the Y outputs; if either or both output enables are HIGH, the outputs are in the high-impedance state.
Applications
- Tri-state memory address driver
- Clock driver
- Bus-oriented receiver
- Bus-oriented transmitter
Key features
- Operating voltage range: 2 V to 6 V
- High-current 3-state outputs for bus driving and buffered memory address registers, driving up to 15 LSTTL loads
- Non-inverting outputs
- Low power consumption, maximum Icc of 80 μA
- Typical tpd of 10 ns
- Output drive of ±6 mA at 5 V
- Maximum input current of 1 μA
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LS367DR(LX)#C52097913lingxingic · SOP-16 | lingxingic | SOP-16 | 233 | ₹83.88 · 233 in stock | View |
 | AiP74HC366SA16.TR#C52120892Wuxi I-core Elec · SOP-16 | Wuxi I-core Elec | SOP-16 | 500 | ₹46.65 · 500 in stock | View |
 | 74HC366D,653#C5633Nexperia · SOIC-16 | Nexperia | SOIC-16 | 7 | ₹76.83 · 7 in stock | View |
 | SN74HC365DR(LX)#C52261120lingxingic · SOP-16 | lingxingic | SOP-16 | 95 | ₹29.89 · 95 in stock | View |
 | CD74HC366QDRQ1#C2675803TI · SOIC-16 | TI | SOIC-16 | 69 | ₹56.85 · 69 in stock | View |
