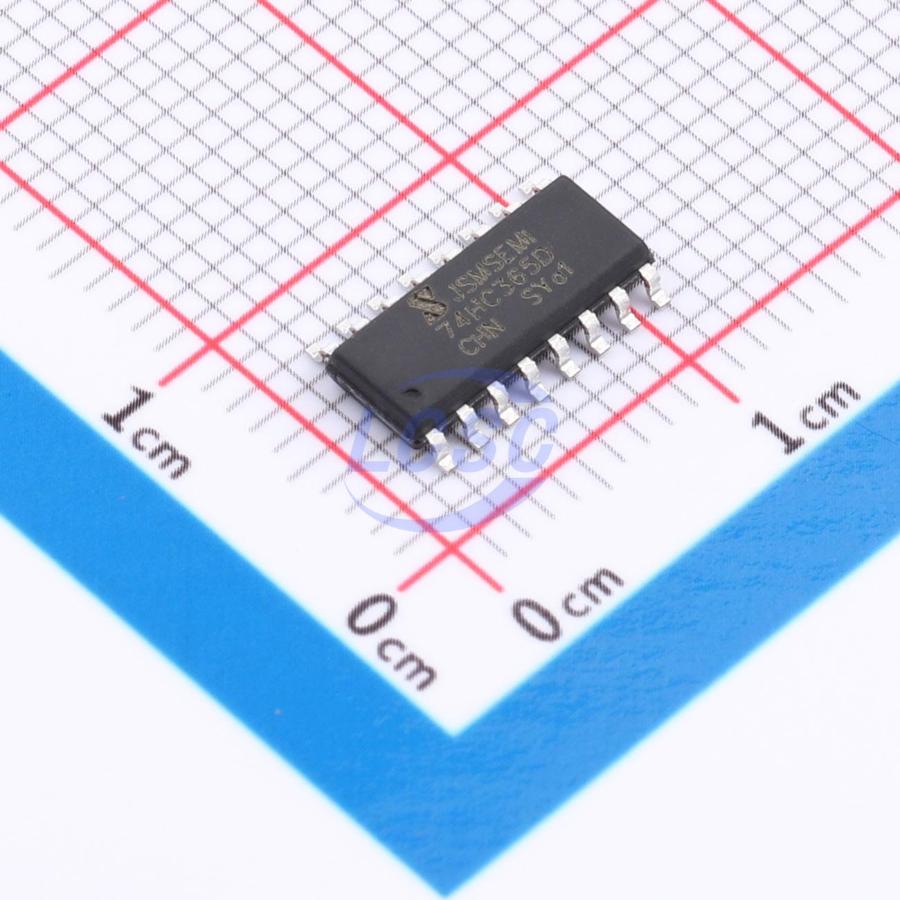

JSMSEMI

SN74HC365DR-JSM

2V~6V 6 1 11ns@4.5V,50pF SOP-16 Buffers, Drivers, Receivers, Transceivers RoHS

SOP-16ROHS CompliantActive

Manufacturer: JSMSEMI
Manufacturer part #: SN74HC365DR-JSM
Store part #: C53114296
Package / case: SOP-16
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,190 in stock

#C53114296

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
5+	₹29.28	₹146.40
50+	₹23.17	₹1,158.50
150+	₹20.55	₹3,082.50
500+	₹17.28	₹8,640.00
2,500+	₹15.82	₹39,550.00
5,000+	₹14.94	₹74,700.00

Quantity (min 5, multiples of 5)

5 × ₹29.28

₹146.40

excl. GST

₹172.75 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

SN74HC365DR-JSM

₹146.40 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Series: 74HC
Voltage - Supply: 2V~6V
Output Type: Tri-State
Number of Bits per Element: 6
Channel Type: Unidirectional
Number of Elements: 1
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 160uA
Propagation Delay: 11ns@4.5V,50pF

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.295 g

Overview

SN74HC365DR-JSM is a hex buffer/line driver with 3-state outputs controlled by output enable inputs. When the output enable is high, the outputs enter a high-impedance off-state. Input clamping diodes are integrated, allowing input signals exceeding ΔVCC to be accommodated through the use of current-limiting resistors.
