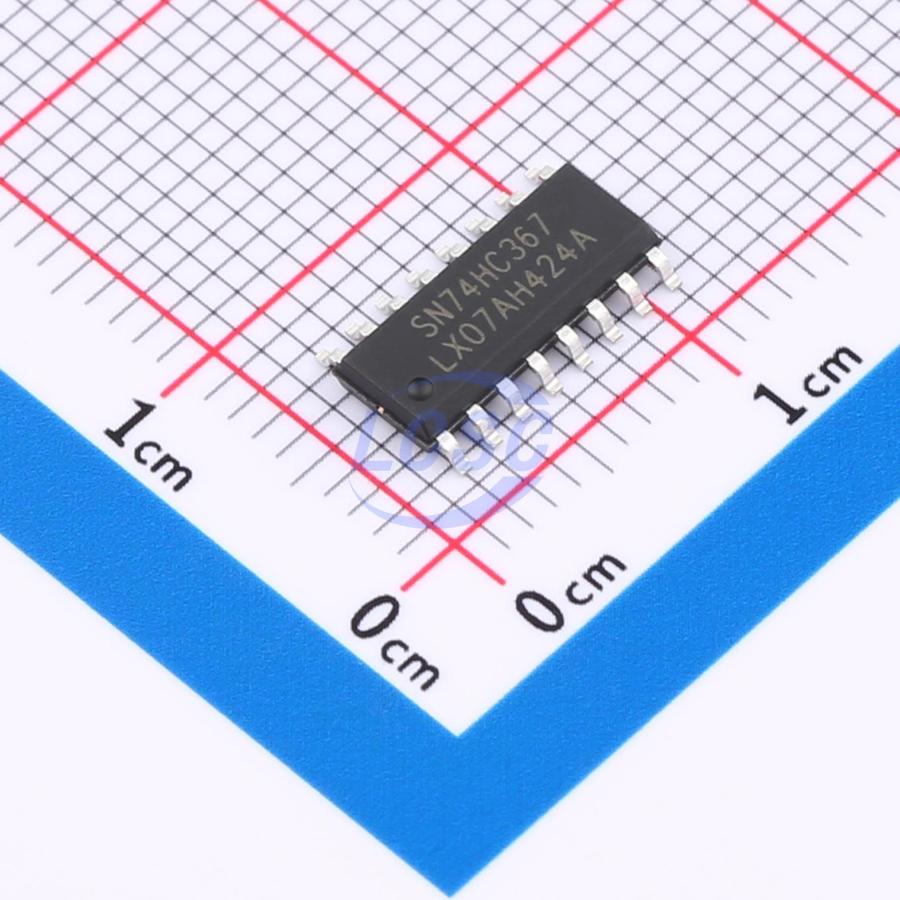

lingxingic

SN74HC367DR(LX)

2V~6V 2 10ns@4.5V,50pF SOP-16 Buffers, Drivers, Receivers, Transceivers

SOP-16RoHSActive

Hex Buffer/Line Driver; 3-state

Manufacturer: lingxingic
Manufacturer part #: SN74HC367DR(LX)
Store part #: C32710650
Package / case: SOP-16
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,650 in stock

#C32710650

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹31.21	₹156.05
50+	₹24.87	₹1,243.50
150+	₹22.16	₹3,324.00
500+	₹18.77	₹9,385.00
2,500+	₹17.27	₹43,175.00
4,000+	₹16.35	₹65,400.00

Quantity (min 5, multiples of 5)

5 × ₹31.21

₹156.05

excl. GST

₹184.14 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

SN74HC367DR(LX)

₹156.05 for 5 + GST

Specifications

Function: Output enable
Current - Output High(IOH): 7.8mA
Series: 74HC
Voltage - Supply: 2V~6V
Current - Output Low(IOL): 7.8mA
Output Type: Tri-State
Number of Bits per Element: 2;4
Channel Type: Unidirectional
Number of Elements: 2
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 8uA
Propagation Delay: 10ns@4.5V,50pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.271 g

Overview

The SN74HC/HCT367 is a hex buffer/line driver with 3-state outputs controlled by the output enable inputs (nOE). A HIGH on nOE causes the outputs to assume a high impedance OFF-state. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
