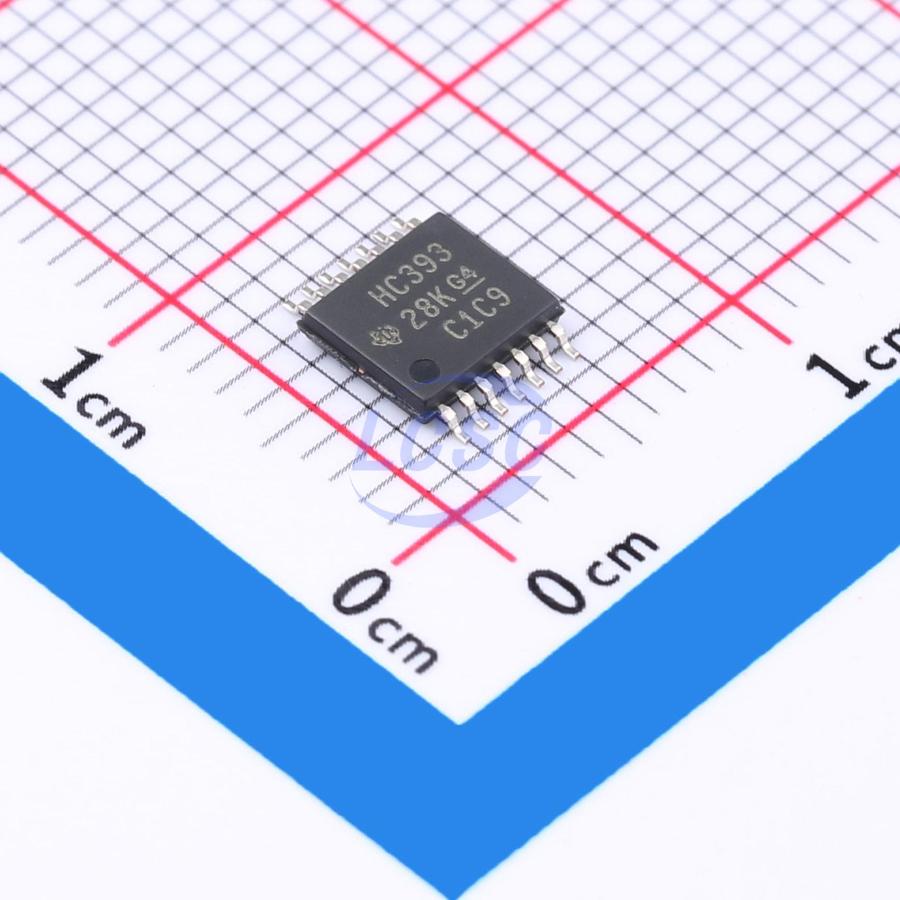

SN74HC393PWR

Wide operating voltage range of 2V to 6V; output can drive up to 10 LSTTL loads; low power consumption: 80μA maximum ICC; typical tpd = 13ns; output drive of ±4mA at 5V; low input current, 1μA maximum; dual 4-bit binary counters with separate clocks; direct clear for each 4-bit counter; reduces counter package count by 50%, significantly improving system density. The HC393 device contains eight flip-flops and additional gating to implement two independent 4-bit counters in a single package.

Key features

• Wide Operating Voltage Range of δ₂V for all cases to 6 V
• Outputs Can Drive Up To 10 LSTTL Loads
• Low Power Consumption, 80-μA Max ICC
• Typical propagation delay time (tₚd) = 13 ns
• ±4-mA Output Drive at 5 V
• Low Input Current of 1 μA Max
• Dual 4-Bit Binary Counters With Individual Clocks
• Direct Clear for Each 4-Bit Counter
• Can Significantly Improve System Densities by Reducing Counter Package Count by 50 Percent
