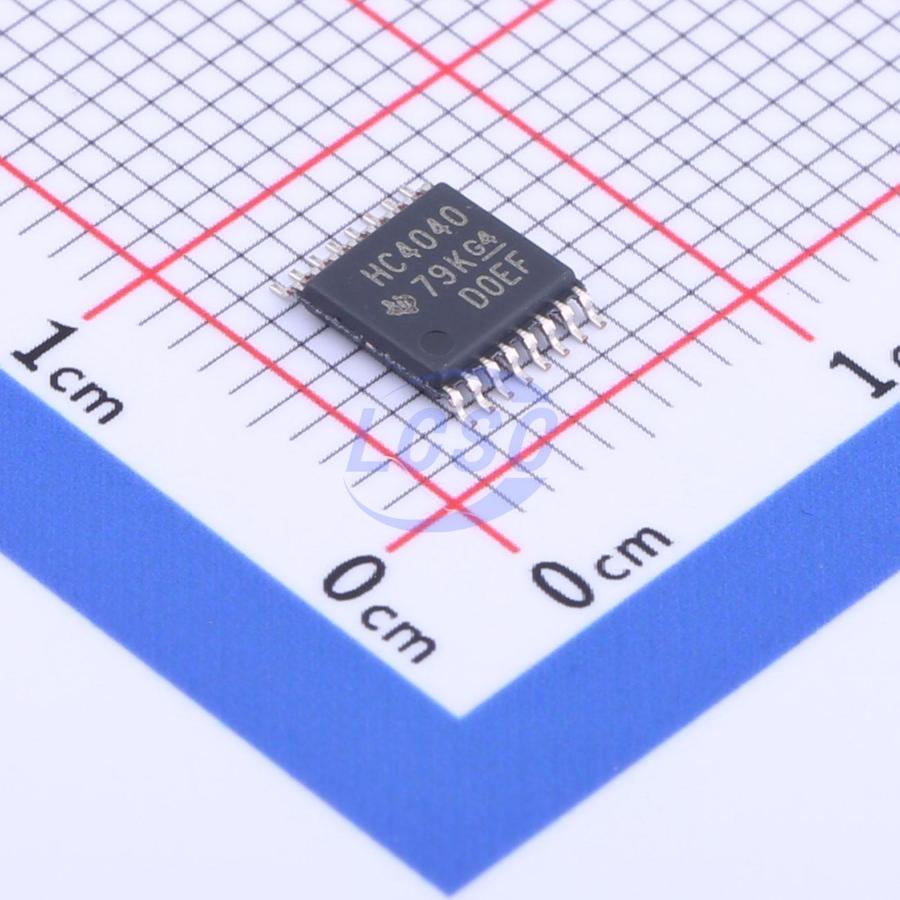

SN74HC4040PWR
Falling Edge 1 33MHz TSSOP-16 Counters, Dividers RoHS
12-bit asynchronous binary counter
- Manufacturer
- TI
- Manufacturer part #
- SN74HC4040PWR
- Store part #
- C2682105
- Package / case
- TSSOP-16
- Category
- Counters, Dividers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,233 in stock
#C2682105
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.42 | ₹55.42 |
| 10+ | ₹43.46 | ₹434.60 |
| 30+ | ₹37.60 | ₹1,128.00 |
| 100+ | ₹32.60 | ₹3,260.00 |
| 500+ | ₹31.08 | ₹15,540.00 |
| 1,000+ | ₹30.22 | ₹30,220.00 |
1 × ₹55.42
₹55.42
excl. GST
₹65.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HC4040PWR
₹55.42 for 1 + GST
Specifications
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Trigger Type
- Falling Edge
- Timing
- Asynchronous
- Operating Temperature
- -40℃~+85℃
- Reset
- Asynchronous
- Number of Elements
- 1
- Propagation Delay
- 12ns
- Count Rate
- 33MHz
- Features
- Reset function
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.183 g
Overview
- Wide operating voltage range: 2V to 6V - Output drives up to 10 LSTTL loads - Low power consumption, ICC max = 80 μA - tpd typical = 12 ns - ±4 mA output drive (at 5V) - Low input current, max 1 μA - The 'HC4040 device is a 12-stage asynchronous binary counter with outputs available from all stages. Drive the clear (CLR) input high to asynchronously clear the counter and reset all outputs low. The count advances on the high-to-low transition of the clock (CLK) input.
Applications
- Delay circuits
- Counter control
- Frequency divider circuits
