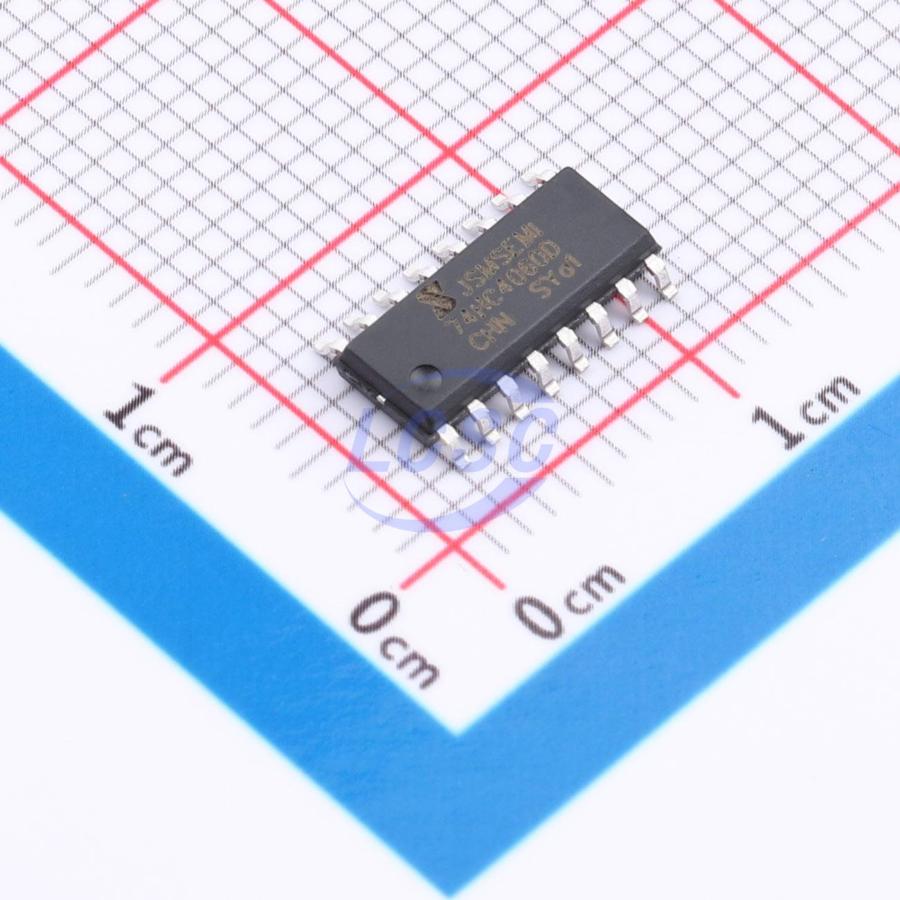

SN74HC4060DR-JSM
Falling Edge 7MHz SOP-16 Counters, Dividers RoHS
- Manufacturer
- JSMSEMI
- Manufacturer part #
- SN74HC4060DR-JSM
- Store part #
- C53114321
- Package / case
- SOP-16
- Category
- Counters, Dividers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,395 in stock
#C53114321
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.21 | ₹106.05 |
| 50+ | ₹16.78 | ₹839.00 |
| 150+ | ₹14.88 | ₹2,232.00 |
| 500+ | ₹12.52 | ₹6,260.00 |
| 2,500+ | ₹11.46 | ₹28,650.00 |
| 5,000+ | ₹10.82 | ₹54,100.00 |
5 × ₹21.21
₹106.05
excl. GST
₹125.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HC4060DR-JSM
₹106.05 for 5 + GST
Specifications
- Logic Family
- 74HC
- Voltage - Supply
- 3V~15V
- Trigger Type
- Falling Edge
- Timing
- Asynchronous
- Operating Temperature
- -40℃~+125℃
- Reset
- Asynchronous
- Propagation Delay
- 100ns@15V,50pF
- Count Rate
- 7MHz
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.293 g
Overview
The 74HC4060 is a 14-stage ripple-carry binary counter/divider with an integrated oscillator, featuring three oscillator terminals (RS, REXT, and CEXT), ten buffered outputs (Q3 through Q9 and Q11 through Q13), and an asynchronous master reset input (MR). The oscillator configuration allows RC or crystal oscillator circuits to be designed. The oscillator can be replaced by an external clock signal at the RS input. The counter advances on the falling edge of RS. A HIGH on MR resets the counter (Q3 through Q9 and Q11 through Q13 outputs LOW), independent of all other input conditions. The recommended operating supply voltage range is 3V to 15V (with respect to Vss, typically ground). Unused inputs must be connected to VDD, Vss, or another input.
Key features
- Wide supply voltage range: 3V to 15V
- Tolerates slow clock rise and fall times
- Fully static operation
- 5V, 10V, and 15V parametric specifications available
- Standardized symmetrical output characteristics
- ESD protection on inputs and outputs
- Operating temperature range: -40℃ to +125℃
- Package options: DIP16, SOP16, TSSOP16
