lingxingic

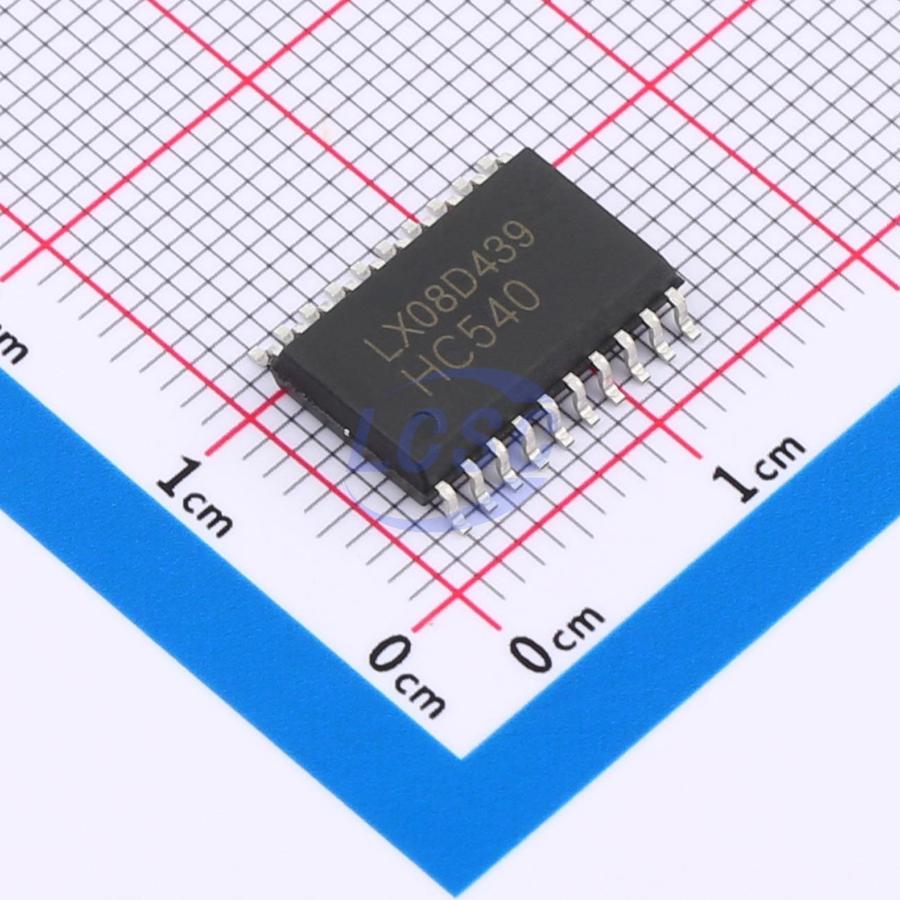

SN74HC540DR(LX)

Buffer Driver Tri-State Output SOP-20

SOP-20RoHSActive

8-channel buffer/line driver (inverting) with three-state control output

Manufacturer: lingxingic
Manufacturer part #: SN74HC540DR(LX)
Store part #: C41430938
Package / case: SOP-20
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,075 in stock

#C41430938

Stock & price checked 24 h ago

Quantity	Unit price	Pack price
5+	₹38.84	₹194.20
50+	₹31.20	₹1,560.00
150+	₹27.92	₹4,188.00
500+	₹23.83	₹11,915.00
2,000+	₹20.53	₹41,060.00
4,000+	₹19.43	₹77,720.00

Quantity (min 5, multiples of 5)

5 × ₹38.84

₹194.20

excl. GST

₹229.16 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

SN74HC540DR(LX)

₹194.20 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Function: Output enable
Current - Output High(IOH): 7.8mA
Series: 74HC
Voltage - Supply: 2V~6V
Current - Output Low(IOL): 7.8mA
Output Type: Tri-State
Number of Bits per Element: 8
Channel Type: Unidirectional
Operating Temperature: -40℃~+125℃
Number of Elements: 1
Quiescent Supply Current: 8uA
Propagation Delay: 11ns@4.5V,50pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.769 g

Overview

SN74HC/HCT540 is an 8-bit inverting buffer/line driver with 3-state outputs. The device features two output enables (OE1 and OE2). A high level on OEn causes the outputs to assume a high-impedance state. The inputs include clamp diodes, allowing current-limiting resistors to be used for interfacing inputs to voltages exceeding VCC.
