TIDatasheet (PDF)

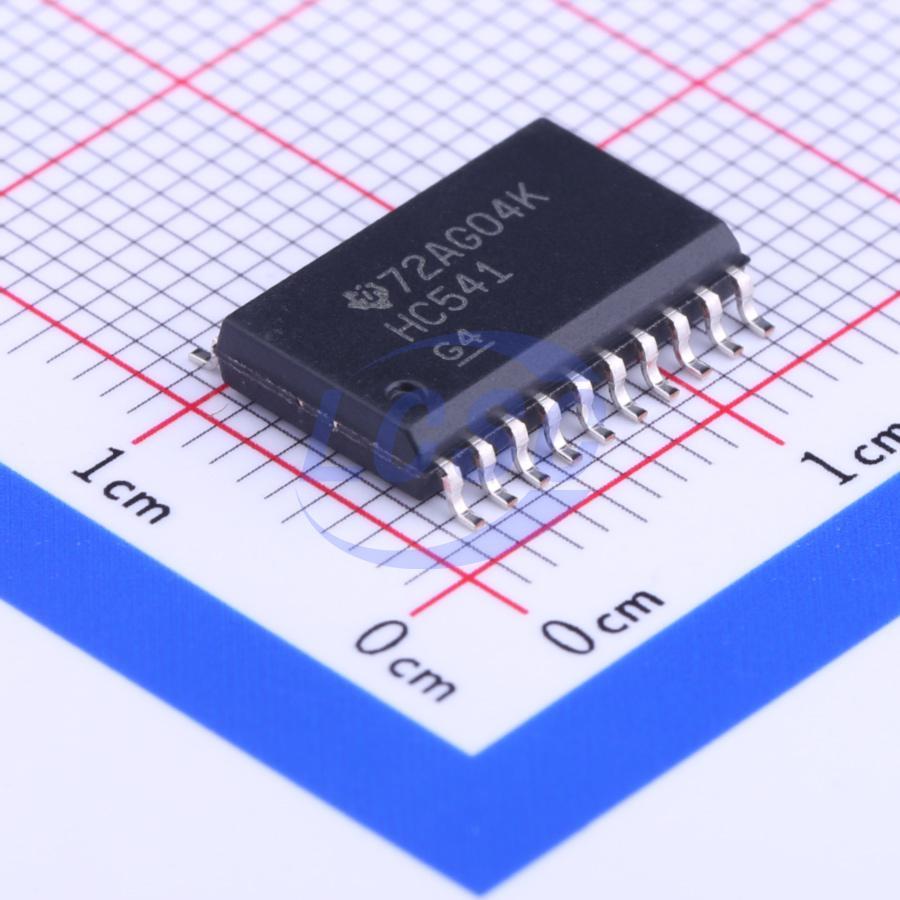

SN74HC541DWR
2V~6V 8 1 23ns@4.5V,50pF SOIC-20-300mil Buffers, Drivers, Receivers, Transceivers RoHS
SOIC-20-300milROHS3 CompliantActive
OCTAL BUFFERS AND LINE DRIVERS WITH 3-STATE OUTPUTS
- Manufacturer
- TI
- Manufacturer part #
- SN74HC541DWR
- Store part #
- C6757
- Package / case
- SOIC-20-300mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,030 in stock
#C6757
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹155.80 | ₹155.80 |
| 10+ | ₹126.47 | ₹1,264.70 |
| 30+ | ₹111.90 | ₹3,357.00 |
| 100+ | ₹97.35 | ₹9,735.00 |
| 500+ | ₹79.96 | ₹39,980.00 |
| 1,000+ | ₹75.62 | ₹75,620.00 |
1 × ₹155.80
₹155.80
excl. GST
₹183.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HC541DWR
₹155.80 for 1 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 7.8mA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 7.8mA
- Number of Bits per Element
- 8
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 80uA
- Propagation Delay
- 23ns@4.5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.747 g
Overview
These octal buffers and line drivers feature the performance of the 'HC240 devices and a pinout with inputs and outputs on opposite sides of the package. This arrangement greatly facilitates printed circuit board layout. The 3 - state outputs are controlled by a two - input NOR gate. If either output - enable (OE1 or OE2) input is high, all eight outputs are in the high - impedance state. The 'HC541 devices provide true data at the outputs.
Applications
- Bus driving
- Signal buffering and line driving
Key features
- Wide Operating Voltage Range of 2 V to 6 V
- High - Current 3 - State Outputs Drive Bus Lines Directly or Up To 15 LSTTL Loads
- Low Power Consumption, 80 - μA Max ICC
- Typical tpd = 10 ns
- ±6 - mA Output Drive at 5 V
- Low Input Current of 1 μA Max
- Data Flow - Through Pinout (All Inputs on Opposite Side From Outputs)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| MC74HC540ADWG#C906722onsemi · SOIC-20-300mil | onsemi | SOIC-20-300mil | 99 | ₹141.90 · 99 in stock | View | |
 | 74HC7540D,118#C547157Nexperia · SO-20-300mil | Nexperia | SO-20-300mil | 3 | ₹187.31 · 3 in stock | View |
 | 74HC7541D,118#C547161Nexperia · SO-20-300mil | Nexperia | SO-20-300mil | 1 | ₹277.79 · 1 in stock | View |
 | AIP74HC541SA20.TR#C3019189Wuxi I-core Elec · SOP-20-300mil | Wuxi I-core Elec | SOP-20-300mil | 205 | ₹49.88 · 205 in stock | View |
 | AIP74HC540SA20.TB#C3019190Wuxi I-core Elec · SOP-20-300mil | Wuxi I-core Elec | SOP-20-300mil | 210 | ₹60.55 · 210 in stock | View |
