lingxingic

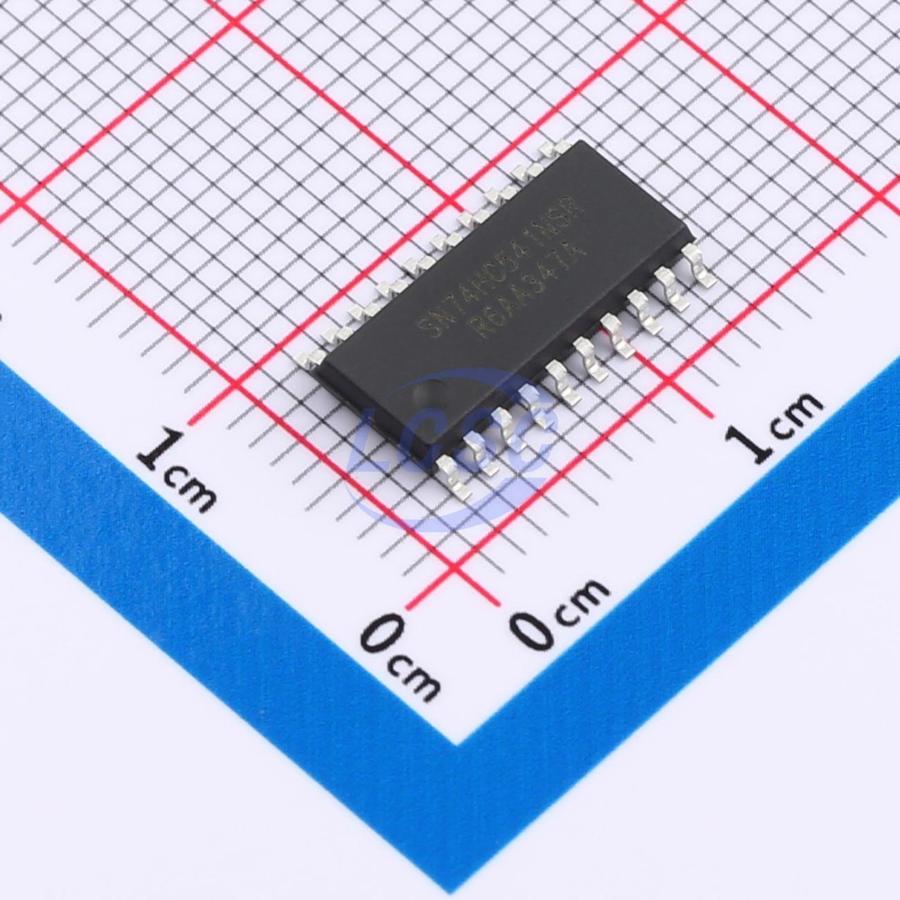

SN74HC541NSR(LX)

Buffer Driver 1 Element 8 Bit per Element Tri-State Output SOIC-20-208mil

SOIC-20-208milRoHSActive

8-channel buffer/line driver with three-state control

Manufacturer: lingxingic
Manufacturer part #: SN74HC541NSR(LX)
Store part #: C22374068
Package / case: SOIC-20-208mil
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,990 in stock

#C22374068

Stock & price checked 31 h ago

Quantity	Unit price	Pack price
5+	₹49.39	₹246.95
50+	₹38.80	₹1,940.00
150+	₹34.27	₹5,140.50
500+	₹28.60	₹14,300.00
2,000+	₹26.09	₹52,180.00
4,000+	₹24.58	₹98,320.00

Quantity (min 5, multiples of 5)

5 × ₹49.39

₹246.95

excl. GST

₹291.40 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

SN74HC541NSR(LX)

₹246.95 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Function: Output enable
Current - Output High(IOH): 7.8mA
Series: 74HC
Voltage - Supply: 2V~6V
Output Type: Tri-State
Current - Output Low(IOL): 7.8mA
Number of Bits per Element: 8
Channel Type: Unidirectional
Operating Temperature: -40℃~+125℃
Number of Elements: 1
Quiescent Supply Current: 8uA
Propagation Delay: 12ns@4.5V,50pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.558 g

Overview

The SN74HC/HCT541 is an 8-bit non-inverting buffer/line driver with 3-state outputs. The device features two output enable controls (OE1 and OE2). A high level on OEn forces the outputs into a high-impedance state. Input clamping diodes are built in, allowing current-limiting resistors to interface the inputs to voltages exceeding VCC.
