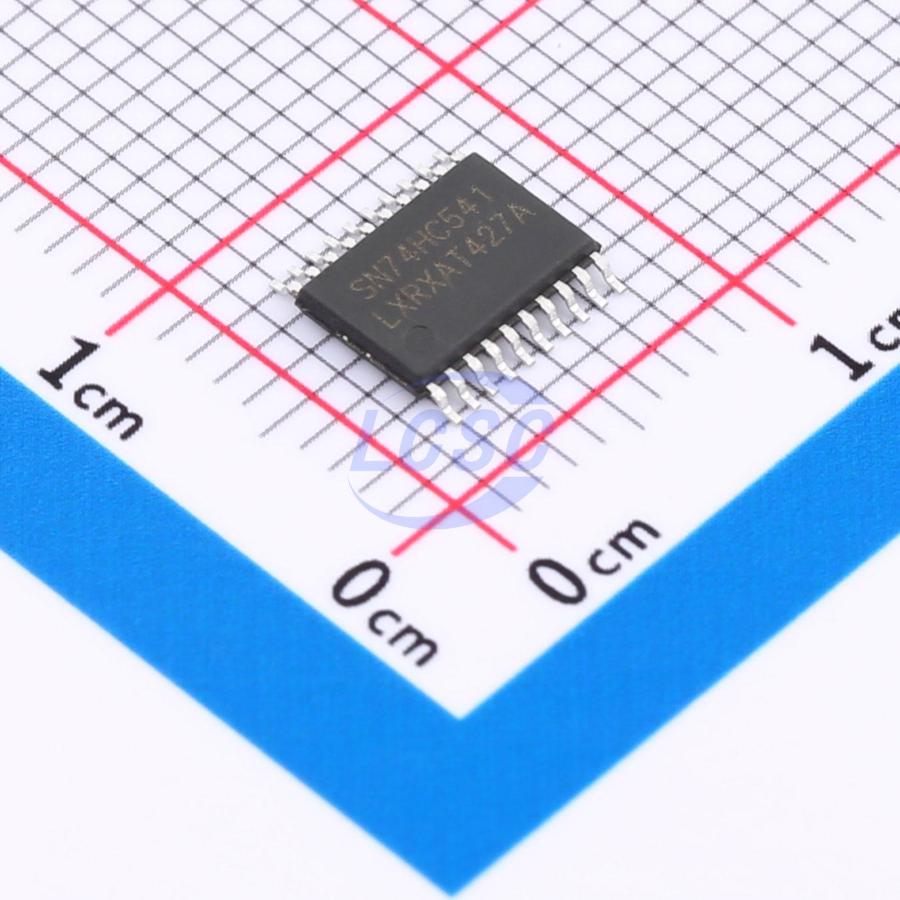

SN74HC541PW(LX)

Buffer Driver 1 Element 8 Bit per Element Tri-State Output TSSOP-20

TSSOP-20RoHSActive

8-channel buffer/line driver with three-state control

Manufacturer: lingxingic
Manufacturer part #: SN74HC541PW(LX)
Store part #: C45384750
Package / case: TSSOP-20
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,815 in stock

#C45384750

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹29.37	₹146.85
50+	₹22.82	₹1,141.00
150+	₹20.00	₹3,000.00
500+	₹16.50	₹8,250.00
2,500+	₹15.47	₹38,675.00
4,000+	₹14.53	₹58,120.00

Quantity (min 5, multiples of 5)

5 × ₹29.37

₹146.85

excl. GST

₹173.28 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

SN74HC541PW(LX)

₹146.85 for 5 + GST

Specifications

Function: Output enable
Current - Output High(IOH): 6mA
Series: 74HC
Voltage - Supply: 2V~6V
Current - Output Low(IOL): 6mA
Output Type: Tri-State
Number of Bits per Element: 8
Channel Type: Unidirectional
Operating Temperature: -40℃~+125℃
Number of Elements: 1
Quiescent Supply Current: 8uA
Propagation Delay: 12ns@4.5V,50pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.196 g

Overview

The SN74HC/HCT541 is an 8-bit non-inverting buffer/line driver with 3-state outputs. The device features two output enable controls (OE1 and OE2). A high level on OEn causes the outputs to assume a high-impedance state. Input clamping diodes are provided to enable the use of current-limiting resistors to interface inputs to voltages exceeding VCC.
